Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of optical fiber 1x4 plc splitter in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Optical Fiber 1x4 PLC Splitter
1x4 PLC Splitter is fabricated using silica optical waveguide technology to distribute the optical signals to 4 signals. It's widely used in PON, ODN, FTTX point to connect between termination device and central office to achieve the signal splitter.
| Type | 1x4 |
| Operating wavelength(nm) | 1260-1650 |
| Insertion loss (dB) | Typical7.2 |
| Maximum | 7.5 |
| Uniformity (dB) | Typical0.5 |
| Maximum | 0.6 |
| Polarization Dependent Loss (dB) | Typical0.1 |
| Maximum | 0.15 |
| Wavelength dependent loss (dB) | Typical0.1 |
| Maximum | 0.3 |
| Return loss (dB) | Minimum 55/50 |
| Directivity (dB) | Minimum 55 |
| Operating temperature (℃) | -20 to 85 |
| Storage temperature (℃) | -40 to 85 |
| Optical fiber type | SMF-28 Or customer required |
| Optical fiber length (m) | 1 or customize |
The inner structure of the PLC Splitter
PLC Splitter is one of the most important passive components in the optical fiber link. It is an optical fiber splicing device with many terminals and many output terminals. Among them, the design and assembly of the three most important components, the input, output and chip of the optical fiber array, play an important role in the stable and normal operation of the PLC Splitter.
Some advantages of our PLC Splitter
Corning/YOFC Fiber(high standard)
Compact design to save space

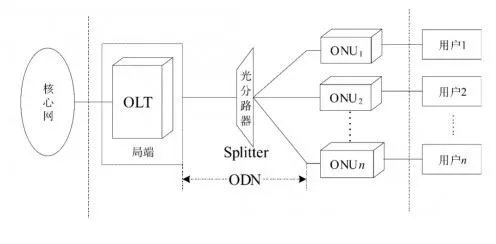

Average splitting power
Scenes of application
FTTH Networks
CATV Links

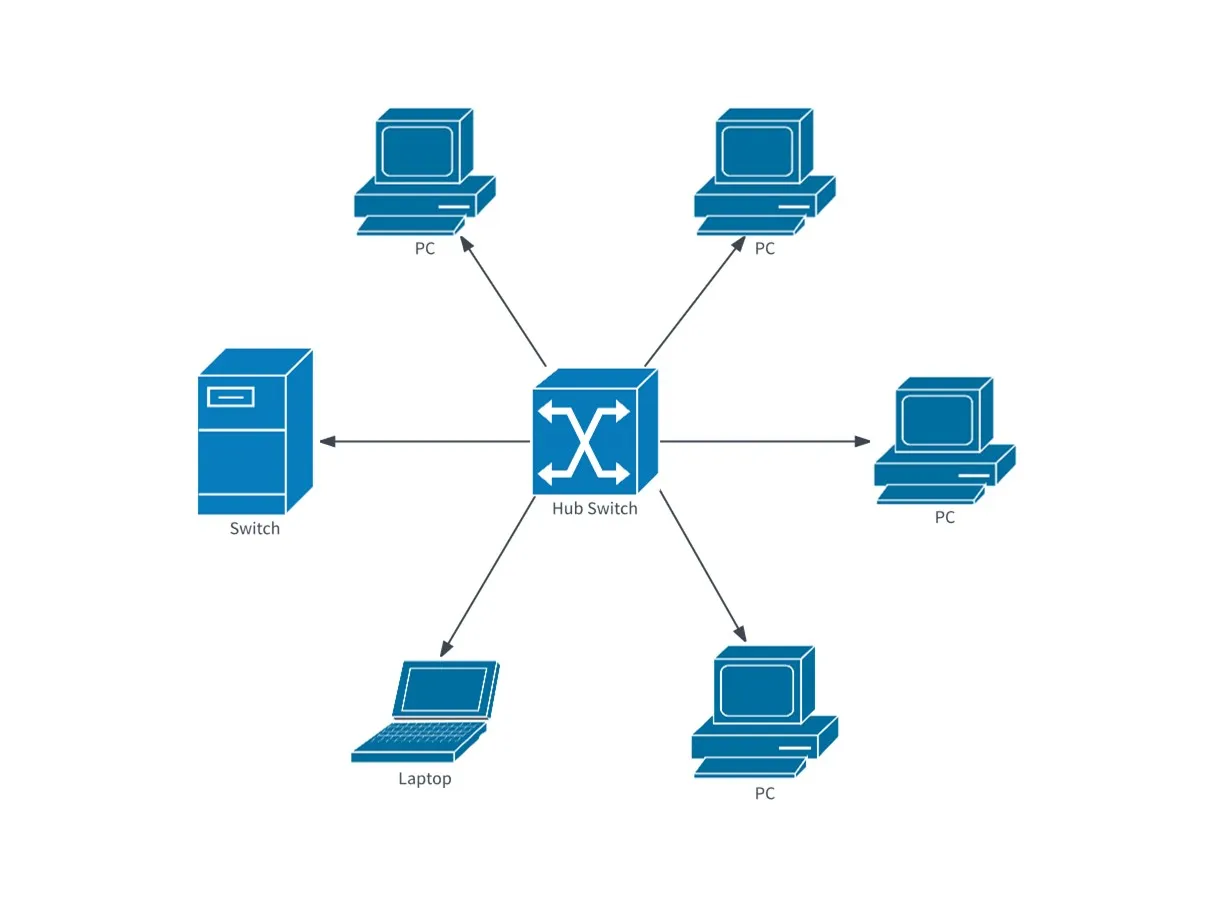

LAN Networks
Strictly tested before delivery

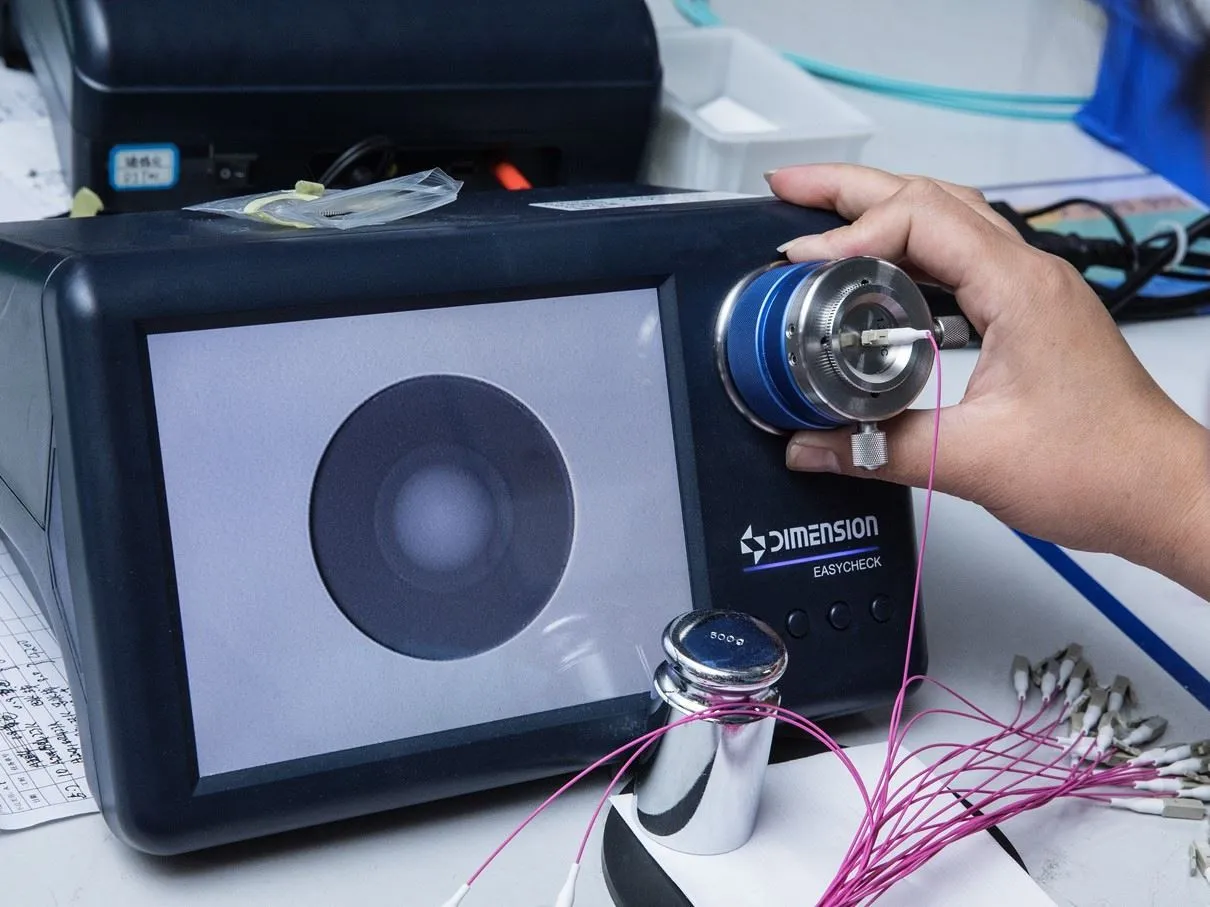

End surface test

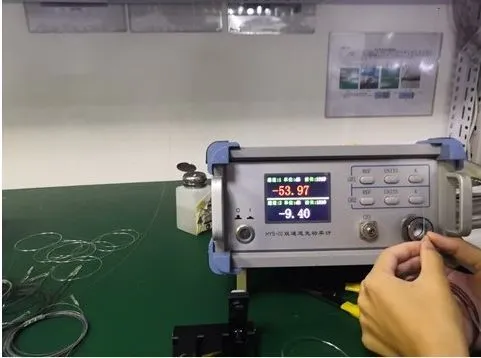

IL and RL Test
Temperature test
Types of our certificates
CE

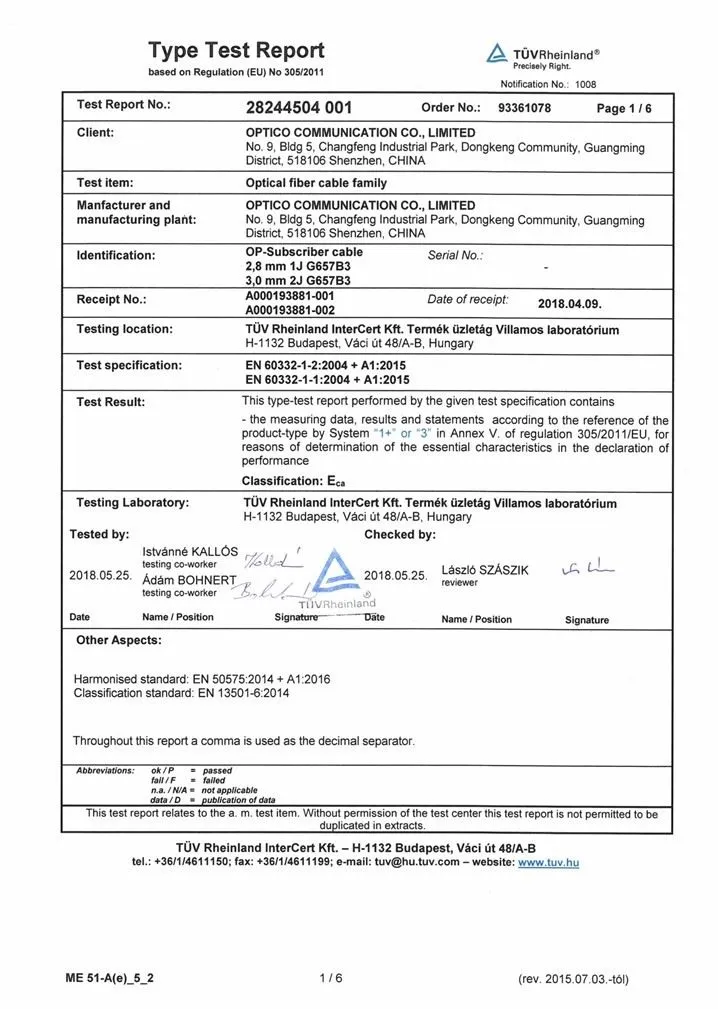

CPR

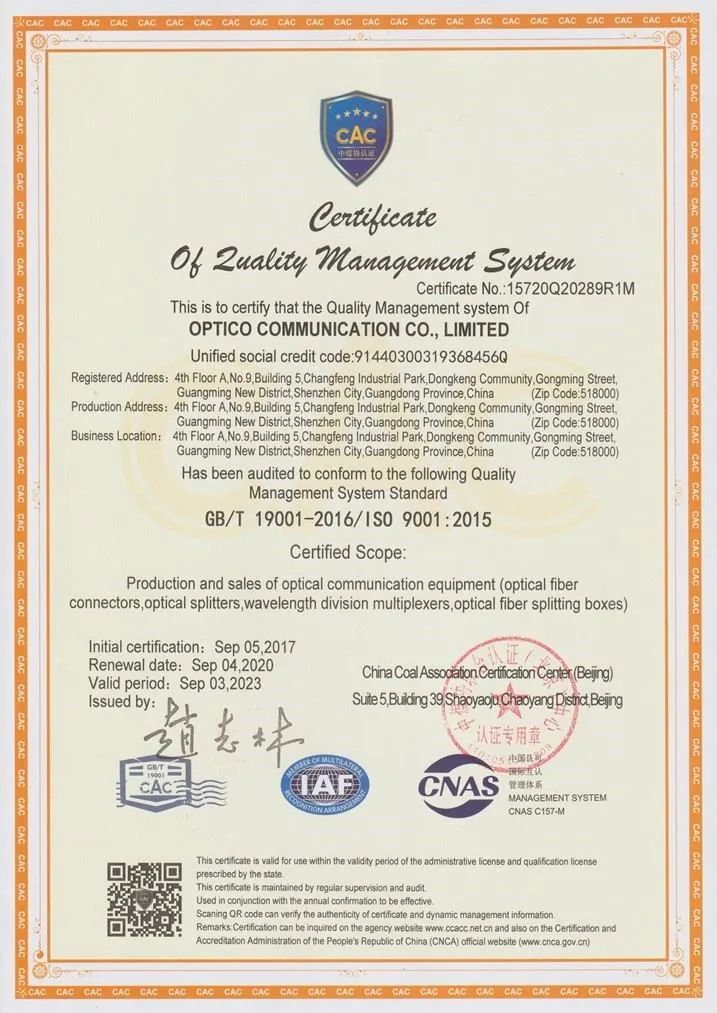

ISO
ROHS
Our brand confidence comes from a strong production team
Mission will be achieved in 7-15 days
What we could promise you
-
Quick response within 24 hours
-
One-to-one service
-
Professional technical team support
-
Provide the best quality solutions
-
Strong production team
-
The most stringent quality control standards
-
Fast delivery
