16 Core Horizontal Optical Cable Splice Box
The optical cable connection box is suitable for the direct and branch connection of various optical cables, and the laying methods include overhead, pipeline, and direct burying.
Advantage:
Complete parts, easy to install
Easy to open, reliable protection
Multiple installation methods
High quality material
Application:
Aerial -hanged
Wall-mounting

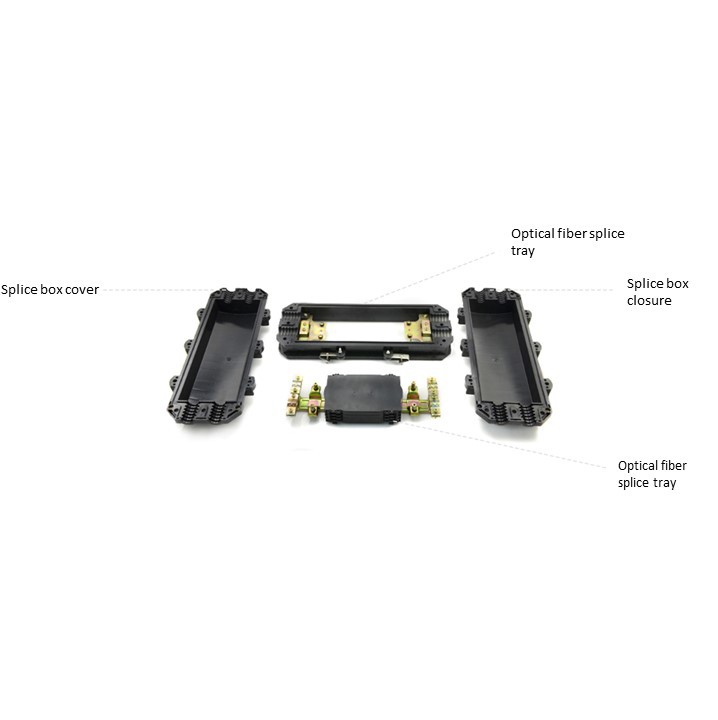

The structure of 16 Core Horizontal Optical Cable Splice Box
Types of international/domestic certificates to meet your request
Various deliver way you can choose
If interested,welcom to consult!
It 's late to be your side.
Hot Tags: 16 core horizontal optical cable splice box 2 in 2 out, China, manufacturers, suppliers, factory, wholesale, customized, Fiber optic splice closure joint box, Fttx Box Fiber Optic Splice Closure, 8F SC Wall Mounted Terminal Box, Horizontal type 24 fibers 2 inlets 2 outlets, verizon optical network terminal box, Fiber Optic Cable Junction Box Cable Optic
| model | O15-2IO-16 | Incoming line | 4 Ports |
| Fiber splicing number | 16Bundles | Fusion core | 16 bundles |
| Applicable fiber optic cable diameter (mm) | 10mm-22mm | Maximum fiber capacity | 16Bundles |
| Operating temperature | -40℃~65℃ | Insulation resistance | ＞2×104MΩ |
| Seal type | Self-adhesive sealing tape | Installation method | Pole installation |
| Dimensions | 200(W)x210(D)x43(H)mm | Type of opening | Reverse-moving spiral |
