Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 16ch cwdm mux demux in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

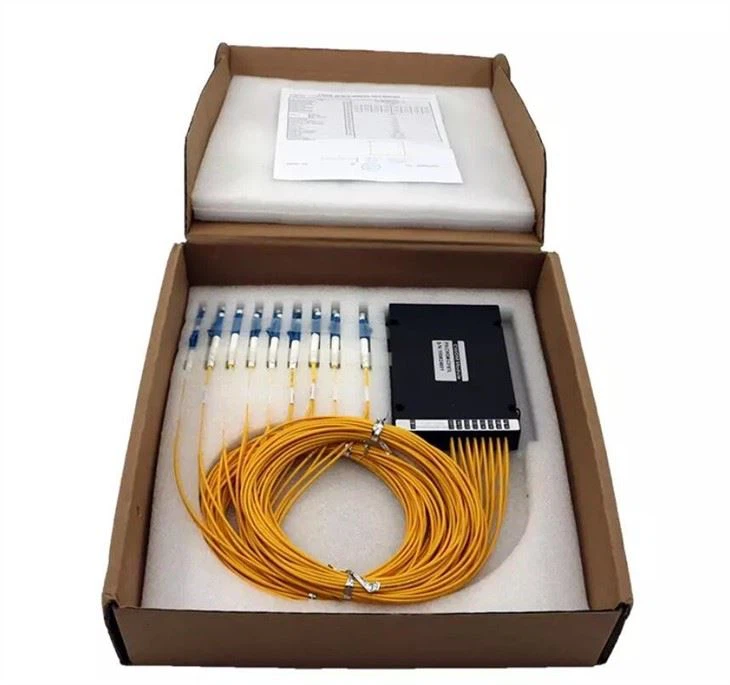

16CH CWDM Mux Demux

CWDM is a low-cost WDM transmission technology for the access layer of the metropolitan area network. In principle, CWDM uses an optical multiplexer to multiplex optical signals of different wavelengths into a single optical fiber for transmission. At the receiving end of the link, the mixed signal in the optical fiber is decomposed into different wavelengths by means of an optical demultiplexer. Signal, connect to the corresponding receiving device.CWDM Mux / Demux Module are based on thin film filter technology. CWDM technology provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels (wavelengths) over the same fiber cabling. Each channel carries data independently from each other, allowing network designers to transport different data rates and protocols for different customers or applications.CWDM can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost low power consumption and small compact, it is widely used in metro aggregation and access layer to do transmission on a short time.

Parameter	Unit	Value
Channels Number	-	2	4	8	16
Channel Space	nm	20
Central Wavelength	nm	1271~1611
Operating wavelength	nm	1260-1460 or 1460-1620 or 1260-1620
Passband	nm	λITU±6.5
Pass band Flatness	dB	≤0.5
Insertion Loss (Typ.)	dB	0.8	1.3	2.4	4.6
Insertion Loss (Max.)	dB	0.9	1.5	2.8	5.0
Adjacent Channel Isolation	dB	≥30
Non-adjacent Channel Isolation	dB	≥40
Polarization Mode Dispersion	ps	≤0.1	≤0.1	≤0.15	≤0.15
Polarization Dependent Loss	dB	≤0.1	≤0.15	≤0.2	≤0.25
Return Loss	dB	≥50
Directivity	dB	≥50
Insertion Loss Temperature Sensitivity	dB/°C	0.005	0.005	0.007	0.007
Wavelength Temperature Shifting	nm/°C	0.002
Operation Temperature	°C	-10~+70
Storage Temperature	°C	-40~+85
Package Dimension	mm	ABS box: 100X80X10mm or customized

CWDM

OPTICO 16CH CWDM Mux Demux Highlights

Low loss

High channel isolation and low crosstalk

Can industrial grade

Support multiple transmission methods

WDM single fiber bidirectional transmission system

WDM dual fiber bidirectional transmission system

Excellent focus and manageability

CWDM-DWDM

In a passive WDM system, CWDM and DWDM are used in conjunction with each other to assemble a high-stability, high-reliability long-distance transmission scheme according to actual requirements, which not only minimizes the loss of the entire link, but also saves fiber to the greatest extent resource.
