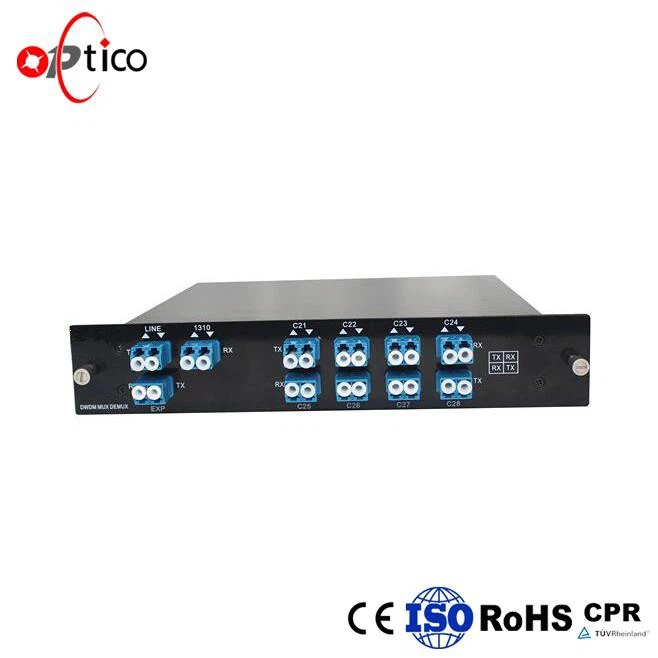

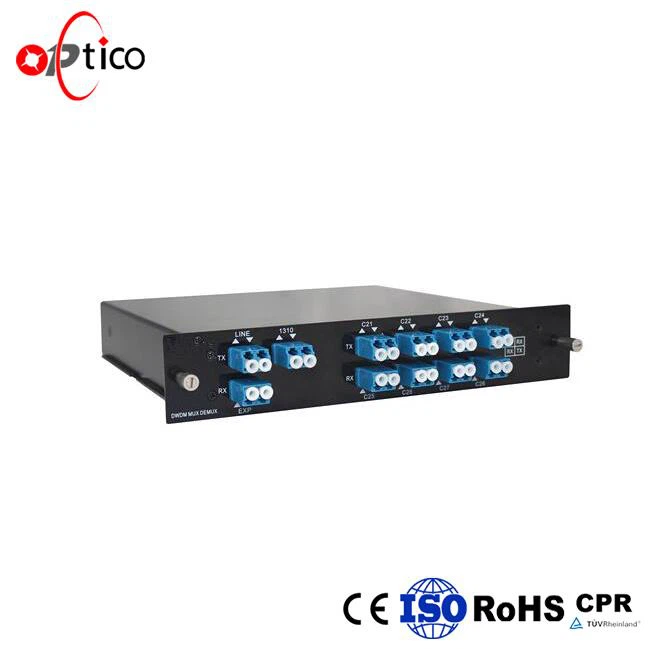

Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of rack mount 8ch cwdm 16 channels cwdm in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
OPTICO provides a multi-channel coarse wavelength division multiplexer module with optional wavelength and a maximum of 18 channels, which can effectively save fiber resources and networking costs. It solves the two problems of fiber shortage and multi-service transparent transmission, cWDM is a low-cost, high-performance transmission solution with many advantages, such as low cost, low power consumption, small size, etc. , now it has been widely used in man transmission.
Parameter | 4 Channel | 8 Channel | 18 Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
Channel Wavelength (nm) | 1270~1610 | ||||||
Center wavelength Accuracy (nm) | ±0.5 | ||||||
Channel Spacing (nm) | 20 | ||||||
Channel Passband (@-0.5dB bandwidth (nm) | >13 | ||||||
Insertion Loss (dB) | ≤1.6 | ≤2.5 | ≤3.0 | ||||
Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
Channel Ripple (dB) | 0.3 | ||||||
Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
Inertion Loss Temperature Sensitivity (dB/°C) | <0.005 | ||||||
Wavelength Temperature Shifting (nm/°C) | <0.002 | ||||||
Polarization Dependent Loss (dB) | <0.1 | ||||||
Polarization Mode Dispersion | <0.1 | ||||||
Directivity (dB) | >50 | ||||||
Return Loss (dB) | >45 | ||||||
Maximum Power Handling (mW) | 300 | ||||||
Opterating Temperature (°C) | -5~+75 | ||||||
Storage Temperature (°C) | -40~85 | ||||||
Package dimension (mm) | L100 x W80 x H10 or L140xW100xH15 | ||||||
Mature production process
Free Space Technology
Low insertion loss
High channel isolation
Can reach industrial grade
ISO
CE
ROHS
