Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 6 ports dwdm device in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
OPTICO’s 6-port DWDM device is mainly used for passive wavelength division multiplexing modules for dual-fiber transmission. It is a TFF (thin film filter)-based wavelength division multiplexing technology. It has a variety of package sizes and wavelength options. DWDM has Channel spacing of 100GHz, 200GHz, etc.; a 6-port DWDM is equivalent to two 3-port products, suitable for long-distance, large-capacity long-distance backbone network, or ultra-large-capacity metropolitan area network core node, widely used in telecom 5G, metropolitan area network , Backbone network, data center and other fields.
Parameters | Unit | Customer Spec | Response | |
Pass band Wavelength | nm | - | - | 1260-1380 |
Reflection Band Wavelength | nm | - | - | 1460-1620 |
Transmission Insertion Loss | dB | Max | - | 0.6 |
Reflection Insertion Loss | dB | Max | - | 0.4 |
Transmission Isolation | dB | Min | - | 30 |
Reflection Isolation | dB | Min | - | 13 |
Polarization Dependence Loss | dB | Max | - | 0.2 |
Temperature Dependent Loss | dB | Max | - | 0.3 |
Polarization mode dispersion | ps | Max | - | 0.1 |
Return Loss | dB | Min | - | 45 |
Directivity | dB | Min | - | 50 |
Power Handing | mW | Max | - | 500 |
*Above specifications are referenced without connector. And the IL with a pair of connectors will increase 0.3dB, RL will decrease 5dB.
Low loss
High channel isolation
Can reach industrial grade

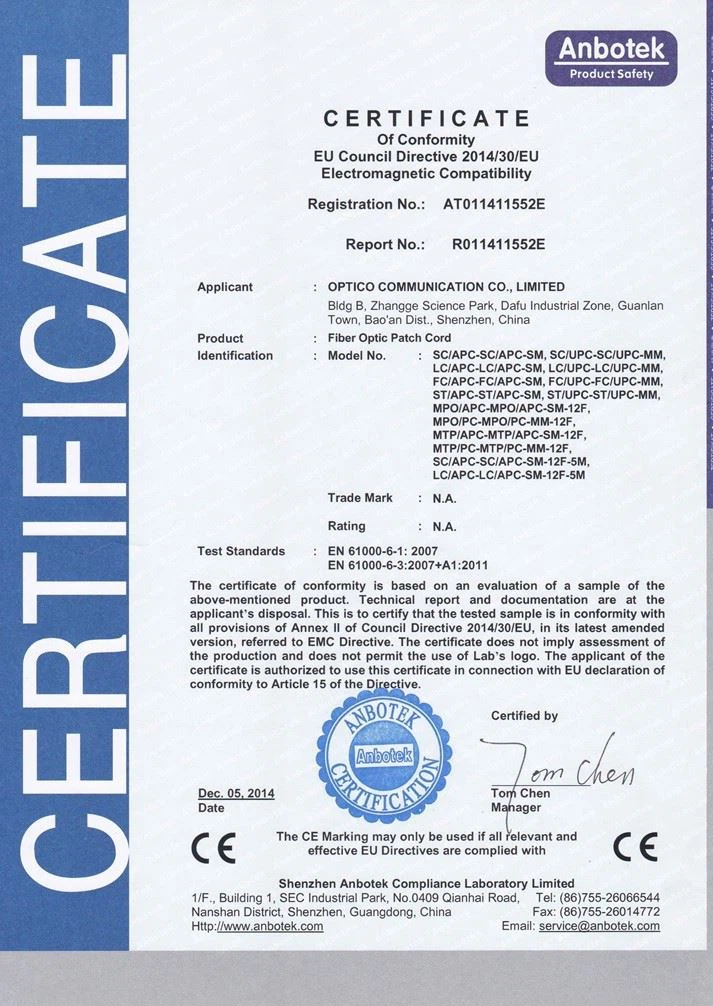

CE

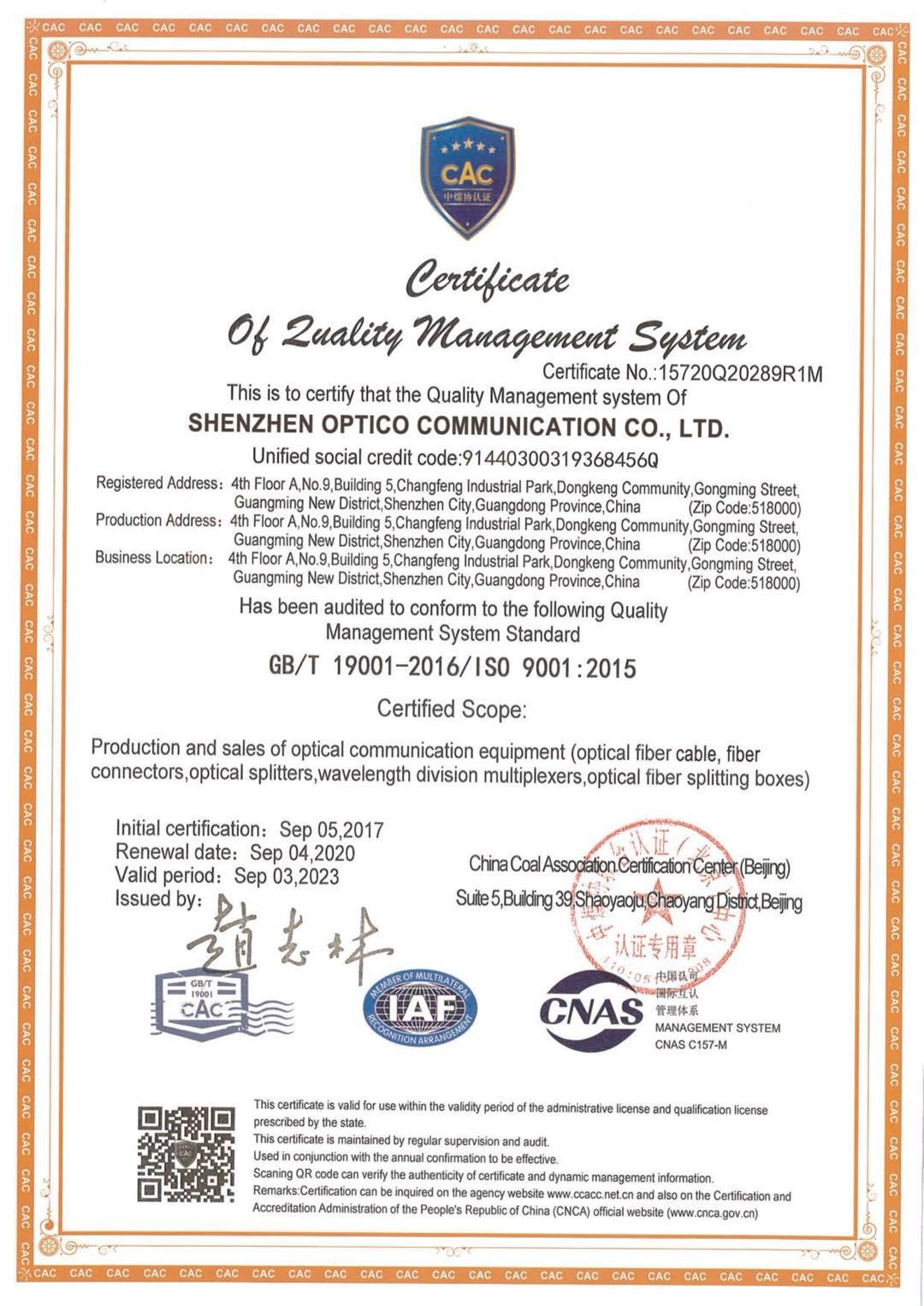

ISO
ROHS
Data Center
LAN Networks
WAN Networks
WDM single fiber bidirectional transmission system
WDM dual fiber bidirectional transmission system
By real-time monitoring the power status in working fiber through OLP, the traffic will be automatically diverted to the protection line if the working line fails, which greatly reduces the huge loss of data information.
OPTICO's 6-port DWDM devices comply with RoHS, meet Telcordia GR-1209-CORE and GR-1221-CORE, and also meet the industry's 168-hour PCT reliability test.
Mature production process, our VR factory: https://www.linked-reality.com/company/15555/en
If interested,welcom to consult!
