Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of odva lc duplex adapter in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

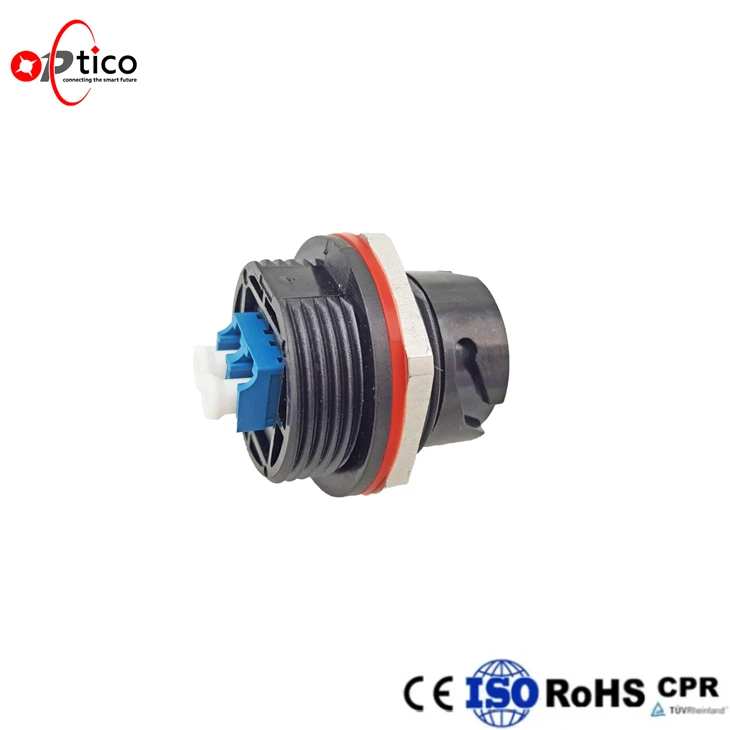

- The OPTICO ODVA LC Duplex Adapter connects two compatible ODVA LC cable assemblies, providing a protected inline junction for outdoor fiber links. Its terminal to terminal configuration joins separate cable sections into a continuous duplex optical connection, supporting outdoor cable extension and equipment interconnections.
- Both ends feature a bayonet coupling interface, allowing matching ODVA plugs to be secured and released with a simple twist. The protective housing and internal sealing components help shield the LC mating area from dust and moisture, providing IP67 protection when correctly assembled and fully mated with compatible connectors.
- The detachable junction allows individual cable sections to be disconnected for inspection, maintenance or replacement. Two LC optical channels are accommodated within one protected interface, offering a compact connection for outdoor installations where both optical connectivity and environmental sealing are required.
Product Features
Bayonet interfaces at both ends secure matching ODVA plugs with a simple twist, allowing convenient connection and release during installation and servicing.
Accommodates two LC optical channels within one protective housing, keeping the duplex connection together at a single outdoor cable junction.
The housing and internal seals provide IP67 protection when correctly assembled and fully mated with compatible connectors, protecting the optical mating area against dust and water ingress.
Joins separate ODVA LC cable sections through a removable connection, allowing individual sections to be disconnected for inspection or replacement without cutting and resplicing at the junction.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | ODVA LC Duplex Adapter |
| Adapter Configuration | Terminal to Terminal (Inline) |
| Optical Interface | LC/PC Duplex |
| Compatible Connectors | Matching ODVA LC Cable Connectors |
| Coupling Mechanism | Bayonet Coupling at Both Ends |
| IP Rating | IP67 |
| Mated Insertion Loss (dB) | ≤0.2 |
| Mated Return Loss (dB) | ≥50 |
IP67 applies to the correctly assembled and fully mated connection. Insertion loss and return loss values refer to compatible LC connectors mated through the adapter under specified test conditions.
Additional Specifications (Panel Mount Version)
| Parameter | Specification |
|---|---|
| Fiber Mode | Multimode (MM) |
| Mounting Configuration | Panel Mounted Receptacle |
| Panel Mounting Options | Front or Back Panel Mounting |
| Mounting Style | Through Hole |
| Shielding | Unshielded |
| Operating Temperature (°C) | −40 to +85 |
| Sealing Material | Silicone |

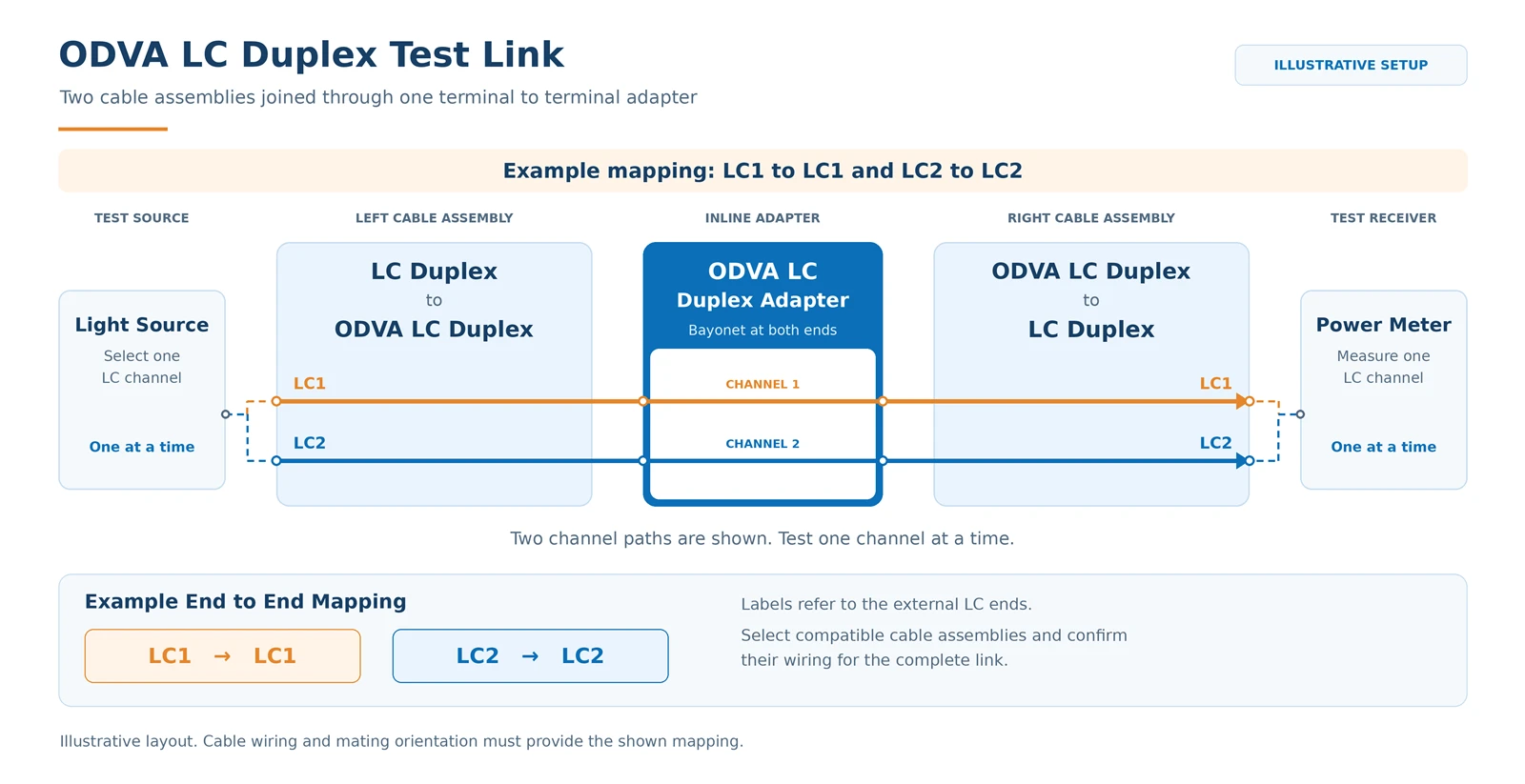

Typical Test Link
This example connects two LC Duplex to ODVA LC cable assemblies through one ODVA LC Duplex Adapter. A light source and power meter connect to the external LC ends to test each fiber separately.
The illustrated link uses one to one channel mapping, with LC1 connected to LC1 and LC2 connected to LC2. Cable wiring and mating orientation should be confirmed to achieve this correspondence.
Applications
Extends outdoor duplex fiber runs by joining two matching ODVA LC cable assemblies. The inline connection provides a detachable extension point without requiring a splice at the junction.
ODVA LC Cable Connector
Provides a detachable junction in fiber routes serving wireless base stations and remote radio equipment. Matching ODVA LC cable sections can be disconnected for equipment servicing or cable replacement.
Remote Radio Equipment Example
Connects compatible ODVA LC cable assemblies along routes between outdoor cabinets and fiber distribution equipment, providing an accessible junction where separate equipment cable sections meet.
Outdoor Distribution Equipment Example
Customization Process
Confirmation
Configuration
Approval
and Verification
and Delivery
100% Tested Before Delivery
Our products undergo comprehensive testing before shipment to ensure high-quality delivery to our customers.
IL/RL Test
Polarity Test
End-surface Test
Temperature Test
Certificates
CE
CPR
(1)-01.png?size=270x0 "ISO")
ISO
RoHS
FAQ
The mating cable ends need compatible ODVA LC housings. Standard LC plugs alone do not provide the bayonet coupling and sealing required for the outdoor connection.
No. Do not mate LC/APC with LC/PC or LC/UPC connectors. Use matching polish types at each connection to avoid excessive loss and possible end face damage.
No. Channel numbering shows fiber correspondence. For duplex operation, verify that each transmitter connects to the receiver at the opposite end according to the equipment port assignments.
Inspect both LC end faces, clean if needed, then inspect again before mating. If loss persists, check connector engagement, cable bends and end face damage.
