Product Profile

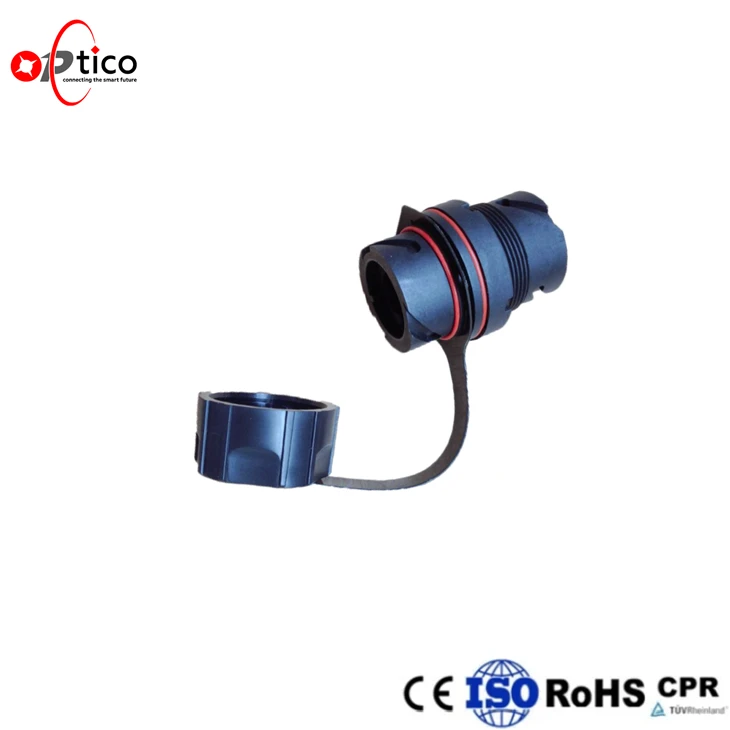

The OPTICO ODVA MPO Adapter provides a protected connection point for multi fiber optical links in outdoor communication networks. It connects compatible ODVA MPO cable assemblies or provides a mating interface on equipment enclosures, making it suitable for FTTA systems, wireless base stations and outdoor fiber distribution equipment.
The bayonet coupling mechanism enables quick connection and disconnection, while the protective housing and sealing structure help shield the optical interface from dust and moisture when correctly assembled and fully mated. Inline configurations join two ODVA cable connectors, while panel mount configurations provide a connection point on a cabinet or equipment housing.
For complete outdoor fiber links, the adapter can be paired with compatible 12F ODVA MTP/MPO Outdoor Patch Cord assemblies. The adapter configuration and mating interface should match the cable connectors and equipment mounting requirements.
Product Features
Matching ODVA plugs connect through a bayonet coupling interface, allowing straightforward mating and release during installation, inspection and cable replacement.
The protective housing and sealing components help keep dust and moisture away from the optical mating area when the complete connection is correctly assembled and fully secured.
Brings multiple optical channels into a single MPO connection point, helping simplify cable organization and reduce the number of separate fiber interfaces required on equipment enclosures.
Inline adapters join two ODVA cable connectors. Panel mount versions provide a fixed connection point on an equipment housing, supporting different outdoor cabling and enclosure layouts.
Specifications
| Parameter | Specification |
|---|---|
| Adapter Type | ODVA MPO/MTP Waterproof Adapter |
| IP Rating | IP67 |
| Connector Compatibility | MPO/MTP Single mode: OS2 Multimode: OM3 / OM4 |
| Insertion Loss (dB)* | ≤0.35 |
| Return Loss (dB)* | Single mode: ≥60 Multimode: ≥30 |
| Housing Material | High Durability Polymer |
| Mounting Style | Snap in / Flange Mount |
| Operating Temperature (°C) | −40 to +75 |
| Storage Temperature (°C) | −40 to +85 |

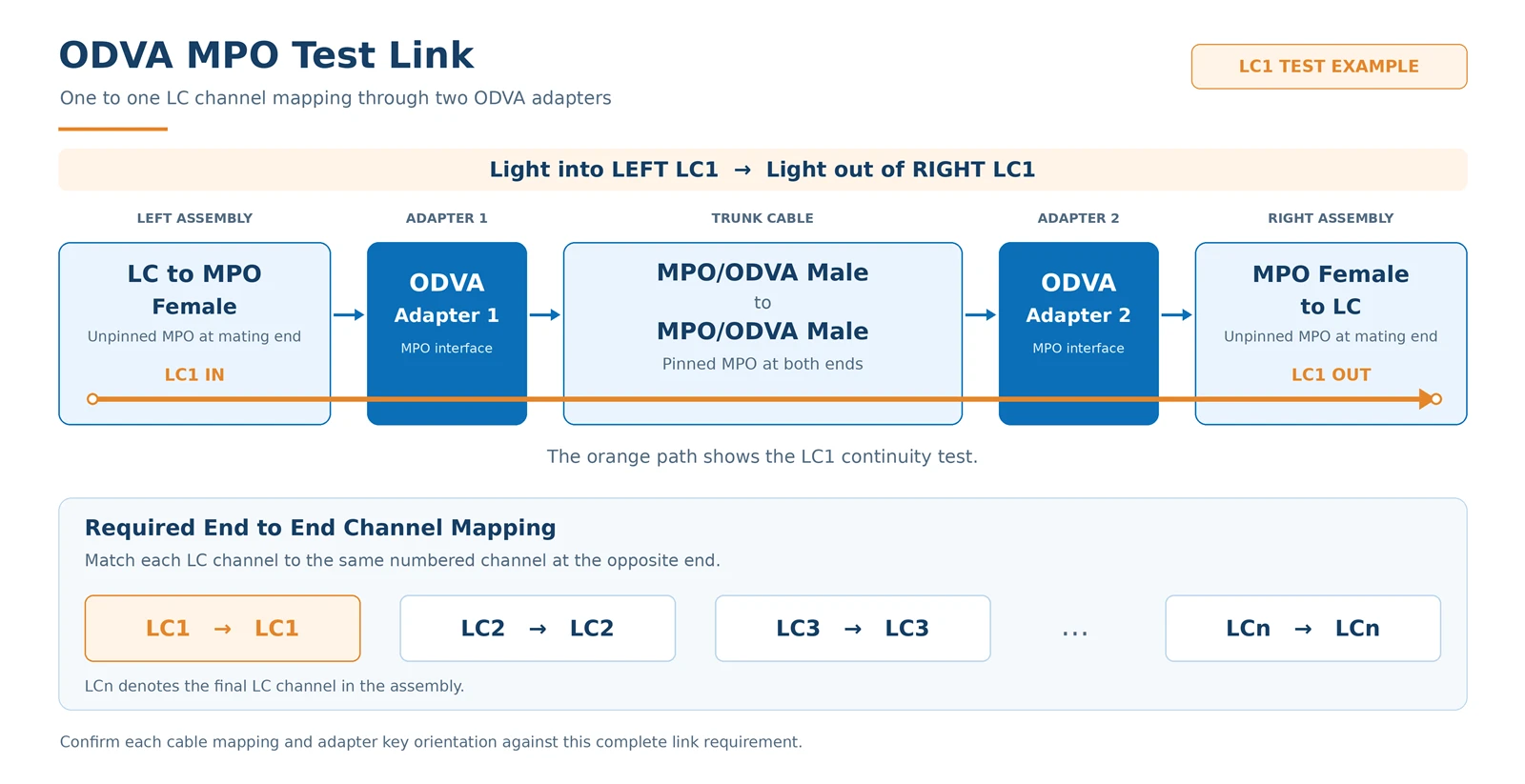

Typical Test Link
This example uses two ODVA MPO adapters to connect a male to male MPO/ODVA trunk cable with female MPO connectors on the LC breakout assemblies.
The complete link requires one to one channel mapping. Light entering LC1 on the left should exit LC1 on the right, with the same channel correspondence maintained throughout the link.
Applications
Inline ODVA MPO adapters join two compatible outdoor cable assemblies, creating a detachable connection point for cable extension, section replacement and maintenance.
Panel mount versions provide a connection point on distribution boxes designed for matching ODVA MPO interfaces, allowing external cable assemblies to connect with the internal fiber routing.
Outdoor Distribution Box Example
Used in base station and remote radio installations that specify ODVA MPO interfaces. The detachable connection supports cable installation, planned replacement and maintenance in outdoor equipment links.
Remote Radio Equipment Example
Customization Process
Confirmation
Configuration
Approval
and Verification
and Delivery
100% Tested Before Delivery
Our products undergo comprehensive testing before shipment to ensure high-quality delivery to our customers.
IL/RL Test
Polarity Test
End-surface Test
Temperature Test
Certificates
CE
CPR
(1)-01.png?size=270x0 "ISO")
ISO
RoHS
FAQ
IP67 applies to the specified sealed assembly. For an unused port, confirm whether a dedicated sealing cap is required to maintain the rated protection.
No. Standard MPO mating requires one pinned male connector and one unpinned female connector. The adapter does not change connector gender.
Key orientation determines how the mating connectors are positioned. Select the orientation to match the cable polarity design and verify the complete link mapping.
They describe the optical connection formed by compatible MPO/MTP connectors mated through the adapter. Performance depends on the connectors, end face condition and test setup.
