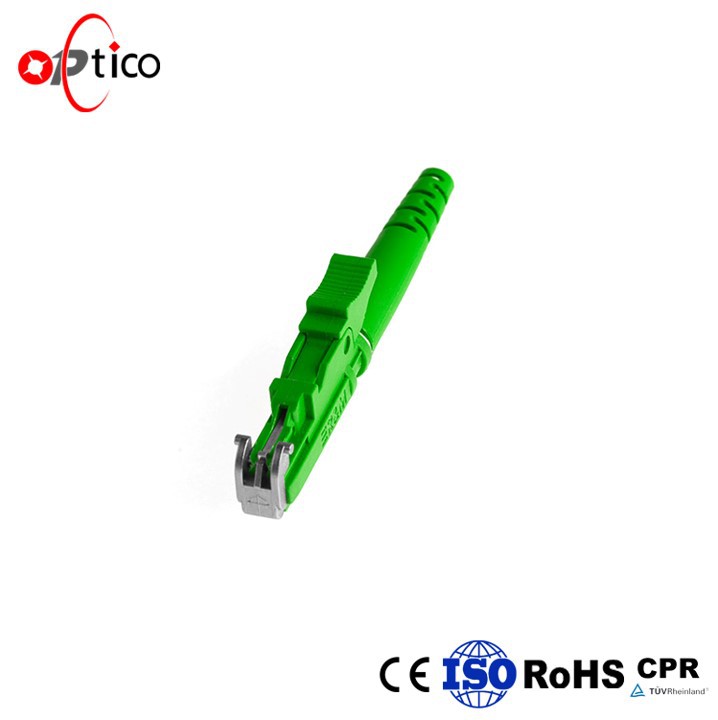

E2000 Fiber Optical Connectors
The E2000 connector provided by OPTICO has the advantages of easy plugging and plugging, low insertion loss, and high compressive strength, and is widely used in telecommunication networks, CATV, FTTX and other fields.
Features:
The E2000 connector comes with spring shutters to protect the ferrule to prevent the inside from being affected by external pollutants, and effectively prevent the human body from being harmed by laser irradiation
The E2000 connector adopts a push-pull locking method, which is easy to operate and quick to install
Selected ceramic ferrules, professional grinding technology, precise butt connection of fiber end faces, lower insertion loss ≤0.15dB, making transmission more stable and connection more efficient
Applications:
Telecommunications network
CATV
FTTX
Certificates:
The E2000 connector provided by OPTICO satisfies the working environment of -40~85℃, with an average of more than 500~1000 plug-in tests, stable performance and reliable quality.
E2000 optical fiber connectors are available in a variety of colors and tail sleeves.
If interested,please kindly let us know!
Hot Tags: e2000 fiber optical connectors, China, manufacturers, suppliers, factory, wholesale, customized, E2000 Fiber Optical Connectors
| Parameter | E2000 Fiber Optical Connectors | |||
| Type | SM | MM | ||
| Fiber Type | 9/125um | 50/125um,62.5/125um | ||
| Ceramic ferrule aperture | 125.0~125.5um | 126~129um | ||
| Ceramic ferrule concentricity | ≤1.0um | ≤0.5um | ≤0.3um | ≤3.0um |
| Insertion loss | ≤0.30dB | ≤0.20dB | ≤0.15dB | ≤0.30dB |
| Return loss | ≥50dB(UPC)， ≥60dB(APC) | ≥30dB | ||
| Plug test | ＞500 times，＜0.3dB | |||
| Work temperature | -40℃～+85℃ | |||
