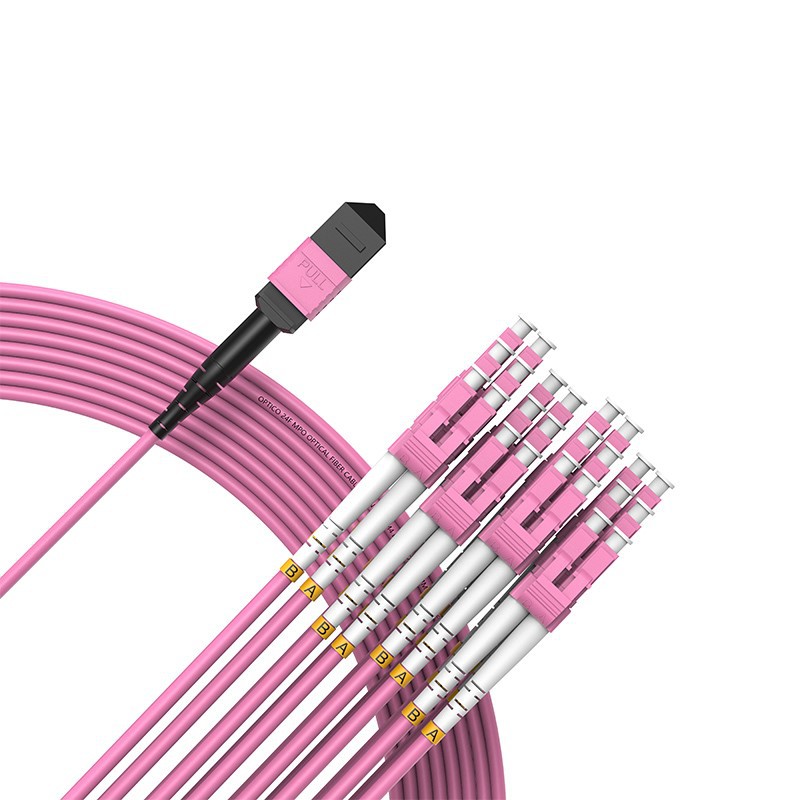

MPO Fanout Patch Cable 24 Cores also known as MPO-LC branch patch cord or fan-out patch cord, has 24 core MPO connector on one end and 24 LC connector on the other end, with branches in the middle.
MPO Fanout Patch Cable 24 Cores is usually used for signal separation, allowing data signals of different channels to be efficiently distributed from MPO connector to LC connector.
MPO Fanout Patch Cable 24 Cores complies with IEC61754 standard for fiber optic connector interface reference, and complies with IEC61753-1 for optical and mechanical performance.
OPTICO accepts customization, we have all kinds of MTP fanout cable, and LC connector can also be replaced with FC, SC, ST or other single-core connectors.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | Connector A: US Conec MTP Female/Male; MPO Female/Male | ||
| Connector B: LC/SC/FC/ST | |||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Various Fiber Counts and Types
Choose from 4, 8, 12, 24, or 48 fiber options, with both single-mode and multimode fiber types available. This flexibility of 24 Fiber MPO/MTP Patch Cord allows for seamless integration into different network environments and applications.
Rapid Deployment, High Density, and High Reliability
The MTP Female to MTP Female Trunk Cable is designed for rapid deployment in high-density environments, such as data centers. Its reliable performance ensures seamless connectivity and minimizes network disruptions.
Extremely Low Insertion Loss and High Return Loss
24 Fiber MPO/MTP Patch Cord offers excellent optical performance with extremely low insertion loss and high return loss, maximizing signal integrity and reducing transmission errors.
Telcordia GR-1435-CORE Issue 2 Compliant
The trunk cable complies with the Telcordia GR-1435-CORE Issue 2 standard, which guarantees high-quality and reliable performance.
Corning/YOFC Fiber
All our MPO ferrules are from Hakusan
Color can be customized and number ring can be added
Printing can be customized
Our Brand Confidence Comes From A Strong Production Team
Scenes of Applications
8-core MTPMPO branch fiber jumper realizes direct connection from 40G SR4 to 10G SR
12-core MTPMPO backbone jumper and 40G adapter panel realize 10G to 40G network upgrade
40G SR4 and 12-core MTPMPO trunk fiber jumper directly
All Products Will Be Tested Before Delivery
IL/RL Test
3D Test
Temperature Test
Connectivity Solutions
10G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment:
In the core connect, a Switch is Equipped with the 10G SFP+ 300m 850nm Optical Transceiver Module to send and receive signals. These modules enable data transmission speeds of up to 10 Gbps, with a maximum transmission distance of 300 meters, making them suitable for data centers and large network environments.
b. Fiber Connection Method：
Connectivity is established using of LC UPC to LC UPC Duplex OM4 Multimode Patch Cord.
c. Fiber Cabling Management:
A 24F 2×12F MPO-6LC MPO Cassette, containing 24 LC duplex modules, is utilized along with a 1U high-density fiber enclosure. This setup optimizes fiber management and minimizes cable clutter.
2. Core to Access Connection:
A 24F MPO-MPO Female Trunk Cable can be used to contact the core connection and access cabling.
3. Access Cabling Solution:
The same connection approach of the core can also be applied to the access cabling solution, ensuring scalability and consistency throughout the network.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Rich Warehousing and Fast Delivery
Delivery(7-15 Days)
How We Can Stand By You
Quick response within 24 hours
One-to-one consulting Service
Professional technical team support (RL can even reach 85dB/ Grade B connectors)
Super strict quality control (Real 1000 times plug experiment)
Huge production capacity
Never change prices arbitrarily
