Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of mpo lock connector in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

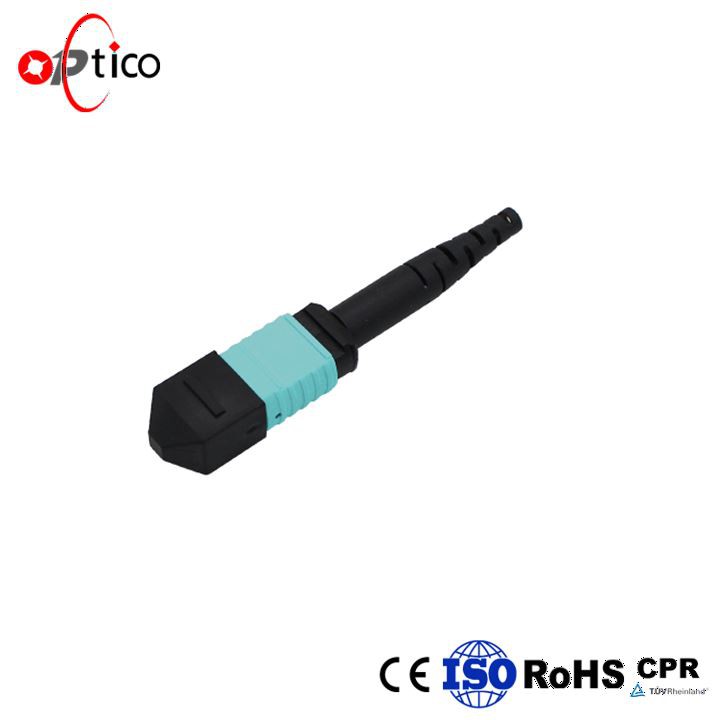

MPO Lock connector
MPO optical fiber connector is a device for detachable (movable) connection between optical fiber and optical fiber. It precisely connects the two end faces of the optical fiber so that the light energy output by the transmitting fiber can be coupled to the receiving fiber to the maximum. . This MPO connector is assembled with a tie rod to enable it to be used in a high-density assembly environment.
Features:
Compact with lock design to meet the needs of high-density applications
Prevent unauthorized removal
Matching optical module and adapter
Uniquely designed MPO lock
Good stability, low insertion loss
Compliance with international standards to ensure safety and stability
Multiple styles available
Application:
Telecommunications network
CATV network
Corporate network
Optical Communication Center
Certificates:
This connector has multiple core counts, multiple colors, and multiple types to choose from.
If interested,welcom to consult!
Hot Tags: mpo lock connector, China, manufacturers, suppliers, factory, wholesale, customized, MPO Lock Connector, MPO 16 32 Cores Connector, MPO 12 24 Cores Connector
| Project | Low loss | Standard loss | ||||
| SM | MM | SM | MM | |||
| Insertion loss | 16F | 32F | 16F | 32F | 16F,32F | 16F,32F |
| ≤0.35dB | ≤0.5dB | ≤0.35dB | ≤0.7dB | ≤0.7dB | ||
| Return loss | ≥55dB | ≥20dB | ≥55dB | ≥20dB | ||
| Plug test | 50次 | |||||
| Work temperature | -40℃～+85℃ | |||||
| Applicable fiber | OS2/OM3/OM4/OM5 | |||||
