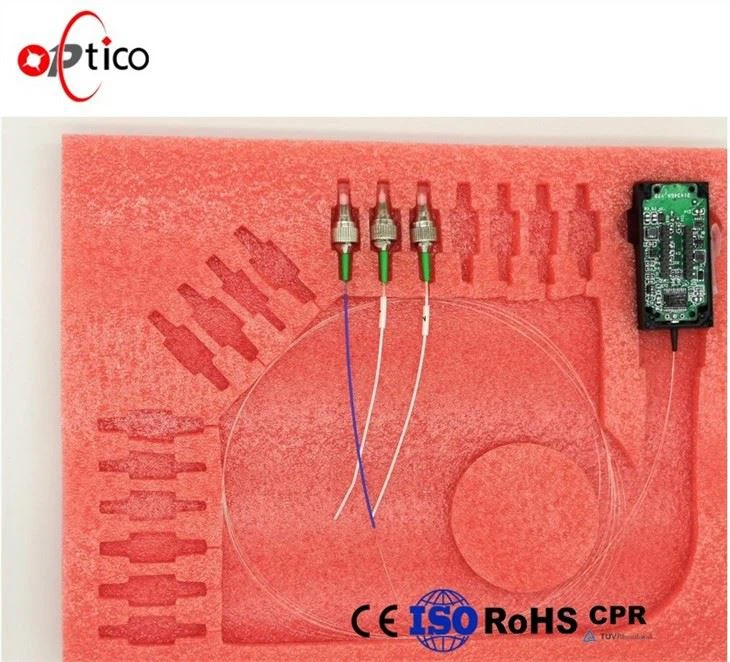

1xN MEMS Optical Switch Module
MEMS 1xN Optical Switch is an industry proven fiber optic switch with excellent durability and reliability. It allows channel selection between a single input fiber and N output fibers.
|
Parameters |
Unit |
Value |
||||||
|
Number of channels |
CH |
4 |
8 |
16 |
24 |
32 |
48 |
64 |
|
Wavelength |
nm |
1310±20 or 1550±20 or 1625±20 |
||||||
|
Insertion Loss(Max) |
dB |
0.8 |
1 |
1.4 |
1.5 |
1.5 |
1.9 |
1.9 |
|
Return Loss |
dB |
≥50 |
||||||
|
Repeatability |
dB |
0.04dB Max |
||||||
|
Crosstalk |
dB |
≥50 |
||||||
|
PDL |
dB |
≤0.15 |
||||||
|
WDL |
dB |
≤0.3@CWL±20nm,23℃ |
||||||
|
TDL |
dB |
<0.4dB |
||||||
|
Operation Temperature |
℃ |
-5~70 |
||||||
|
Storage Temperature |
℃ |
-40~85 |
||||||
|
Switch Time |
ms |
≤30 |
||||||
|
Durability |
cycle |
≥1×10^9 |
||||||
|
Control Voltage |
V |
5 or 12 |
||||||
|
Packaging Dimensions |
mm |
85 x 50 x 19 ±0.2 |
||||||
Advantages
-
The MEMS optical switch module has excellent parameter performance, and the channel switching times exceed 1 billion times.
-
The MEMS optical switch module is small in size and has many channels, which is conducive to optical network scenarios with high integration.
-
In line with international standards
Applications
MCS Network
OxC Network
Monitoring system
International/Domestic Certificates
CE
FCC
ROHS
ISO
100% Tested before delivery
Production Equipments
Imported test equipments
High and low temperature
How we could stand by you
-
Quick response within 24 hours
-
One-to-one service
-
Professional technical team support
-
Provide the best quality solutions
-
Strong production team
-
The most stringent quality control standards
-
Fast delivery
