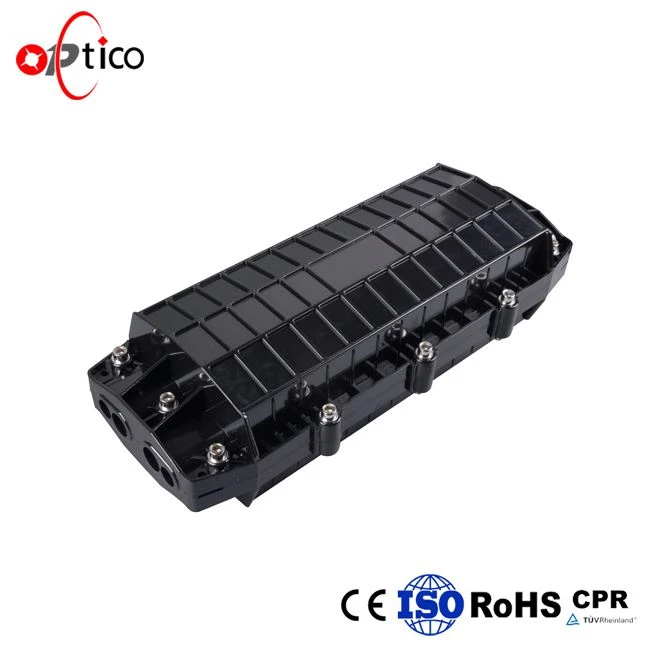

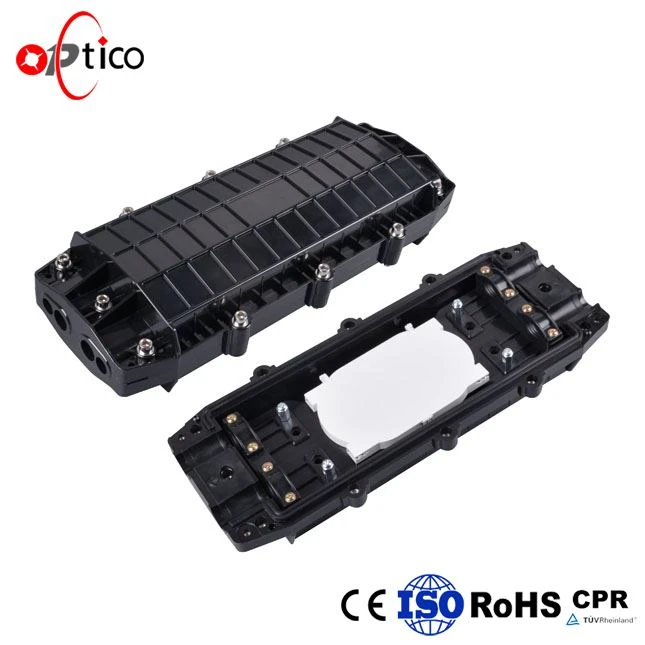

FTTH Fiber Joint Closure
Optical cable joint closure box is also known as optical cable connection package, optical cable joint box and barrel. It belongs to a mechanical pressure sealing joint system, which is a splice protection device that provides optical, sealing and mechanical strength continuity between adjacent optical cables. It is mainly applied to direct and branch connections of overhead, pipeline, and direct buried laying methods of various structural optical cables.
Place of Origin: Shenzhen, China
Brand Name: OPTICO or OEM
Model Number: OP-DOME-48F
Use: FTTH
Fibers/Tray: 24
Max capacity(F): 144
Suitable Dia of cable(mm): Small port:8~17.5 Big port:10~17.5
Sealing structure: Mechanical Seal
Size of CTN: 740X490X450 (6 pieces)
Supply Ability: 20000 pcs/month
Packaging Details: 1 pcs/inner box, suitable quantity per carton
Port: Shenzhen
Features:
1:High-strength engineering plastic shell
2:High mechanical performance
3:Endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
4:Great aging resistant ability
5:Does not require special tools, easy to install and open the duplicate.
6:Excellent sealing performance
Applications:
Optical networks
Local area networks
Wide area networks
FTTH fiber cable
Parameters:
External Dimension (mm) | 450×φ230 | Max. Capacity | 144F/ 72F |
Weight（kg） | 4.2～4.8 | Sealing type | Mechanical |
Cable Entrances | 5 (4 Drop & 1 Express cable) | Capacity per Tray | 24F/12F |
Suitable cable diameter (mm) | Pinholeф5～ф7 | ||
number of Splice trays | 6 | IP rate | 68 |
Material for body | PP+GF | Material for splice tray | ABS |
