Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of fc fc armored smf jumper in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
FC FC Armored SMF Jumper
Armored optical fiber jumper is a steel armored optical cable with optical fiber connectors at both ends to realize the active connection between optical network equipment and equipment, equipment and jumper. It is simple, convenient and fast to operate, and is an optical network construction One of the indispensable passive products.
| Specifications | SC,LC,FC,E2000 | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 | 1310, 1490,1550 | 850,1300 | 1310,1490,1550 | 850,1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 | ||||||
Corning Fiber
Excellent mechanical endurance
Good in repeatability
High credibility and stability
Our brand confidence comes from a strong production team

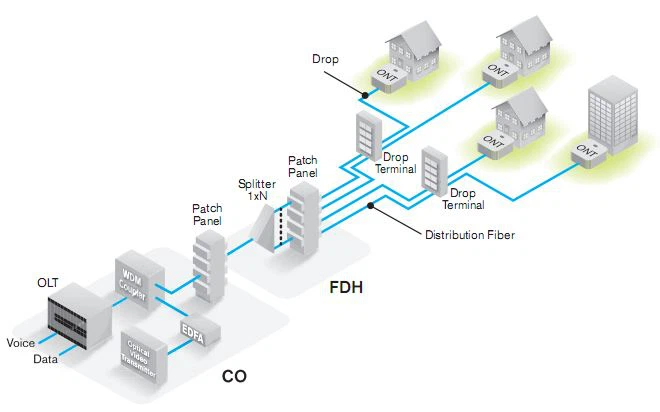

Scenes of applications
Communication system
CATV
FTTx
LAN system
100% test during producing
IL/RL test
3D test
End face test
Temperature cycle
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Purchase guide if interested
The type of end face angle
The color of the cable
The length
| 1 | 1m |
| 2 | 2m |
| 3 | 3m |
| 4 | ... |
| 5 | Custom |
The diameter of the cable
| 1 | 2.0mm |
| 2 | 2.8mm |
| 3 | 3.0mm |
Rich warehousing and fast delivery
Mission will be achieved in7-15 days
How we cam stand by you
Quick response within 24 hours
One-to-one consulting Service
Professional technical team support (RL can even reach 85dB/ Grade B connectors)
Super strict quality control (Real 1000 times plug experiment)
Huge production capacity
Never change prices arbitrarily
Hot Tags: fc fc armored smf jumper, China, manufacturers, suppliers, factory, wholesale, customized, duplex sc fiber connector, FC SC Fiber Optic Patch Cord, fc fiber optic patchcord, LC LC Duplex Waterproof Patch Cord, lc to lc patch cable, armored single mode fiber patch cable
| Specifications | SC,LC,FC,E2000 | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 | 1310, 1490,1550 | 850,1300 | 1310,1490,1550 | 850,1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 | ||||||
