Product Profile
Fiber optic patch cables are commonly used in telecommunications, data centers, and LAN/WAN networks. They are typically used to connect devices such as switches, routers, and servers to each other, or to connect devices to a patch panel. Fiber optic patch cables are also used in fiber optic test equipment to connect different components for testing and troubleshooting.
OPTICO Fiber Patch Cord Cable is available in both single-mode and multi-mode versions. Both single-mode and multi-mode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC, UPC, APC profile and convex spherical end.
Product Features
High-Speed Data Transmission: The patch cord cable is capable of transmitting data at high speeds, making them ideal for applications that require fast data transfer, such as data centers, telecommunication networks, and broadband networks.
Low Signal Loss: OPTICO fiber patch cord cable has low signal loss ≤0.2dB(APC),≤0.3dB(PC), so that it can transmit data over long distances without significant signal degradation.
Immunity to Electromagnetic Interference: The cable is immune to electromagnetic interference, which makes them ideal for use in areas with high levels of electrical interference, such as factories, hospitals, and data centers.
Small Form Factor: OPTICO fiber patch cables are small in size and easy to install, which makes them ideal for use in areas where space is limited.
Versatility: This patch cord cable is available in various lengths, colors, and connector types, making them versatile and compatible with a wide range of applications.
Corning/YOFC Fiber
CCTC ceramic ferrule
Insensitive to bending
Grade B Connectors
Specifications
| Parameter | ||
| Mode | Single mode | Multimode |
| Polish | PC, APC | PC |
| Insertion Loss | ≤0.2dB(APC),≤0.3dB(PC) | ≤0.25dB |
| Return Loss | PC≥50dB; APC≥65dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm |
| Durability(500 Matings) | ≤0.2dB | |
| Operating Temperature | -20℃~+70℃ | |
| Storage Temperature | -40℃~+85℃ | |
| Fire Resistant | IEC 60794-2-30 | |
| Standards-Compliant | ROHS,IEC and GR-326 | |
| Specification | ||
| Fiber Type | G652D,G657A1,G657A2,OM1,0M2,OM3,OM4 | |
| Cable diameter | 250um, 900um or Customized | |
| Cable jacket | LSZH, PVC | |
| Length(M) | 1m, or Customized | |
Our Brand Confidence Comes from a Strong Production Team

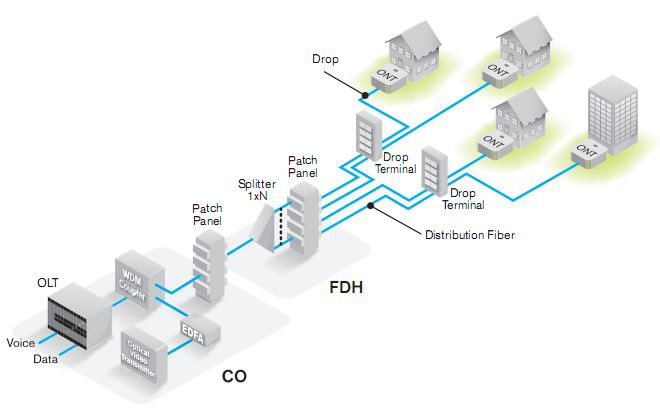

Applications
CATV
FTTA
FTTH

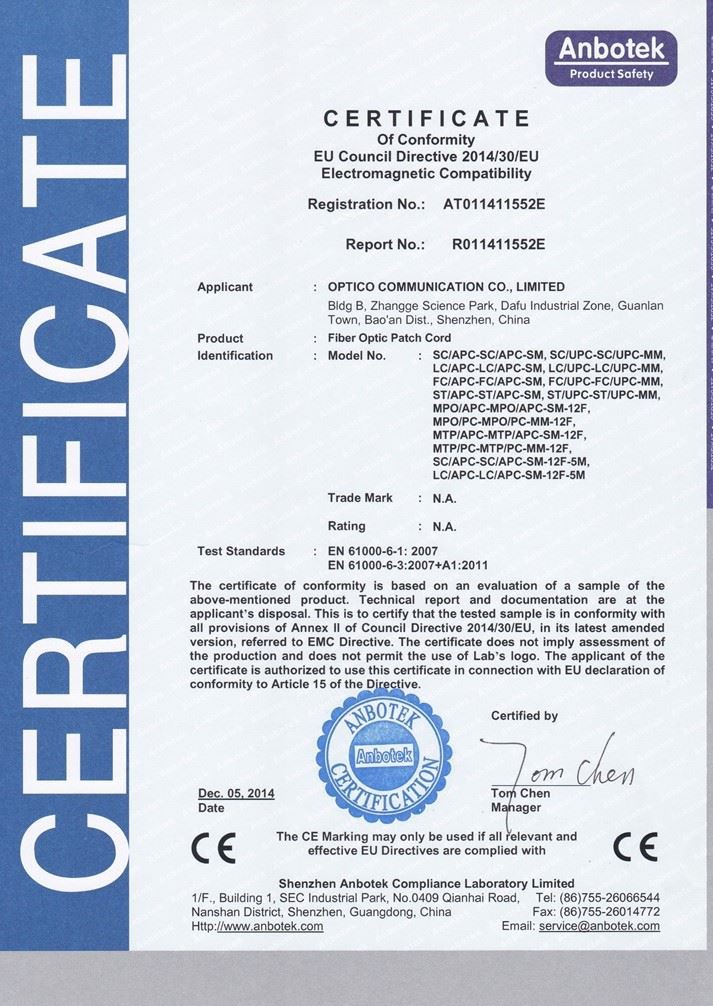

Certificates
CE
CPR
ISO
ROHS
100% Strictly Tested Before Delivery
IL/RL test
3D tested by Daisi
End Surface test
Delivery Time(7-15 Days)
Optical fiber jumpers can be used to connect a variety of network equipment and devices with optical fiber interfaces, such as optical modules, adapter panels, distribution boxes, wavelength division multiplexers and demultiplexers, optical fiber transceivers, etc.
