Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of lc lc duplex patch cord om4 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
LC LC Duplex Patch Cord OM4 is a high-performance fiber optic patch cord designed for high-speed and reliable data transmission. With LC connectors on both ends, this patch cord is specifically engineered for use with OM4 multi-mode fiber optic cables. It offers superior performance, low loss, and bi-directional communication capabilities, making it an excellent choice for demanding applications.
We assure you that every connector assembly supplied by OPTICO is made using quality parts in a high-quality termination facility, according to recognised and approved international standards. The quality and inspection procedures employed, ensure only high quality, individually inspected and approved pigtails and patch cords are supplied.
Product Features
Enhanced Data Transfer: The LC LC Duplex Patch Cord OM4 supports high-speed data transfer, enabling seamless transmission of large volumes of data in bandwidth-intensive applications such as data centers, enterprise networks, and telecommunications.
Reliable Performance: With low insertion loss less than 0.25dB and optimized fiber compatibility, this fiber optic patch cord ensures reliable and stable connectivity, minimizing the risk of data loss or interruptions.
Bi-Directional Communication: Featuring a duplex configuration, the LC LC patch cord enables simultaneous transmission in both directions, facilitating efficient and synchronized data exchange.
Space-Saving Design: The LC connector is designed to be compact in a small form factor measured approximately 10.75mm in width and 8.45mm in height, allowing for high-density fiber optic cable installations in limited space.
Corning/YOFC Fiber

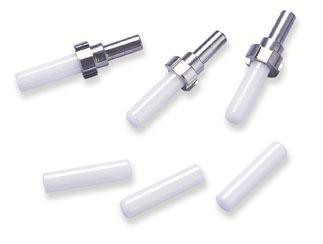

CCTC Ceramic Ferrules
High quality connector
High quality fireproof material
Our Brand Confidence Comes from a Strong Production Team

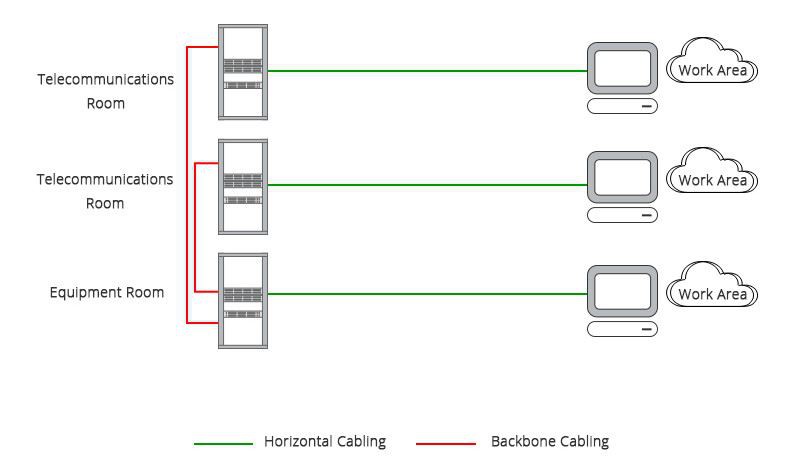

Applications
CATV
LAN
FTTH
Communication System
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Order Information
SM or MM
End-face Angle
Cable Color
Length
| 1 | 1m |
| 2 | 2m |
| 3 | 3m |
| 4 | ... |
| 5 | Custom |
The Diameter of Cable
| 1 | 2.0mm |
| 2 | 2.8mm |
| 3 | 3.0mm |
| 4 | 4.0mm |
How We can Stand by You
Quick response within 24 hours
One-to-one consulting Service
Professional technical team support (RL can even reach 85dB/ Grade B connectors)
Super strict quality control (Real 1000 times plug experiment)
Huge production capacity
Never change prices arbitrarily
OPTICO provides a full set of fiber optic patch cord customization services, such as fiber optic connectors, length, color, fiber grade, specifications, materials, packaging, etc.
Hot Tags: lc lc duplex patch cord om4, China, manufacturers, suppliers, factory, wholesale, customized, fiber multimode patch cord, fiber optic patch cord multimode, lc to lc fiber patch cable, duplex lc fiber connector, SMF E2000 APC E2000 APC Patch Cord, single mode lc lc patch cord
| Specifications | SC,LC,FC,E2000 | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 | 1310, 1490,1550 | 850,1300 | 1310,1490,1550 | 850,1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| Interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 | ||||||
