Product Profile

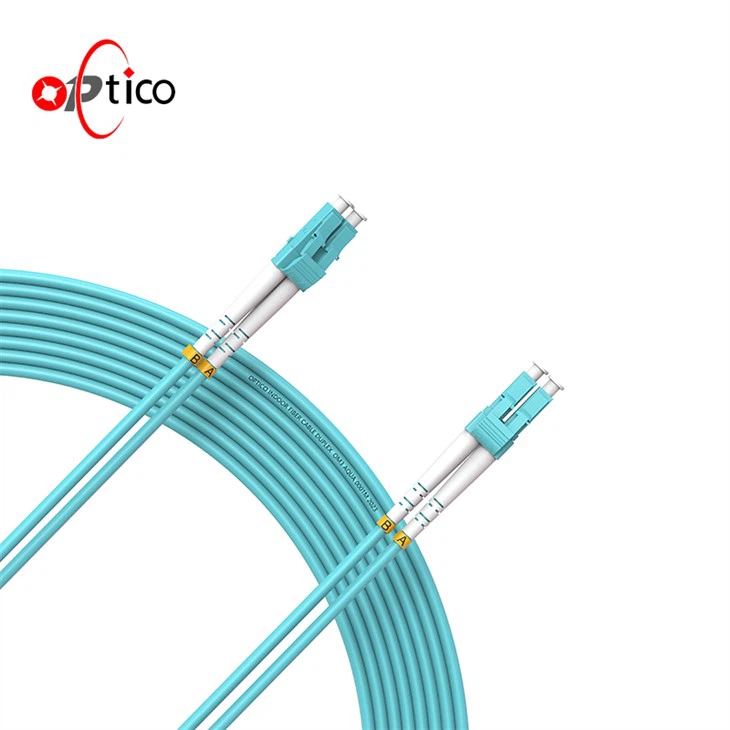

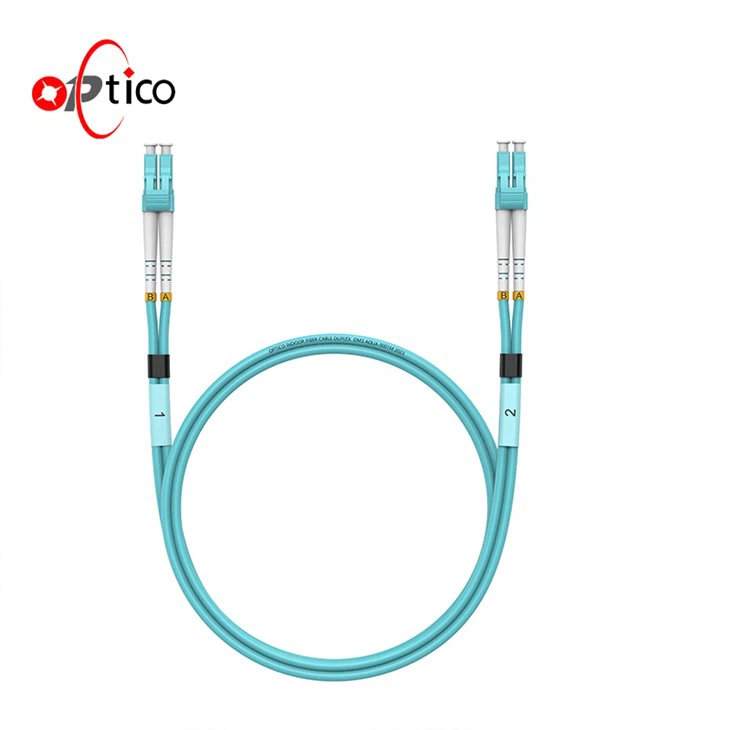

The LC UPC OM4 Patch Cord Duplex is a type of fiber optic patch cord that features LC connectors on both ends and is designed for high-speed and reliable fiber optic connections. The OM4 designation indicates that the patch cord is made with OM4 multimode fiber, which supports faster data transmission rates and longer distances compared to earlier OM standards.
OPTICO bend insensitive fiber optic patch cords use G.657.A1 fiber by default, which is suitable for the transmission system of 1260nm - 1625nm and can be compatible with existing G.652.D fiber. With the characteristics of low loss and high transmission rate, it can fully meet the special requirements for bending performance of small-sized optical devices and high-density applications.
Product Features
Enhanced Performance: The use of OM4 multimode fiber features low signal attenuation of 3.0 db/km at 850nm and maximum insertion loss of 0.25dB, allowing for faster data transmission and extended reach compared to lower-grade multimode fibers like OM1 or OM2.
Compact and Flexible Design: The LC UPC connectors of LC UPC OM4 Patch Cord Duplex are small form factor connectors, which help maximize the available space and allow for efficient cable management.
Duplex Configuration: This patch cord consists of two separate fiber strands for simultaneous bidirectional communication. In case of a fiber failure or damage, the duplex duplex fiber optic patch cord provides a redundant path for data transmission and can still maintain network connectivity.
Customizable Lengths: The LC UPC OM4 Patch Cord Duplex is available in various lengths to accommodate different installation requirements and network setups.
Specifications
| Specifications | SC,LC,FC,E2000 | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Work Wavelength (nm) | 1310,1490,1550 | 850,1300 | 1310, 1490,1550 | 850,1300 | 1310,1490,1550 | 850,1300 | |
| Insertion Loss(dB) | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability(dB) | ≤0.10 | ||||||
| interchangeability(dB) | ≤0.20 | ||||||
| Plug Testing(time) | ≥1000 | ||||||
| Tensile Strength(N) | 0.9mm(9N);2.0mm(70N);3.0mm(75N) | ||||||
| Durability(dB) | ≤0.20 | ||||||
| Operation Temperature(°C) | -40~+75 | ||||||
| Storage Termperature(°C) | -40~+85 | ||||||
Corning fiber
CCTC Ceramic ferrule
Insensitive to bending
Bunch round cable reduces installation risk
Our brand confidence comes from a strong production team
Applications
FTTX
CATV
Data center
Original factory production
3D test
Temperature test
IL/RL test
Certificates
CE
CPR
ISO
ROHS
Order notice
End face angle type
The color of cable
The length of cable
| 1 | 1m |
| 2 | 2m |
| 3 | 3m |
| 4 | ... |
| 5 | Custom |
The diameter of cable
| 1 | 2.0m |
| 2 | 2.8mm |
| 3 | 3.0mm |
| 4 | 4.0mm |
Mission will be achieved in 7-15 days
How we can stand by you
Quick response within 24 hours
One-to-one consulting Service
Professional technical team support (RL can even reach 85dB/ Grade B connectors)
Super strict quality control (Real 1000 times plug experiment)
Huge production capacity
Never change prices arbitrarily
G.657 optical fiber in LC UPC Duplex OM4 Patchcord has improved macro-bending loss, and can guarantee very low macro-bending loss under a very small bending radius. Therefore, it can be used for small-volume fiber-containers and devices with small bending radius in telecommunications equipment rooms, user premises or apartments. In, it is a cost-effective fiber optic cabling solution.
