Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 12f mtp os2 backbone patch cord female in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

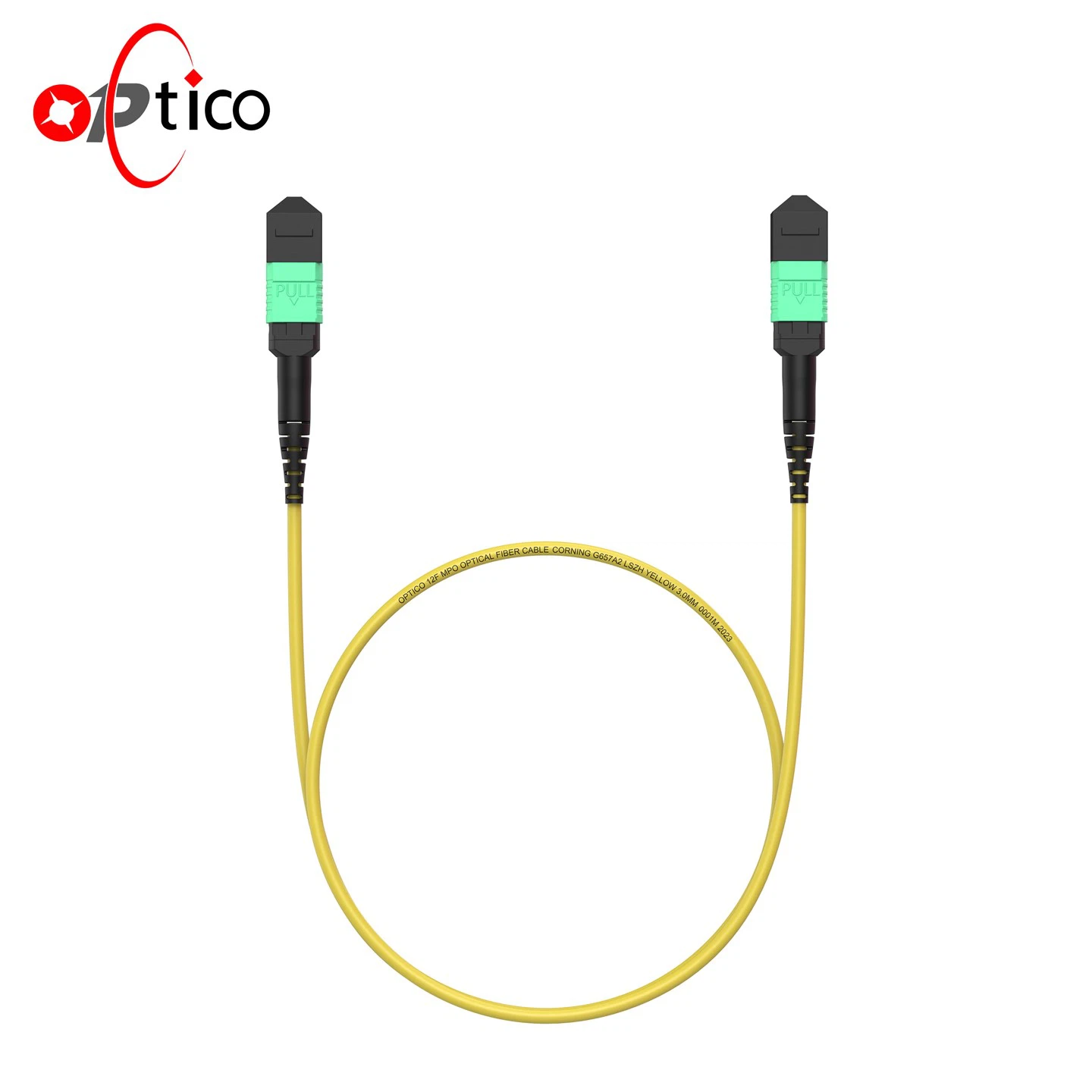

The 12F MTP OS2 Backbone Patch Cord Female is a high-performance fiber optic cable designed to meet the demands of high-bandwidth applications in data centers.
With its advanced features and cutting-edge technology, 12F MTP OS2 Backbone Patch Cord Female provides reliable and efficient data transmission, making it an ideal choice for modern network infrastructures.
12F MTP OS2 Backbone Patch Cord Female adopts US Conec MTP connector and Corning Clearcurve fiber core, fully targeting 40G LR4 PSM, 40G QSFP+ PLR4 and other optical module direct connection solutions and applications in high-density data centers.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
High Performance
The 12F MTP OS2 Backbone Patch Cord Female boasts a low insertion loss ≤0.75dB and high return loss ≥60dB, ensuring high-performance data transmission with minimal signal degradation.
Robust and Durable

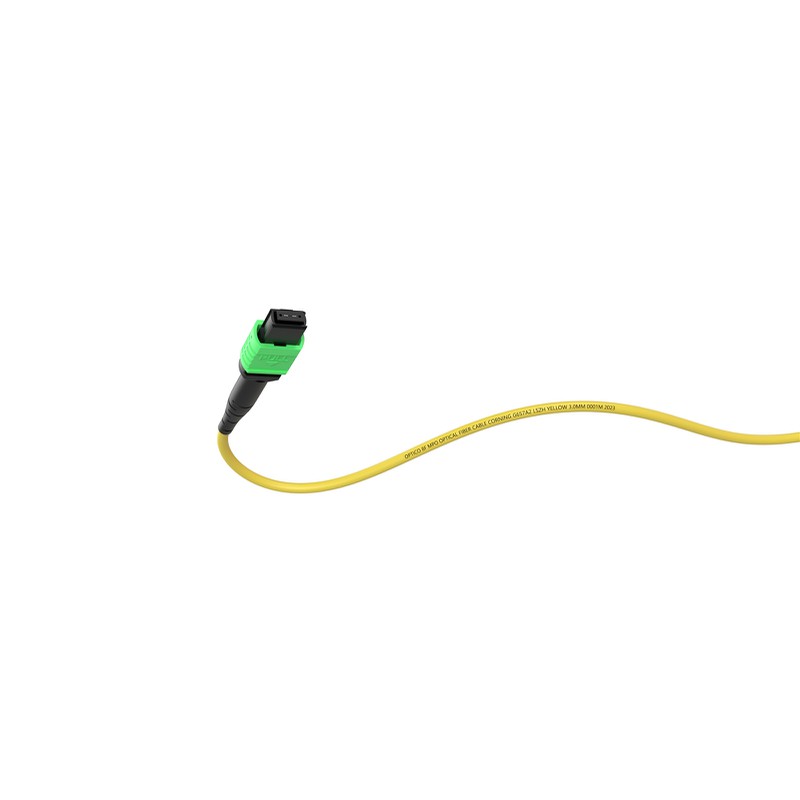

Constructed with high-quality materials and insensitive to bending, Fiber MTP Cable is suitable for demanding environments in data centers.
Versatile Connectivity
With a Fiber Channel termination and support for 40G/100G Ethernet, Fiber MTP Cable caters to various high-bandwidth applications, making it a versatile solution for diverse networking needs.
Customizable Packaging
OPTICO's Fiber MTP Cable packaging is meticulously designed with a focus on perfection, simplicity, and environmental friendliness.
Customized label and packaging services are available to cater to individual customer needs.
Corning fiber(Low IL)
US Conec MTP connector
High-quality environmentally friendly materials
Insensitive to bending
our brand confidence comes from a strong production team
applications

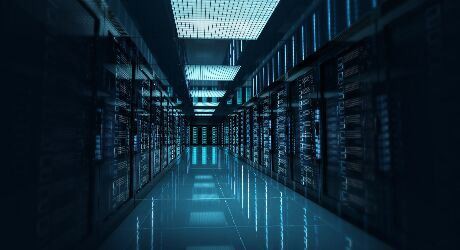

SAN Data center local area networks
Rising 40G&100G agreement
LAN/Transceiver device
100% strictly tested before delivery
IL/RL test
3D test
Temperature test
order notice
Polarity
| 1 | A |
| 2 | B |
| 3 | C |
Male or Female
The diameter
| 1 | 3.0mm |
| 2 | 3.5mm |
| 3 | 4.3mm |
The length
| 1 | 1m |
| 2 | 2m |
| 3 | 3m |
| 4 | ... |
| 5 | Custom |
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Utilize a high-performance switch with a 25G SFP28 Optical Transceiver Module, the data transmission rate can reach speeds of 25.78 Gb/s.
b. Fiber Connection Method
Connect equipment using LC UPC to LC UPC Duplex OM4 Multimode Patch Cord or MTP Patch Cord 12 Cores.
c. Fiber Cabling Management:
Incorporate MTP-12 Cassette (12 Fibers OM4 Multimode, MTP to 6 x LC Duplex) and High-Density 1U Rack Mount Enclosure with a sliding drawer to organize cables and reduce clutter.
Alternatively, use 24F 2×12F MPO-6LC MPO Cassette OM3, Quad LC in the same 1U Rack Mount Enclosure.
2. Core to Access Connection
Employ 24F 2×12 MPO Trunk Cable OM3 Female or 24F MPO-MPO Female Trunk Cable OS2 for the core-to-access connections.
3. Access Cabling Solution
This follows the same specifications as the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
OPTICO's 12F MTP OS2 Backbone Patch Cord Female packaging strives for perfection, simplicity and lightness, green and environmental protection, and comprehensive protection of goods. In addition, we can also provide customized services for labels and packaging according to the different needs of customers.
