Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 24 fiber mpo/mtp patch cord in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
With its cost-effective and time-saving features, this 24 Fiber MPO/MTP Patch Cord offers a convenient solution for connecting multiple fibers in data centers. The MTP/MPO interface and premium connectors guarantee superior optical and mechanical performance.
With optimized performance and low insertion losses, 24 Fiber MPO/MTP Patch Cord ensures reliable connectivity in high-speed network environments. It undergoes rigorous testing to meet the highest standards of quality and reliability.
Product specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Various Fiber Counts and Types
Choose from 4, 8, 12, 24, or 48 fiber options, with both single-mode and multimode fiber types available. This flexibility of 24 Fiber MPO/MTP Patch Cord allows for seamless integration into different network environments and applications.
Rapid Deployment, High Density, and High Reliability
The MTP Female to MTP Female Trunk Cable is designed for rapid deployment in high-density environments, such as data centers. Its reliable performance ensures seamless connectivity and minimizes network disruptions.
Extremely Low Insertion Loss and High Return Loss
24 Fiber MPO/MTP Patch Cord offers excellent optical performance with extremely low insertion loss and high return loss, maximizing signal integrity and reducing transmission errors.
Telcordia GR-1435-CORE Issue 2 Compliant
The trunk cable complies with the Telcordia GR-1435-CORE Issue 2 standard, which guarantees high-quality and reliable performance.

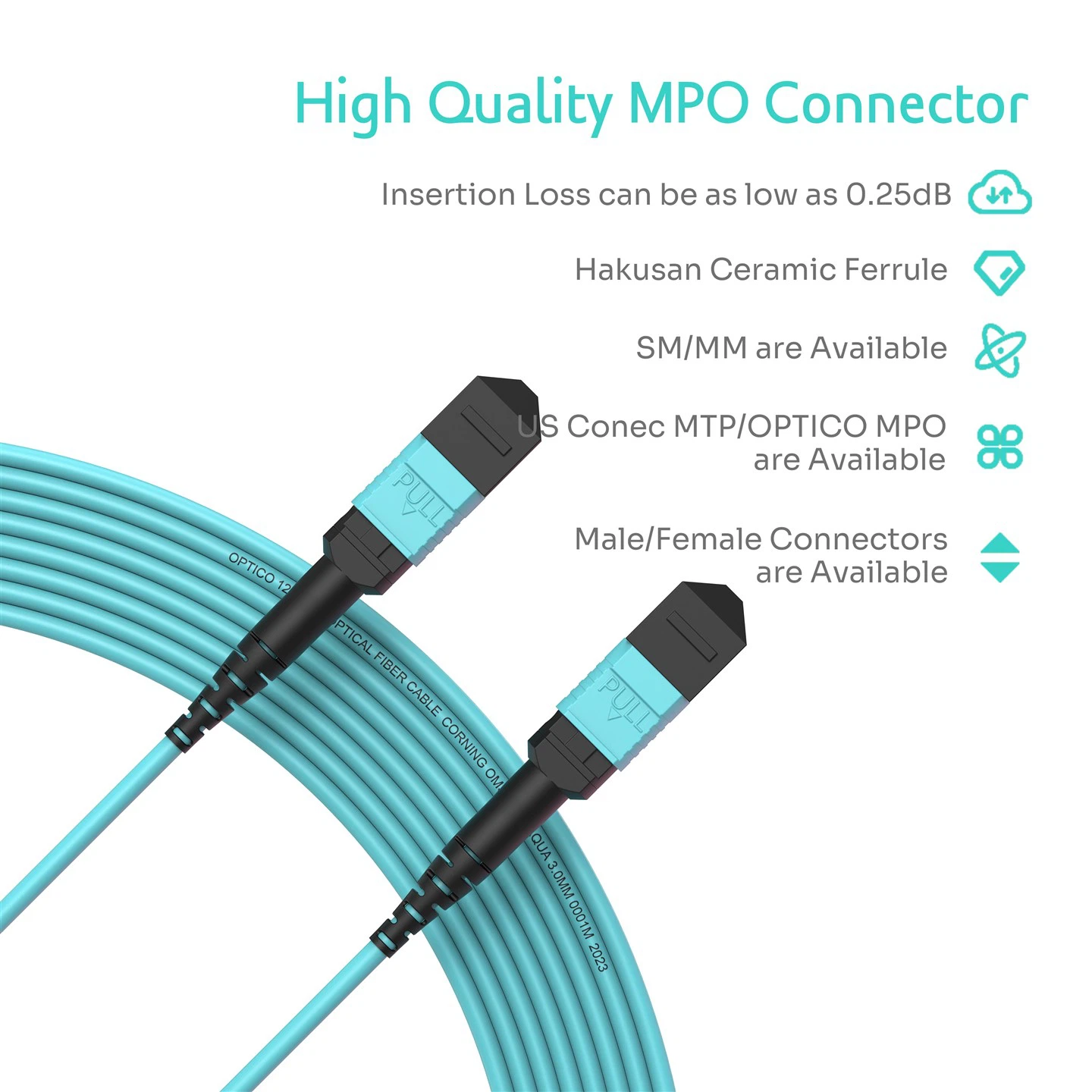

Corning/YOFC Fiber
All our MPO ferrules are from Hakusan

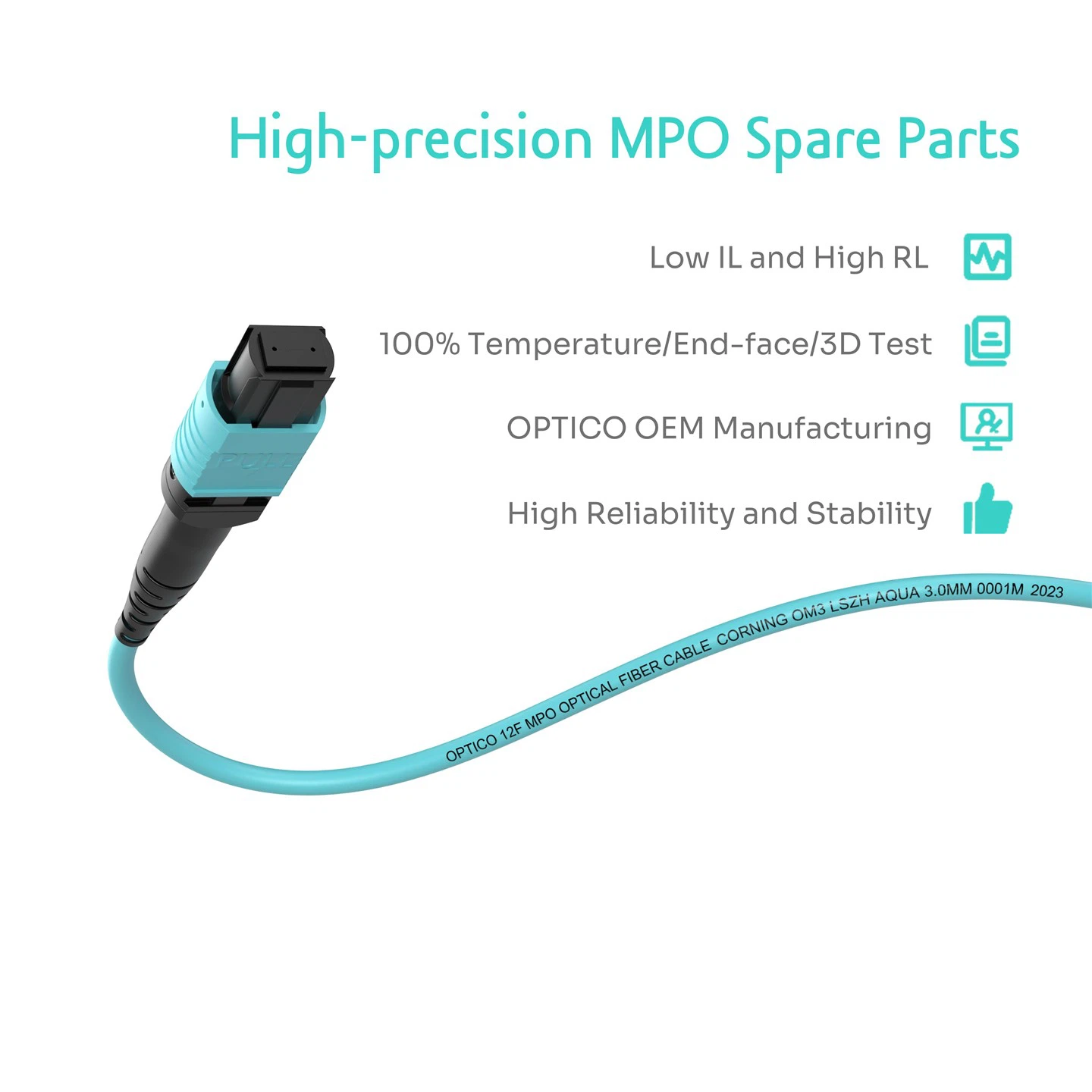

0.35dB Low IL and stable signal transmission ensuring your network safety
12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
Our Brand Confidence Comes from a Strong Production Team
100% Tested Before Delivery
IL/RL test
3D test
Polarity test
Scenes of applications
8-core MTPMPO branch fiber jumper realizes direct connection from 40G SR4 to 10G SR
12-core MTPMPO backbone jumper and 40G adapter panel realize 10G to 40G network upgrade
40G SR4 and 12-core MTPMPO trunk fiber jumper directly
Production Drawing
OPTICO own a powerful team of engineers, production instruction drawings, logos, colors, connectors, number of cores, and other special requirements can be customized.
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Utilize a high-performance switch with a 25G SFP28 Optical Transceiver Module, the data transmission rate can reach speeds of 25.78 Gb/s..
b. Fiber Connection Method
Connect equipment using LC UPC to LC UPC Duplex OM4 Multimode Patch Cord or MTP Patch Cord 12 Cores.
c. Fiber Cabling Management:
Incorporate MTP-12 Cassette (12 Fibers OM4 Multimode, MTP to 6 x LC Duplex) and High-Density 1U Rack Mount Enclosure with a sliding drawer to organize cables and reduce clutter.
Alternatively, use 24F 2×12F MPO-6LC MPO Cassette OM3, Quad LC in the same 1U Rack Mount Enclosure.
2. Core to Access Connection
Employ 24F 2×12 MPO Trunk Cable OM3 Female or 24F MPO-MPO Female Trunk Cable OS2 for the core-to-access connections.
3. Access Cabling Solution
This follows the same specifications as the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
how we can stand by you
- Quick response within 24 hours
- One-to-one consulting Service
- Professional technical team support (RL can even reach 85dB/ Grade B connectors)
- Super strict quality control (Real 1000 times plug experiment)
- Huge production capacity
- Never change prices arbitrarily
Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes.
MTP/MPO interface MTP/MPO components feature superior optical and mechanical properties.
Optimized performance Low loss MTP/MPO, discrete Premium connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget, high-speed network environments.
Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.
