Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 72f mtp mpo patch cord om4 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

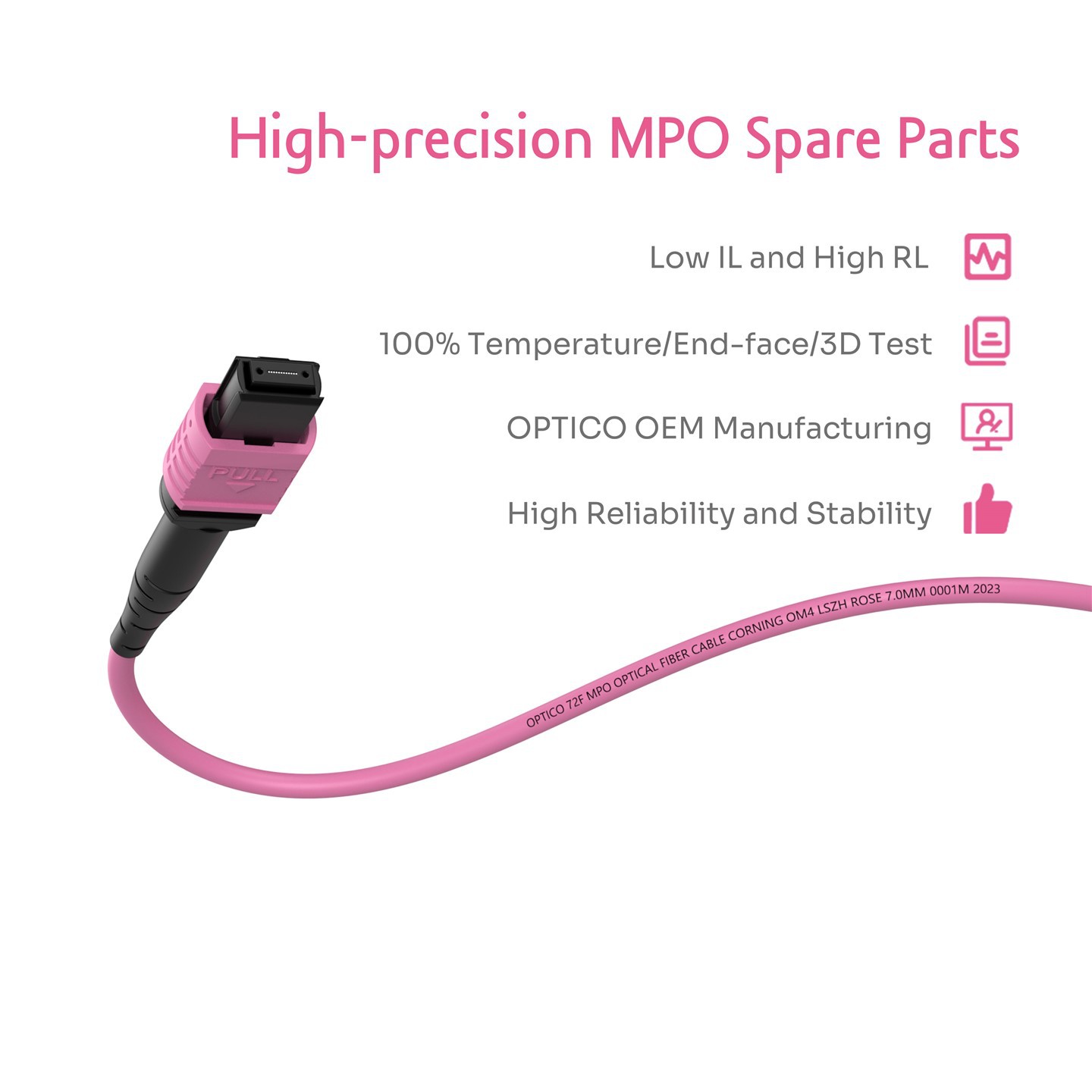

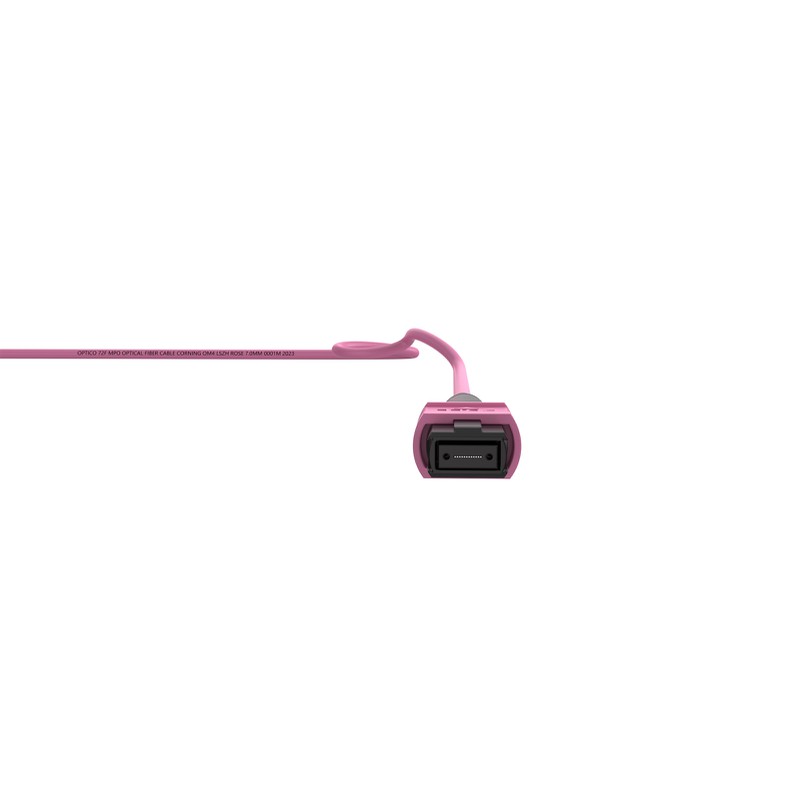

The 72F MTP MPO Patch Cord OM4 is pre-terminated with six high-performance MPO-12 connectors on both ends using Corning bent insensitive fiber for optimal functionality and reliability. The MPO-12 connector is roughly the same size as the SC connector, but can be up to 12 times denser, resulting in significant space and cost savings.
High density MPO trunk cables are commonly used in high-density data center environments to enable fast and reliable data transmission over fiber optic networks.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 72 Fibers |
| Fiber Mode |
OM4 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |

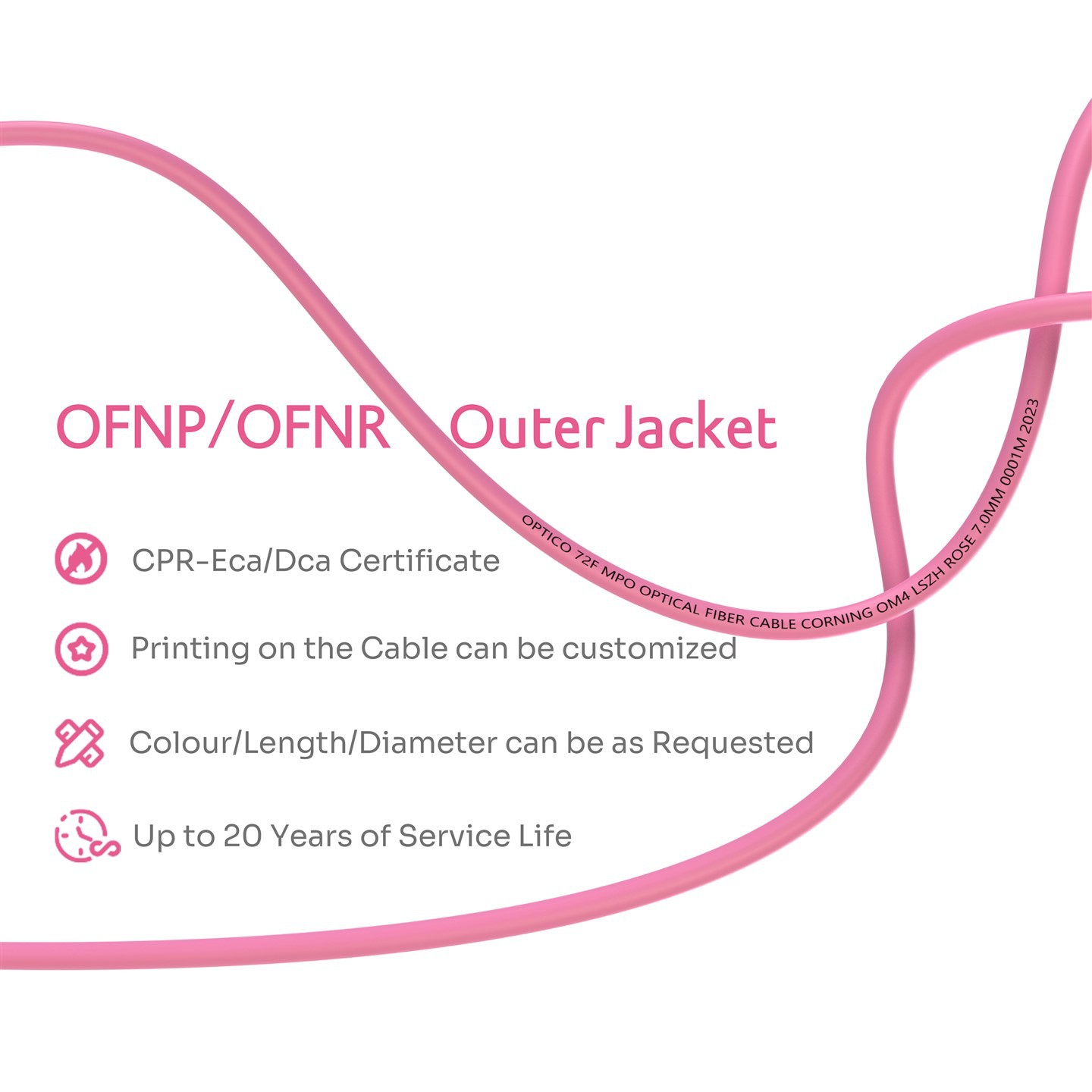

| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Rose |
| Cable Diameter(mm) | 7.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
High Density Connection
Designed for permanent links, these cables facilitate the seamless connection of MPO modules, offering options ranging from 12 to an impressive 144 fibers. This versatile range makes them ideal for diverse applications, supporting data center solutions with speeds reaching up to 10/40/100 Gbps.
Low Insertion Loss, High Return Loss
One of the standout features of the 72F MTP MPO Patch Cord OM4 is its ultra low insertion loss ≤0.25dB and high return loss ≥35dB, ensuring optimal signal transmission efficiency. This makes it a go-to solution for high-performance data networks.
Compact Design for Improved Airflow
The compact design of 3.0mm cable diameter and small connector with high fiber counts optimize cable pathways, enhancing airflow within data center environments. This not only contributes to the overall efficiency of the network but also ensures a tidy and well-managed cable infrastructure.
Economical Fiber Optic Termination
Each MPO/MTP multi-fiber connector comprises 12 x 50/125 micron fibers, housed in a robust, fire-resistant, waterproof, and electromagnetic interference-free jacket. The batch termination of optical fibers enhances efficiency and streamlines deployment in high-density environments such as data centers.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
FAQ
Q: How is the insertion loss minimized in this patch cord?
Q: What economic advantages does this patch cord offer for fiber optic termination?
Q: Is the 72F MTP MPO Patch Cord OM4 suitable for long-distance fiber connections?
Q: Are there any specific maintenance requirements for the 72F MTP MPO Patch Cord OM4?
(1)Regular Inspections: Periodically inspect the patch cords for any signs of physical damage, such as bends, kinks, or connector issues. Early detection of problems can prevent issues from escalating.
(2)Cleaning: Keep the connectors clean by using appropriate cleaning tools and solutions. Contaminants on the connectors can lead to increased insertion loss and impact signal quality.
(3)Avoid Overlapping or Stress: When routing and managing cables, avoid overlapping or stressing the patch cords. Ensure that they have adequate slack and are not subjected to excessive tension.
(4)Document Connections: Maintain accurate documentation of the patch cord connections and configurations. This documentation can be invaluable during troubleshooting or when making changes to the network infrastructure.
(5)Replacement of Damaged Cords: In case of damage or wear, replace damaged patch cords promptly to maintain optimal performance and prevent signal degradation.
