Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 36f 3x12f mtp mpo to 3x12f mtp mpo trunk cable os2 apc in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
OPTICO's MTP/MPO Trunk Cable Series provides a rapid solution for multiple connections, especially for applications such as data centers that require high density, rapid deployment, and high data performance.
OPTICO's high-precision MTP/MPO components are factory-tested and pre-terminated for ultra-low losses, high stability and reliability. We are committed to providing high-quality customized optical fiber solutions, such as fiber counts, fiber mode, connector type, fiber cable length, fiber cable printing, fiber cable color, etc., to meet the specific needs of different customers.
MPO MTP fiber breakout cable can operate in a wide temperature range of -20ºC to +85ºC, with a storage temperature range of -40°C to +85°C, ensuring high-performance data transmission even in extreme environments.
Using Corning bend-insensitive optical fiber, the MPO MTP fiber breakout cable maintains signal integrity even with repeated bending or twisting.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 36 Fibers |
| Fiber Mode |
OS2 |
| Connector Type | US Conec MTP/OPTICO MPO Male/Female |
| Polarity | Type A/B/C |

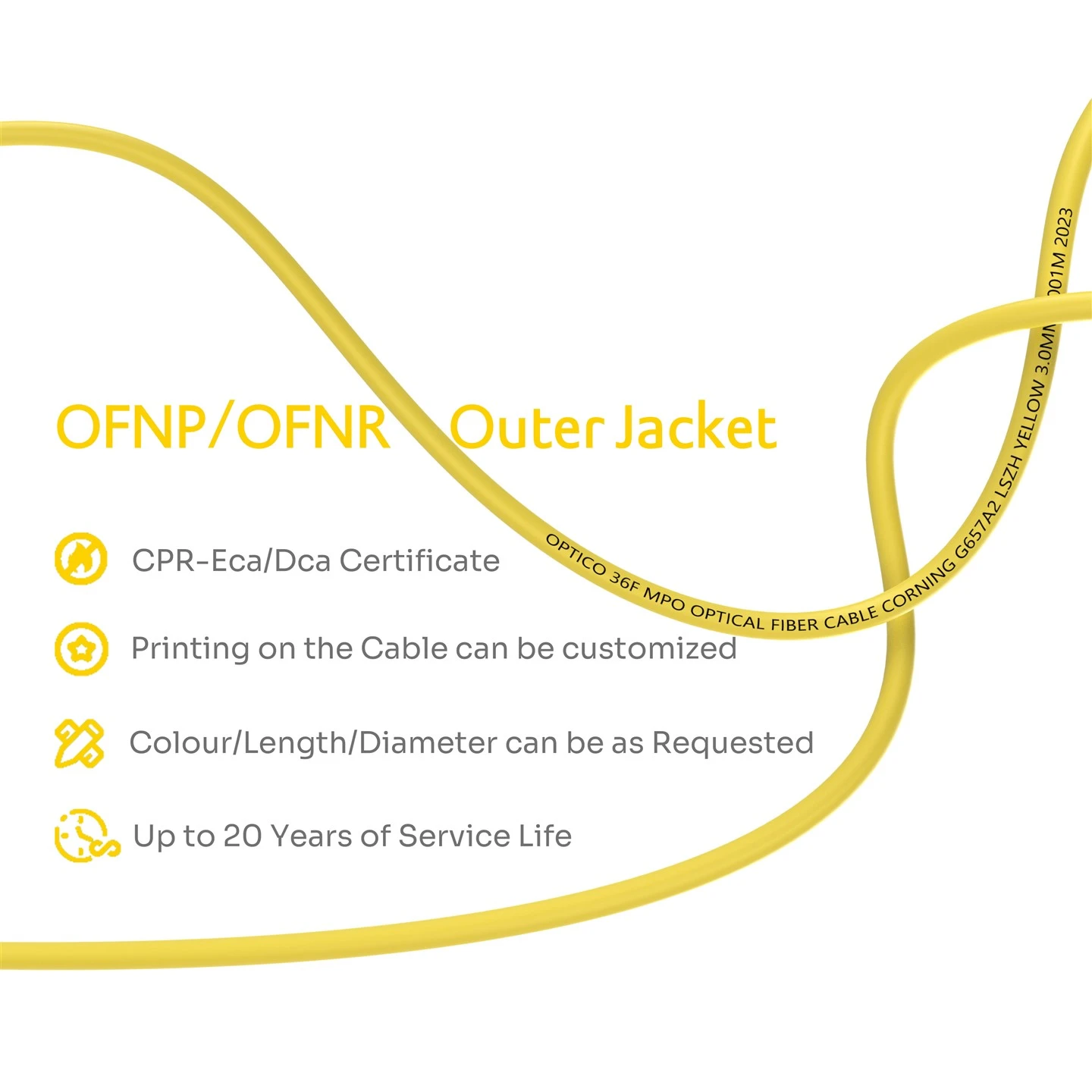

| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
MPO MTP fiber breakout cable caters to diverse needs by offering a range of fiber and cable options.
OPTICO provides different MT ferrules (Base-12, Base-16, Base-24, Base-48). Depending on the specified optical cable structure, it can provide trunk fiber optic patch cords from 8 to 288 cores, and can also provide high-core-count ribbon cable connection solutions.
The factory-terminated nature of MPO MTP fiber breakout cable significantly reduces installation and reconfiguration time during moves, adds, and changes. Configurable length assemblies further contribute to efficient cable management by minimizing slack and patch field congestion.
Premium MPO connectors with low loss and bend-insensitive fiber contribute to optimized performance of the MPO patch cord, reducing signal losses and minimizing power penalties. Each MPO assembly undergoes 100% factory testing, ensuring reliable connectivity that adheres to TIA 568 and IEC 61754 standards.
MPO patch cords future-proof networks by supporting next-generation speeds. Their modular connectivity facilitates smooth migration plans for evolving network requirements, accommodating speeds like 400G and 800G.
applications
High Density Data Center
Backbone Network
Optical Module Connection
our brand confidence comes from a strong production team
100% strict performance tests
IL/RL Test
3D Test
End Face Test
Temperature Test
certificates
CE
CPR
ISO
RoHS
full ranges of reliability tests from third-party lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
ordering process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
how we can stand by you
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
after-sales services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
Hot Tags: 36f 3x12f mtp mpo to 3x12f mtp mpo trunk cable os2 apc, China, manufacturers, suppliers, factory, wholesale, customized, mtp om4 patch cord, 12 fiber om4 cable, mpo fiber jumper, MTP MPO Patch Cable, om3 multimode fiber, mtp mtp jumper
