Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 8f mpo-mpo female trunk cable om3 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
The 8F MPO-MPO Female Trunk Cable OM3 offers a robust and durable connectivity solution, designed to excel in various high-density cabling environments.
Crafted with a focus on quality and performance, 8F MPO-MPO Female Trunk Cable OM3 ensures reliable and high-speed data transmission for modern networking requirements.
The 8F MPO-MPO Female Trunk Cable OM3 is rigorously tested before leaving the factory, for example, Sumix 3D test/loss test/high and low-temperature cycle test, etc., to ensure that the end face is spotless and the insertion loss and return loss meet international telecommunication standards.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 8 Fibers |
| Fiber Mode |
OM3 |
| Connector Type | MPO Female |
| Polarity | Type A/B/C |

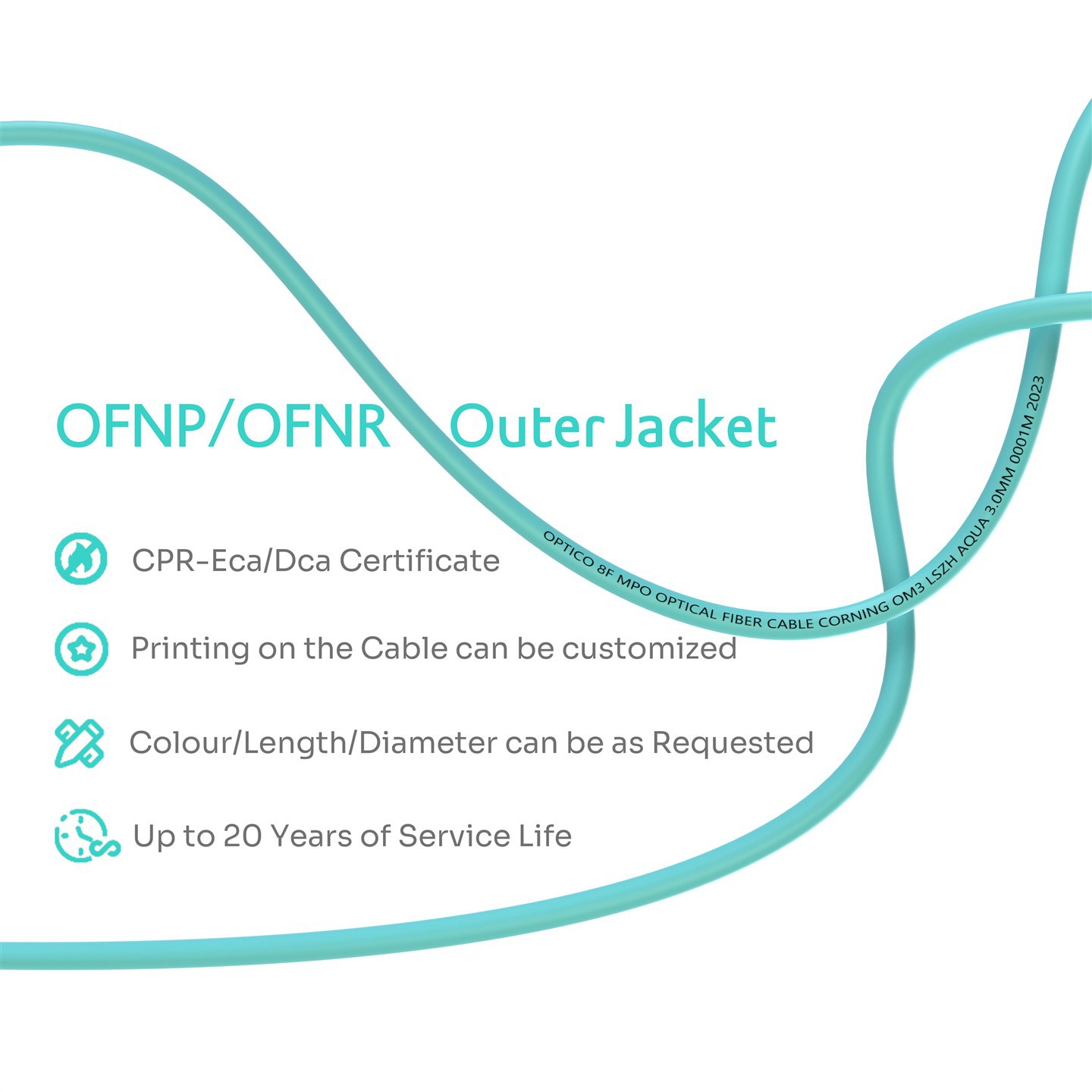

| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Aqua |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius(mm) | 7.5 |
| Fiber and Boot Length |
Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Various Fiber Counts and Types
Choose from 4, 8, 12, 24, or 48 fiber options, with both single-mode and multimode fiber types available.
Incorporating premium Corning fiber cores which supports a minimum bend radius of 7.5mm, the 8F MPO Female Trunk Cable OM3 is resistant to bending and compression, ensuring a stable and speedy transmission process.
Dust Cap Protection
Each MPO connector of 8F MPO Female Trunk Cable OM3 is equipped with a matching dust cap, mitigating the risk of connector damage and extending the overall lifespan.
Effortless Connectivity
The 8F MPO-MPO Female Trunk Cable OM3 features a simple integrated push-pull locking mechanism that allows for easy insertion and removal, particularly beneficial in high-density applications.
Compact and Space-saving Design
With 8 fibers in one cable, this MPO trunk cable requires less physical space when connecting to a limited number of cabinets or devices, particularly suitable for high-density data center environments.
Applications
High Density Data Center
Backbone Network
40G/100G Network Upgrade
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Equip with a high-performance switch and 25G SFP28 Optical Transceiver Module, the data transmission rate can reach 25.78 Gb/s.
b. Fiber Connection Method:
Utilize 12 Cores MPO-LC Fanout Fiber Optic Cable or MTP Patch Cord 12 Cores to connect Equipment.
Alternatively, we can use 8F MPO-MPO Female Trunk Cable OM3 to connect.
c. Fiber Cabling Management:
Use 12 Port MTP Panel,and High-Density 1U Rack Mount Enclosure Unloaded Sliding Drawer to store and organize cables to avoid clutter.
2. Core to Access Connection
Apply 24F 2×12 MPO Trunk Cable OM3 Female or 24F MPO-MPO Female Trunk Cable OS2 to connect the core and access.
3. Access Cabling Solution
Same as the core cabling solution.
Certificates
Full Ranges of Reliability Tests from Third-party Lab
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
After-sales Service
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
