Product Profile

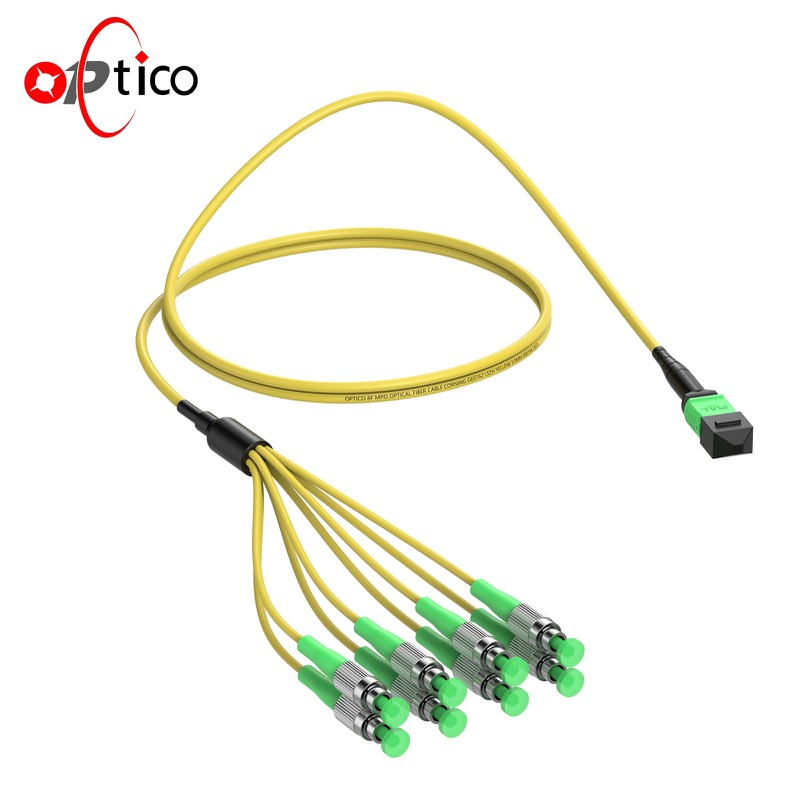

The 8F MTP MPO To FC Breakout Cable OS2 APC emerges as a reliable solution for high-performance data centers. This single-mode fanout cable boasts Corning SMF Singlemode 9/125 fiber, ensuring optimal data transmission.
Plenum-rated jackets are designed to meet stringent fire safety standards. In the case of a fire, the jacket emits minimal smoke and low levels of toxic gases, reducing potential harm in critical situations. Beside, the design of fiber cable supports neat and organized cable routing, reducing cable clutter and making it easier to manage multiple cables within a limited space.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 8 Fibers |
| Fiber Mode |
OS2 |
| Connector Type | Connector A: US Conec MTP/OPTICO MPO; |
| Connector B: LC/SC/FC/ST | |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
The breakout side features 12 FC simplex connectors, utilizing Angled Physical Contact (APC) polish. This design ensures superior performance compared to standard UPC cables, making it ideal for critical applications where precision matters.
The combination of MTP/MPO connector and Corning SMF-28® ultra fiber elevates this cable's capabilities. It achieves higher data transmission rates and less signal attenuation, providing a superior quality assurance guarantee.
Designed as a low-cost alternative to time-consuming field termination, the MTP fanout cable excels in high-density patching scenarios. Perfect for data centers facing space constraints, it simplifies cable management and ensures a reliable connection.
MPO patch cords future-proof networks by supporting next-generation speeds. Their modular connectivity facilitates smooth migration plans for evolving network requirements, accommodating speeds like 400G and 800G.
Applications

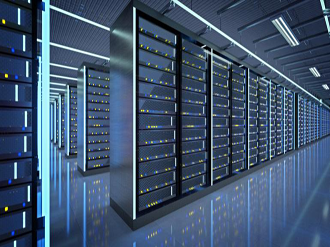

High Density Data Center
Backbone Network
Optical Module Connection
100% Strict Performance Tests

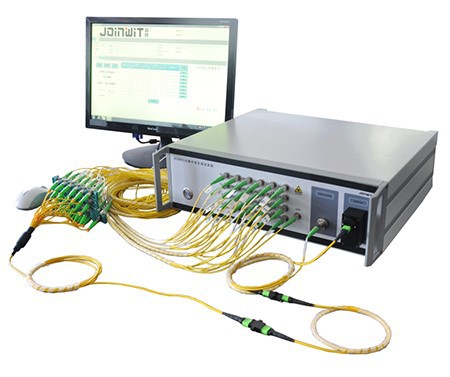

IL/RL Test

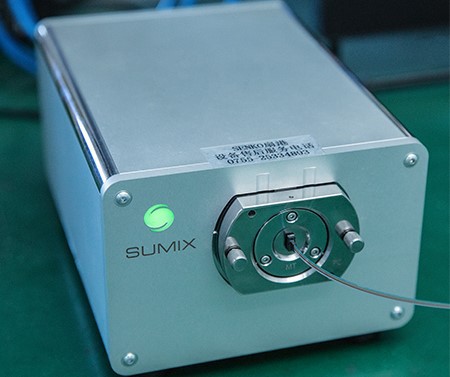

3D Test
End Face Test
Temperature Test
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via:
Phone: +86-755-33532578
Email: sales@fiberopticom.com
WhatsApp: 8619129420326
FAQ
Q: Does the Corning SMF-28 ultra fiber in the cable offer any specific advantages?
Q: Is the 8F MTP MPO To FC Breakout Cable OS2 APC compatible with other MTP/MPO components and equipment?
Q: Why choose a fanout cable like the 8F MTP MPO To FC Breakout Cable OS2 APC?
Q: What is the significance of the Plenum-Rated Jacket (OFNP)?
