Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 8f mtp mpo to fc fan-out cable os2 upc in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

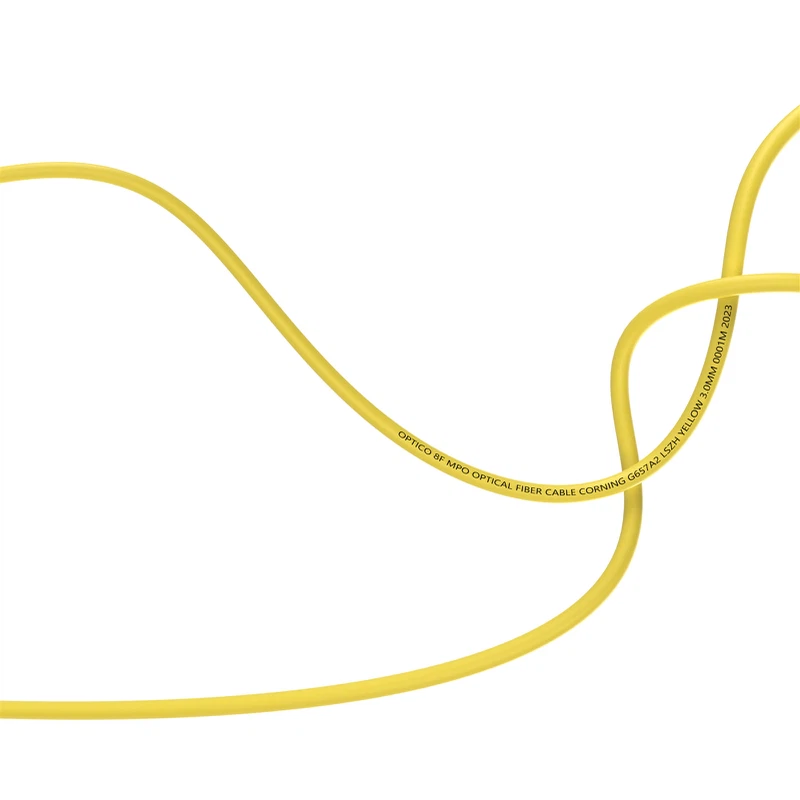

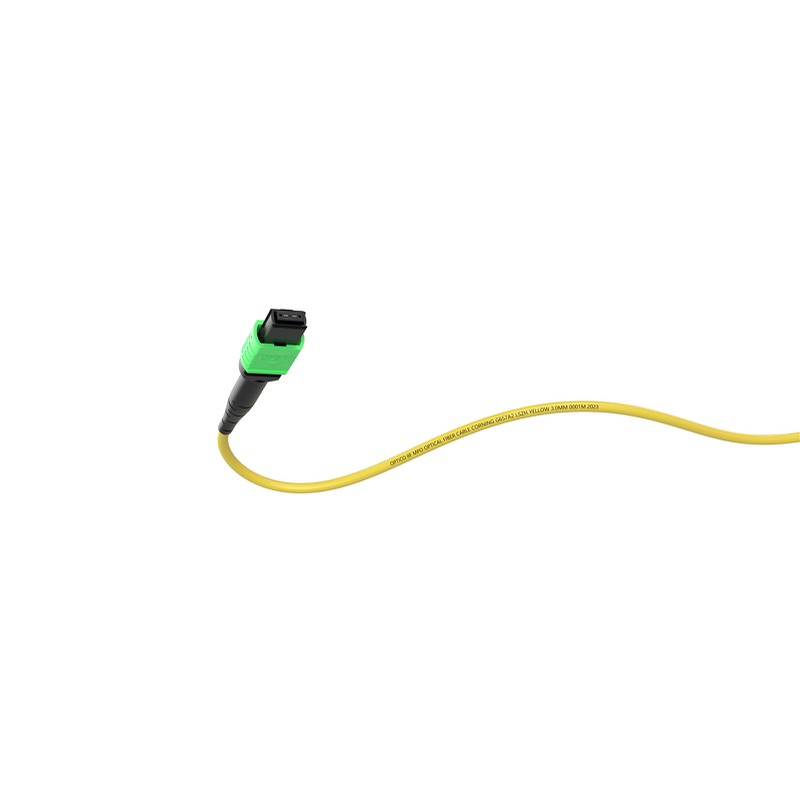

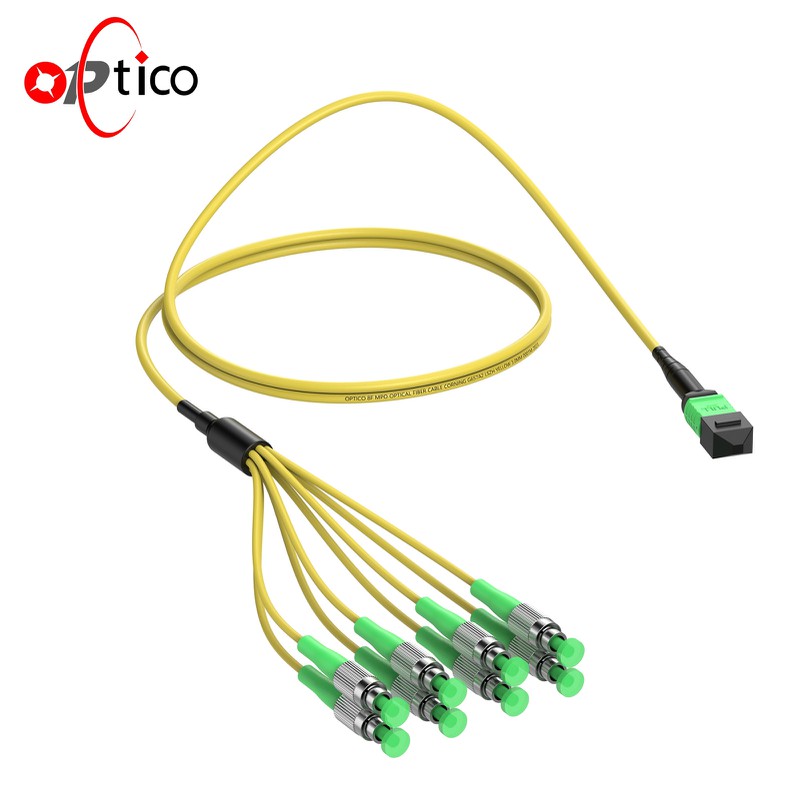

The 8F MTP MPO To FC Fan-out Cable OS2 UPC showcases innovative fiber optic connectivity, providing a customized solution for various uses. Designed to save space, support high-density connections, and have a sturdy build, this cable meets the changing requirements of today's data setups. With a single MPO connector on one end that fans out into eight FC connectors, this cable is designed to optimize front panel space and streamline fiber management.
Product Specifications
| Physical Properties | Parameter |
| Fiber Count | 8 Fibers |
| Fiber Mode |
OS2 |
| Connector Type | Connector A: US Conec MTP/OPTICO MPO; |
| Connector B: LC/SC/FC/ST | |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
The ruggedized array cable features multi-fiber MTP MPO connectors on one end and individual eight FC connectors on the opposite end. This construction allows for a direct connection between the backbone and active equipment.
Customization Options
Tailored to meet diverse connectivity needs, the 8F MTP MPO To FC Fan-out Cable OS2 UPC offers options for female or male MTP connectors, various standard connector interfaces (LC, SC, etc.), and a choice of standard or custom breakout lengths.
Space-Saving Design
The MPO breakout cable features a compact design for a high fiber count in a small space, optimizing front panel space and streamlining fiber management. This is particularly beneficial in environments where space is a critical factor.
Compliance Standards
The MPO fiber patch cord is compliant to industry standards such as IEC-61754-7 and TIA-604-5(FOCIS-5), also complies with CE/CPR/ISO/RoHS international standard, ensuring reliability and adherence to recognized benchmarks in fiber optic connectivity.
Applications
High Density Data Center
Backbone Network
Optical Module Connection
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
FAQ
Q: Can this cable be directly attached to 40G transceivers?
Q: Does the cable support a variety of connector interfaces?
Q: Can I choose custom breakout lengths for the cable?
