Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of mpo mpo bare fiber om3 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Products profile
MPO MPO Bare Fiber OM3 Patch cord is a high-performance fiber optic cable with low insertion loss and high return loss, suitable for use in data centers and telecommunication networks.
OPTICO can provide all aspects of MPO MPO Bare Fiber OM3 patch cords.
Connector types, cable types, and transmission modes can be customized.
The plug-and-play design of MPO MPO Bare Fiber OM3 patch cord facilitates quick and easy installation, saving valuable time and effort during network setup or reconfiguration.
MPO MPO Bare Fiber OM3 cable is capable of operating in a wide temperature range of -40ºC to +85ºC, with the advantages of stable transmission, high reliability, and customizability.
Product specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
High-density fiber count
The MPO MPO Bare Fiber OM3 Patchcord has a high-density fiber count of up to 24 fibers. This allows for efficient use of space and reduces cable clutter
Low insertion loss
MPO MPO Bare Fiber OM3 Multimode has an insertion loss of less than 0.5dB, ensuring minimal signal degradation and maximizing the performance of the fiber optic connection.
High Bandwidth
OM3 fiber is capable of supporting 10GbE and 40GbE applications,High-performance and High Data Transmission
MPO/MTP Connector
The MPO MPO Bare Fiber OM3 Patchcord features MPO/MTP connectors that are easy to use and enable quick deployment.
Corning/YOFC Fiber
All OPTICO MPO ferrules are from Hakusan
High density and speed

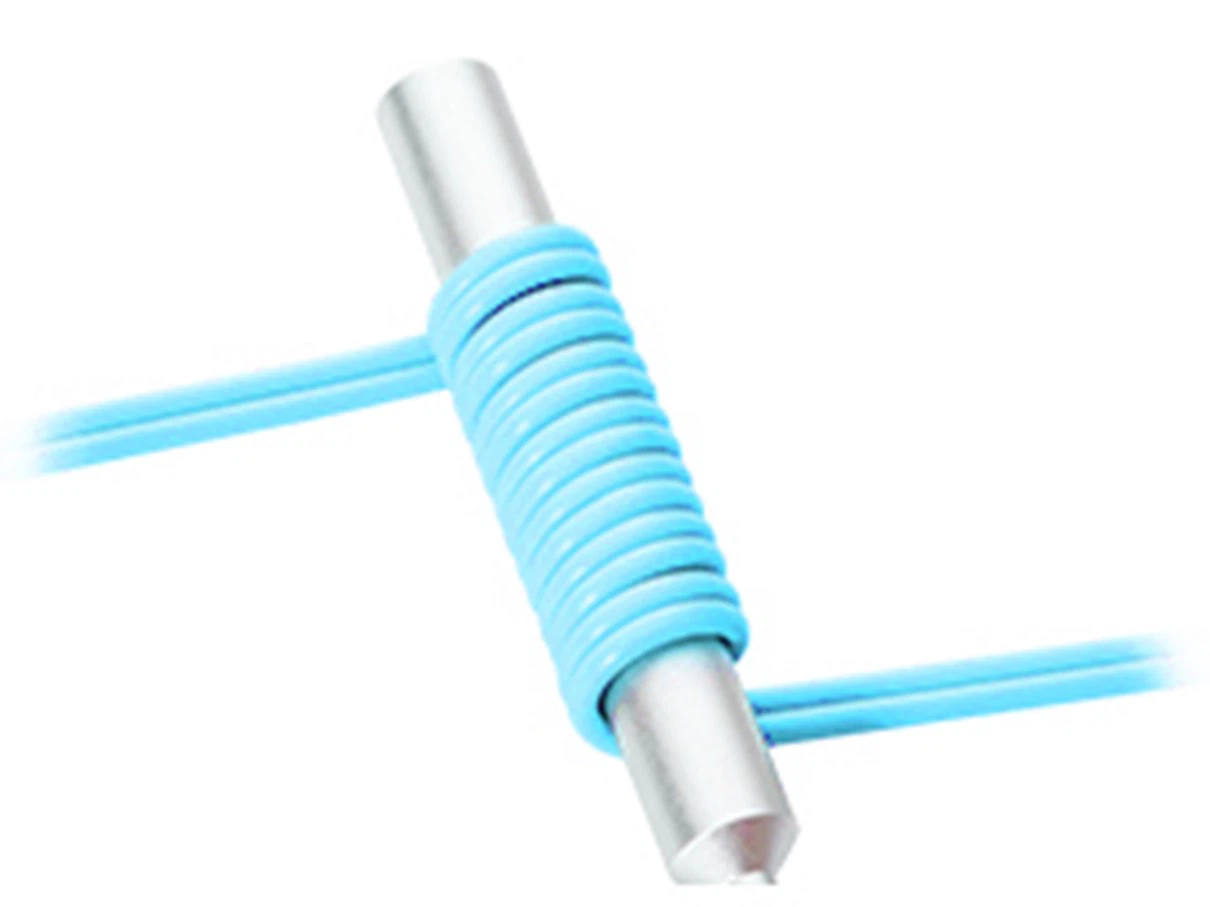

Insensitive to bending
Our Brand Confidence Comes from a Strong Production Team
Applications

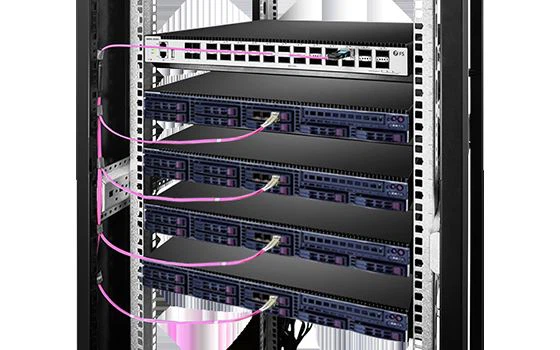

8-core MTPMPO branch fiber jumper realizes direct connection from 40G SR4 to 10G SR
12-core MTPMPO backbone jumper and 40G adapter panel realize 10G to 40G network upgrade
40G SR4 and 12-core MTPMPO trunk fiber jumper directly
100% tested before deliver
IL/RL test

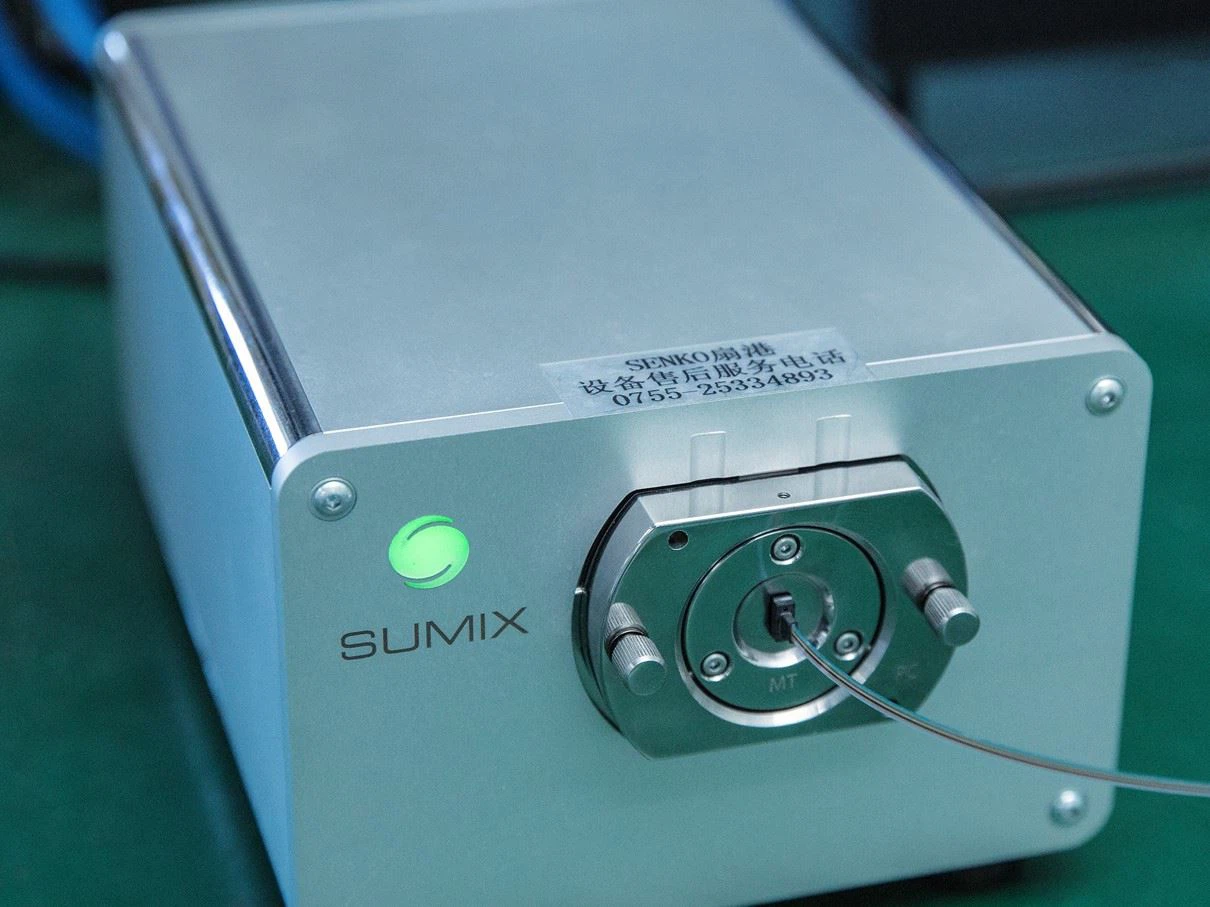

3D test
Polarity test
Purchase guide
| Connector Type | End surface type | Fiber type | Fiber count | Polarity |
| MPO Female | UPC | G652D | 8 | A |
| MPO Male | APC | G657A1 | 12 | B |
| MTP Female | G657A2 | 24 | C | |
| MTP Male | G657B3 | ... | ||
| Custom |
Production Drawing
OPTICO own a powerful team of engineers, production instruction drawings, logos, colors, connectors, number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
10G Trunk Cabling Solution
a. Connection Equipment: This solution features a high-performance switch equipped with SFP-10G-SR 850nm 150m Optical Transceiver Module.
b. Fiber Connection Method: Utilize 16F MPO-MPO Female Trunk Cable OM3, LSZH, 0.35dB
c. Connection Equipment: This solution is also equipped with SFP-10G-SR 850nm 150m Optical Transceiver Module and a high-performance switch.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery Time(7-15 Days)
How we can stand by you
Quick response within 24 hours
One-to-one consulting Service
Professional technical team support (RL can even reach 85dB/ Grade B connectors)
Super strict quality control (Real 1000 times plug experiment)
Huge production capacity
Never change prices arbitrarily
