Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of mpo mpo 12cores om3 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

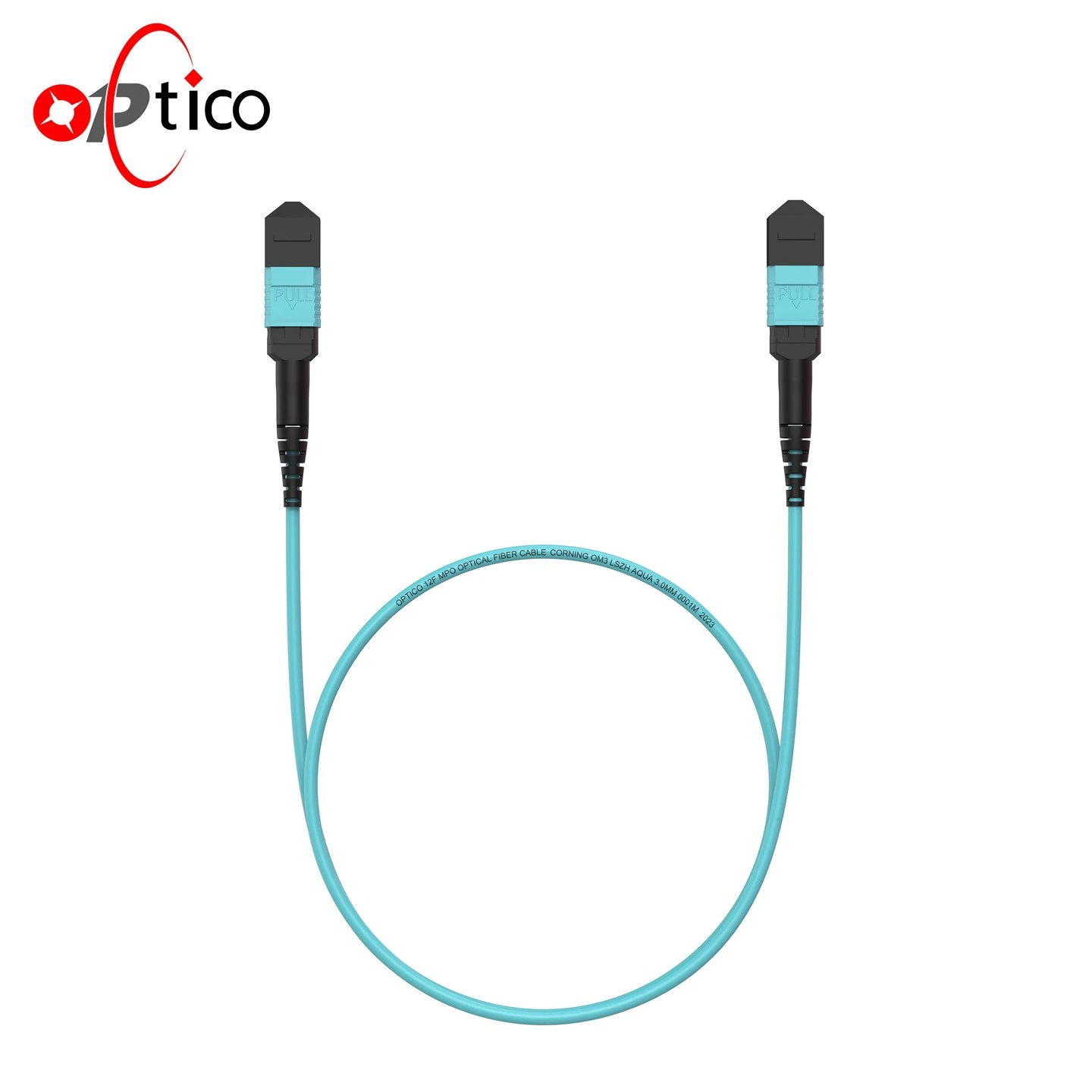

MPO MPO 12-core OM3 realizes the active connection between optical network equipment and jumpers. It is simple, convenient and fast to operate.
MPO MPO 12-core OM3 is one of the essential passive products for optical network construction.

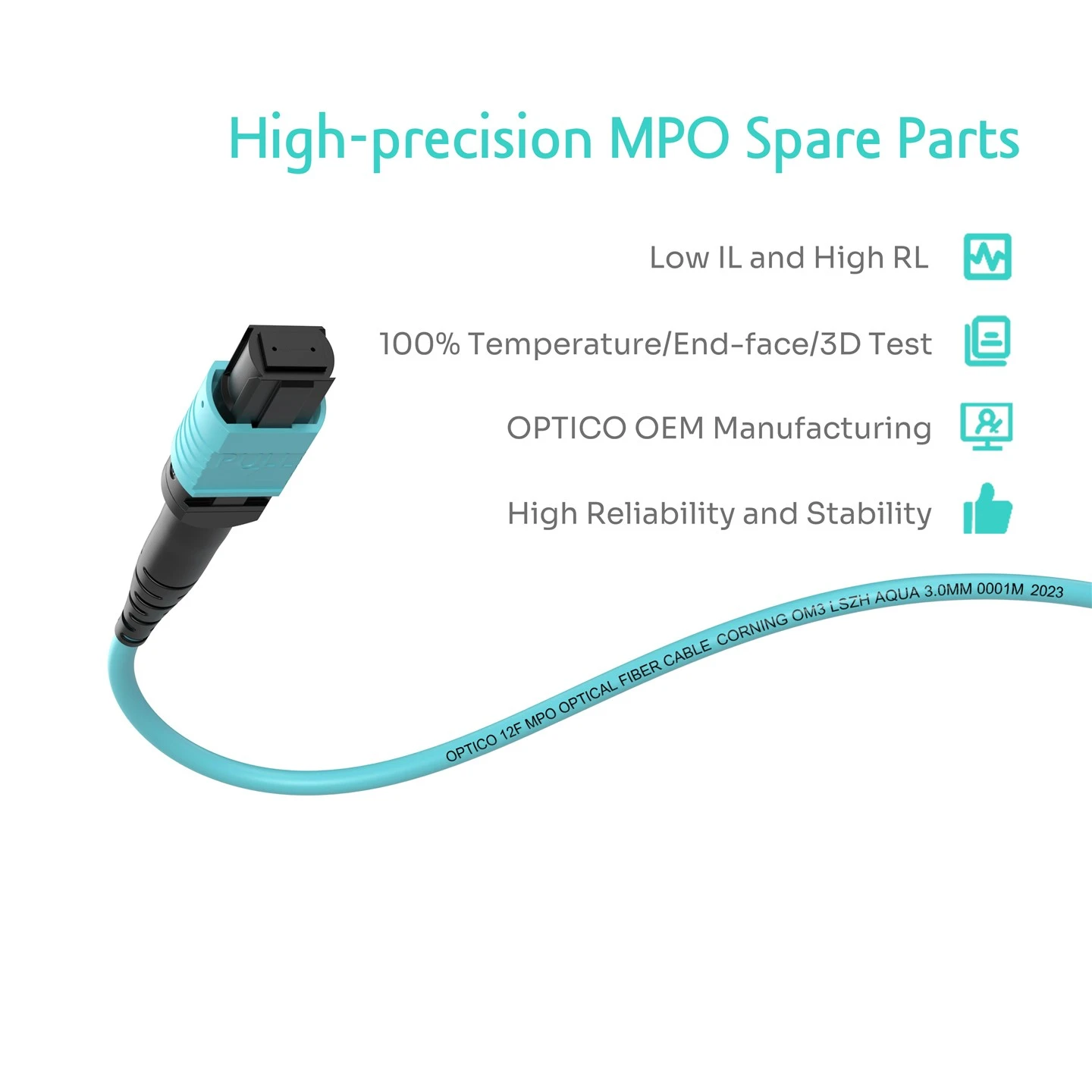

MPO MPO 12-core OM3 has the advantages of low insertion loss, high return loss, high mechanical dimensional accuracy, good stability, and reliability.
OPTICO can provide a full range of MPO MPO 12Cores OM3 patch cords.
The optical cable type, connector type, length, color, and special requirements can be customized.
Product specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Various Fiber Counts and Types
Choose from 4, 8, 12, 24, or 48 fiber options, with both single-mode and multimode fiber types available. The flexibility of MPO MPO 12-core OM3 Patch Cord allows for seamless integration into different network environments and applications.
Rapid Deployment, High Density, and High Reliability
MPO MPO 12-core OM3 Cable is designed for rapid deployment in high-density environments, such as data centers. Its reliable performance ensures seamless connectivity and minimizes network disruptions.
Extremely Low Insertion Loss and High Return Loss
MPO MPO 12-core OM3 Patch Cord offers excellent optical performance with extremely low insertion loss and high return loss, maximizing signal integrity and reducing transmission errors.
Telcordia GR-1435-CORE Issue 2 Compliant
MPO MPO 12-core OM3 cable complies with the Telcordia GR-1435-CORE Issue 2 standard, which guarantees high-quality and reliable performance.
Corning/YOFC Fiber
All our MPO ferrules are from Hakusan
Insensitive to bending
LSZH, LZOH, OFNP, OFNR cable jacket types selection
our brand confidence comes from a strong production team
applications
Transceiver device
Rising 40G & 100G agreement
SAN(storage area network)
100% strictly tested before delivery
IL/RL test
3D test
Polarity test
Production Drawing
OPTICO own a powerful team of engineers, production instruction drawings, logos, colors, connectors, number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
10G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment:
In the core connect, a Switch is Equipped with the 10G SFP+ 300m 850nm Optical Transceiver Module to send and receive signals. These modules enable data transmission speeds of up to 10 Gbps, with a maximum transmission distance of 300 meters, making them suitable for data centers and large network environments.
b. Fiber Connection Method：
Connectivity is established using of LC UPC to LC UPC Duplex OM4 Multimode Patch Cord.
c. Fiber Cabling Management:
A 24F 2×12F MPO-6LC MPO Cassette, containing 24 LC duplex modules, is utilized along with a 1U high-density fiber enclosure. This setup optimizes fiber management and minimizes cable clutter.
2. Core to Access Connection:
A 24F MPO-MPO Female Trunk Cable can be used to contact the core connection and access cabling.
3. Access Cabling Solution:
The same connection approach of the core can also be applied to the access cabling solution, ensuring scalability and consistency throughout the network.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
how we can stand by you
- Quick response within 24 hours
- One-to-one consulting Service
- Professional technical team support (RL can even reach 85dB/ Grade B connectors)
- Super strict quality control (Real 1000 times plug experiment)
- Huge production capacity
- Never change prices arbitrarily
