Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of mpo mtp to 8xst fan-out fiber cable in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product profile
The MPO MTP To 8xST Fan-out Fiber Cable helps quickly deploy backbone cabling in data centers and other high-density environments, reducing the time and cost of network installation or reconfiguration.
In data centers, The 8 Fiber MTP to ST Fanout Fiber Cable efficiently interconnects systems in environments to ensure high bandwidth and low latency.
In HPC application environments, The 8 Fiber MTP to ST Fanout Fiber Cable facilitates fast information exchange between processors and storage systems while supporting very high data rates.
Product specifications
| Physical Properties | Parameter |
| Fiber Count | 8 Fibers |
| Fiber Mode |
OS2 |
| Connector Type | Connector A: US Conec MTP/OPTICO MPO; |
| Connector B: LC/SC/FC/ST | |
| Polarity | Type A/B/C |
| Cable Jacket | PVC/LSZH/OFNP |
| Jacket Colour | Yellow |
| Cable Diameter(mm) | 3.0 |
| Minimum Bend Radius | 7.5 |
| Fiber and Boot Length | Customizable |
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.5 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | ≥35 | ||
| Wavelength(nm) | 1310/1550 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70 | 220 | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
High Standard Material Seamless Data Transmission
Using US Conec connector, The 8 Fiber MTP to ST Fanout Fiber Cable has insertion loss as low as 0.3dB (low loss), 0.35dB (standard), and 0.7dB (maximum), which can maintain signal integrity and achieve seamless data communication.
Rapid Deployment and Configuration
The factory-terminated nature of MPO patch cords significantly reduces installation and reconfiguration time during moves, adds, and changes. Configurable length assemblies further contribute to efficient cable management by minimizing slack and patch field congestion.
Cost-Effective High-Density Patching
Designed as a low-cost alternative to time-consuming field termination, The 8 Fiber MTP to ST Fanout Fiber Cable excels in high-density patching scenarios. Perfect for data centers facing space constraints, it simplifies cable management and ensures a reliable connection.
Space-Saving Design
The 8 Fiber MTP to ST Fanout Fiber Cable features a compact design for a high fiber count in a small space, optimizing front panel space and streamlining fiber management. This is particularly beneficial in environments where space is a critical factor.
applications
High Density Data Center
Backbone Network
Optical Module Connection
our brand confidence comes from a strong production team
100% strict performance tests
IL/RL Test

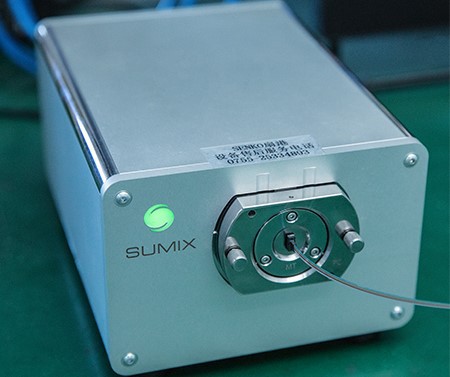

3D Test
End Face Test
Temperature Test
certificates
CE
CPR
ISO
RoHS
full ranges of reliability tests from third-party lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
ordering process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
how we can stand by you
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
after-sales services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
Hot Tags: mpo mtp to 8xst fan-out fiber cable, China, manufacturers, suppliers, factory, wholesale, customized, mpo breakout, 12 fiber mtp cable, mpo 24 fiber cable, mtp lc breakout cable, fiber patch cable management, MPO MPO 16F Jumper
