Product Profile
Fanout Cable MTP/MPO Male To LC 12-Cores is a versatile solution designed to enhance your connectivity experience.
Fanout Cable MTP/MPO Male To LC 12-Cores features a robust MTP/MPO male connector on one end, coupled with 12x LC simplex connectors on the other.
Fanout Cable MTP/MPO Male To LC 12-Cores has an insertion loss of ≤0.35dB and a maximum insertion loss of ≤0.70dB, with excellent signal transmission efficiency and minimal power loss.
12F MPO to LC breakout patch cord is a cost-effective alternative that saves space and reduces cable management hassles compared to time-consuming and space-consuming field termination methods.
12F MPO to LC breakout cable can effectively distribute 10Gbps signals between multiple devices or ports to optimize network performance.
Product specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | Connector A: US Conec MTP Female/Male; MPO Female/Male | ||
| Connector B: LC/SC/FC/ST | |||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Higher Density
With its 12-core configuration, 12F MPO to LC breakout cable provides a higher fiber count within a compact form factor. This allows for more efficient utilization of space and infrastructure.
Hybrid Connectivity
Combining MTP/MPO and LC connectors, the 12F MPO to LC breakout cable enables seamless hybrid connectivity between different networking components, eliminating the need for additional adapters.
Array Fusion Splicing
The fusion of 12F MPO to LC breakout cable approach guarantees steadfast and lasting connections, effectively curbing signal loss and upholding signal integrity.
Minimal Insertion Loss
12F MPO to LC breakout cable is engineered for low insertion loss, clocking in at less than 0.25 dB. This meticulous design guarantees negligible signal attenuation, amplifying the efficacy of your fiber optic connections and enhancing overall performance.
Applications

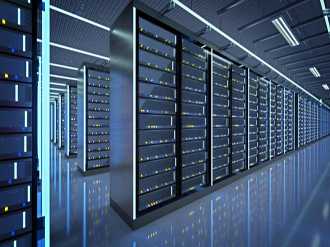

Data Center
Cloud Computing

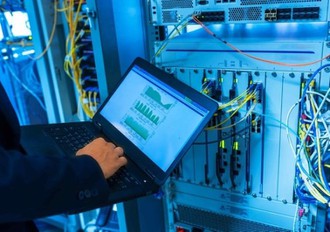

Telecommunication Network
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Equip with a high-performance switch and 25G SFP28 Optical Transceiver Module, the data transmission rate can reach 25.78 Gb/s.
b. Fiber Connection Method:
Utilize 12 Cores MPO-LC Fanout Fiber Optic Cable or MTP Patch Cord 12 Cores to connect Equipment.
c. Fiber Cabling Management:
Use 12 Port MTP Panel,and High-Density 1U Rack Mount Enclosure Unloaded Sliding Drawer to store and organize cables to avoid clutter.
2. Core to Access Connection
Apply 24F 2×12 MPO Trunk Cable OM3 Female or 24F MPO-MPO Female Trunk Cable OS2 to connect the core and access.
3. Access Cabling Solution
Same as the core cabling solution.

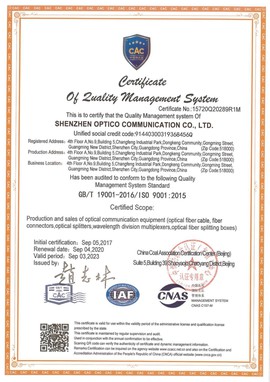

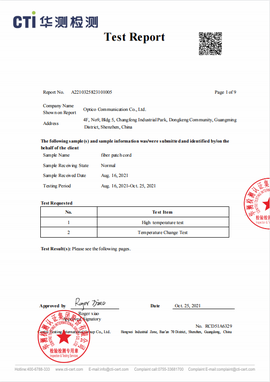

Certificates

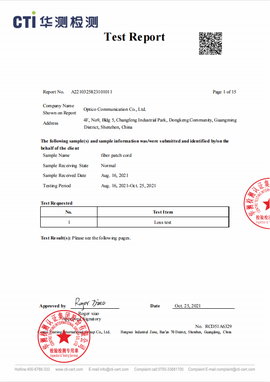

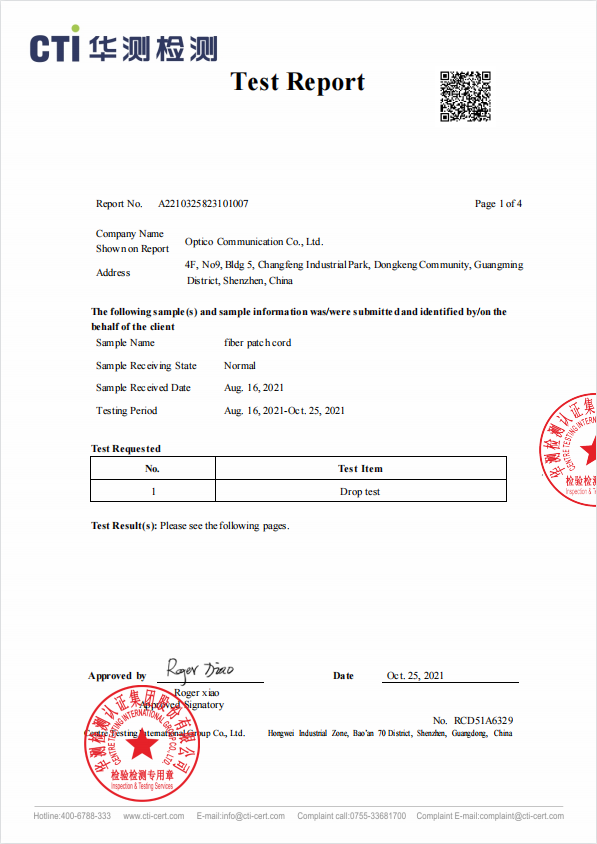

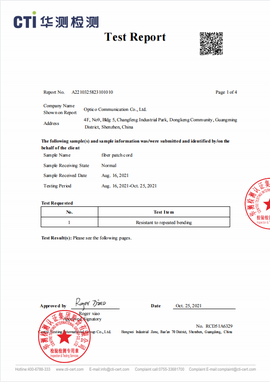

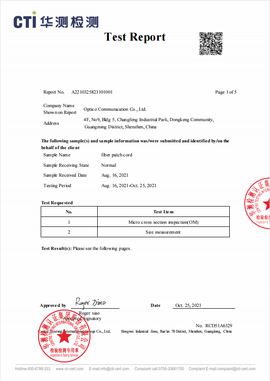

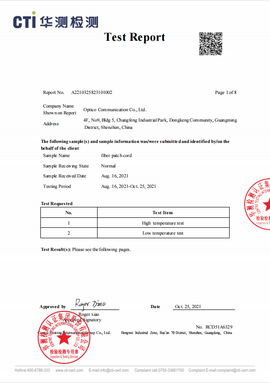

Full Ranges of Reliability Tests from Third-party Lab
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
