Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of os2 om2 om3 om4 om5 8 12 24 cores fiber optic mpo patch cord in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
Fiber optic MPO patch cord are divided into transfer type and non-transfer type. There are many types of transfer Fiber optic MPO patch cord, including ribbon MPO Fiber Optic Cable and bundle MPO Fiber Optic Cable.
MTP fanout cable generally can be switched out of 2 ~ 24 core 0.9 or 2.0 fiber optic cable branch.
The connector of MTP fanout cable type can be FC, LC, SC, ST and other connector types.
As a professional manufacturer, OPTICO offers a full range of OEM customized services, such as the total length of MTP fanout cable, branch length and other requirements.
Corning/YOFC Fiber
MPO ferrules are from Hakusan/SENKO
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -40 ~ +85 | ||
Product Features
The MTP/MPO connectors can custom a push-pull design, allowing for easy and quick engagement and disengagement. Users can connect or disconnect the connectors with a simple push and pull motion, eliminating the need for intricate maneuvers or specialized tools.

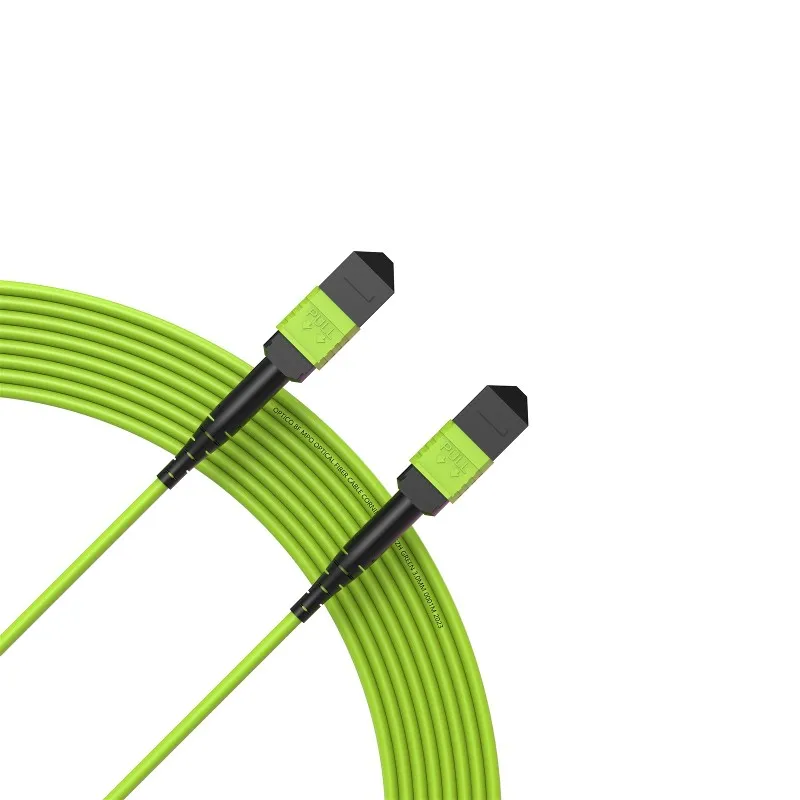

Equipped with a high fiber count of 8 / 12 / 16 / 24F in one cable, the MTP MPO Cable OM5 assembly is tailored for dense applications. The round mini-cable construction of this assembly not only reduces raceway usage but also contributes to a neat and organized setup.
The cable assembly supports a range of fiber types, including SM (9/125 G657 A1), MM (50/125 or 62.5/125), OM3, OM4, and OM5. And OPTICO provides IL options for standard loss, low loss and ultra low loss configurations. Polarity, connector brand, fiber brand, cable length and printing etc., can also be customized.
Before reaching the end-user, each cable undergoes rigorous testing, including 100% testing of insertion loss, back reflection, and interferometry. This commitment to quality ensures that the insertion loss does not exceed 0.35 dB. All MTP/MPO cable assemblies adhere to TIA/EIA and IEC intermateability standards.
applications
High Density Data Center
Backbone Network
Optical Module Connection
our brand confidence comes from a strong production team
100% strict performance tests

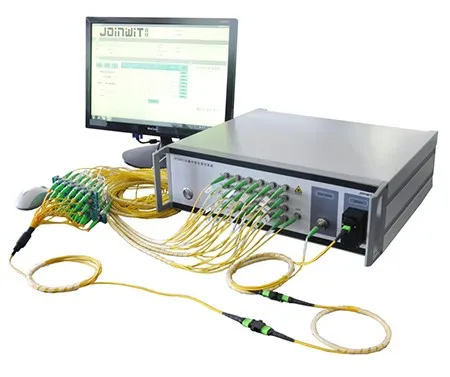

IL/RL Test
3D Test
End Face Test
Temperature Test
Product Specifications
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, number of cores, and other special requirements can be customized.
Connectivity Solutions
40G to 4x 10G Interconnect
1. Core Cabling Solution:
a. Core Connection Equipment:
Utilize a high-performance switch paired with 40G BASE-SR4 QSFP+ 850nm 150m Optical Transceiver Module for 40 Gb/s connectivity.
b. Fiber Connection Method: Employ LC UPC to LC UPC Duplex OM5 Multimode Patch Cords or 12-Core MTP Patch Cords for equipment connections.
c. Fiber Cabling Management: Incorporate a 12×LC Duplex SM Fiber Adapter Panel and a High-Density 1U Rack Mount Enclosure with a sliding drawer to organize cables and reduce clutter.
Alternatively, use a 12-Port MTP Panel with a similar rack mount enclosure.
2. Core to Access Connection:
Connect core and access points using MTP OM4 12-Core Patch Cords.
3. Access Cabling Solution:
a. Core Connection Equipment: Include a high-performance switch with 10G SFP+ Optical Transceiver Module.
b. Fiber Connection Method: Use LC UPC to LC UPC Duplex Multimode Patch Cords or 12-Core MTP Patch Cords for equipment connections.
c. Fiber Cabling Management:
Implement 1U Fiber Patch Panel, 12 LC Duplex ODF along with a High-Density 1U Rack Mount Enclosure Unloaded with a Sliding Drawer to maintain organized cables.
Alternatively, use a 24F 2×12F MPO-6LC MPO Cassette, OM3, along with a High-Density 1U Rack Mount Enclosure Unloaded with a Sliding Drawer to maintain organized cables to avoid clutter.
certificates
CE
CPR
ISO
RoHS
full ranges of reliability tests from third-party lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
ordering process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
how we can stand by you
Quick Response within 24 Hours
Quick Response within 24 Hours
Professional Technical Team Support
Professional Technical Team Support
Huge Production Capacity
Never Change Price Arbitrarily
after-sales services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via phone, email, or online platform.
Thank you for choosing OPTICO as your trusted provider of optical communication devices. We value your business and are committed to ensuring your satisfaction even after your purchase.
The application of MPO fiber optic patch cords in the company's local area network wiring between different buildings in optical active equipment, optical link interconnection, communication in base stations, wiring in distribution boxes, residential areas, industrial park computer rooms, commercial building computer room optical signal connection building dense Wiring system Optical fiber communication system, cable television network, telecommunication network local area networks (LANs), wide area networks (WANs), FTTx.
