Product Profile

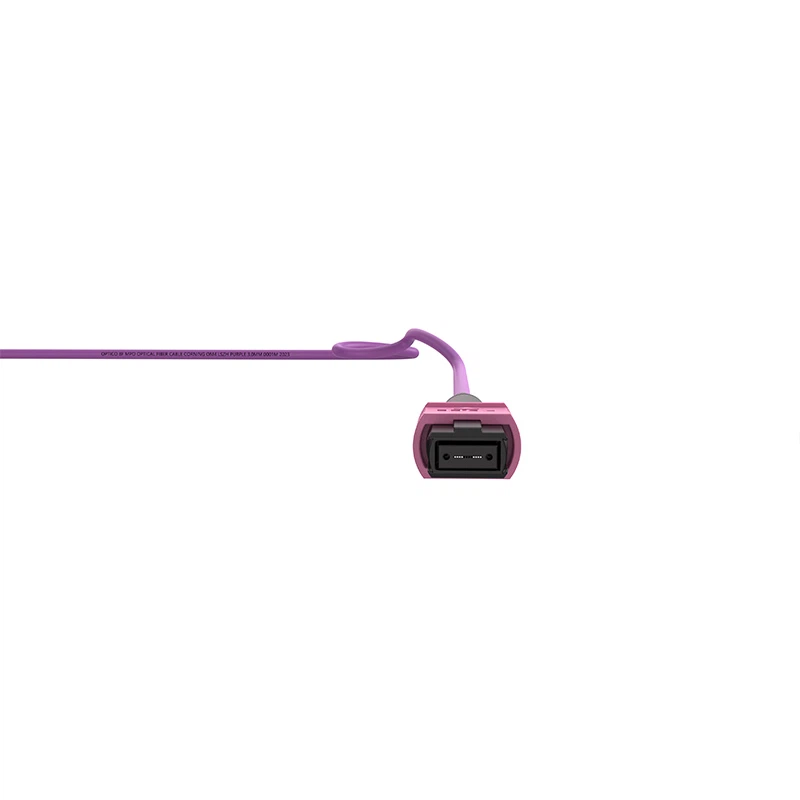

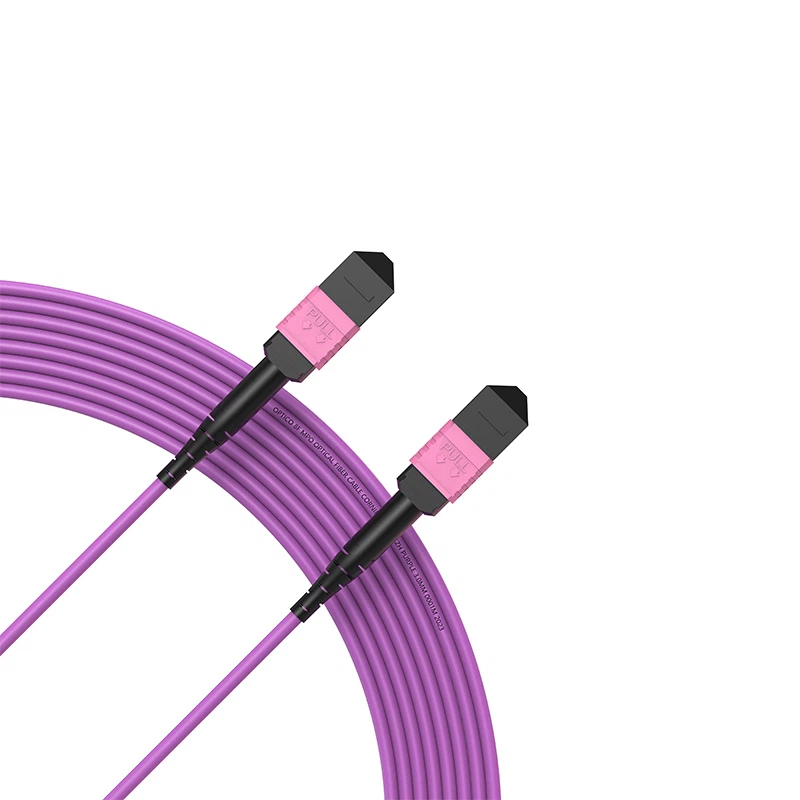

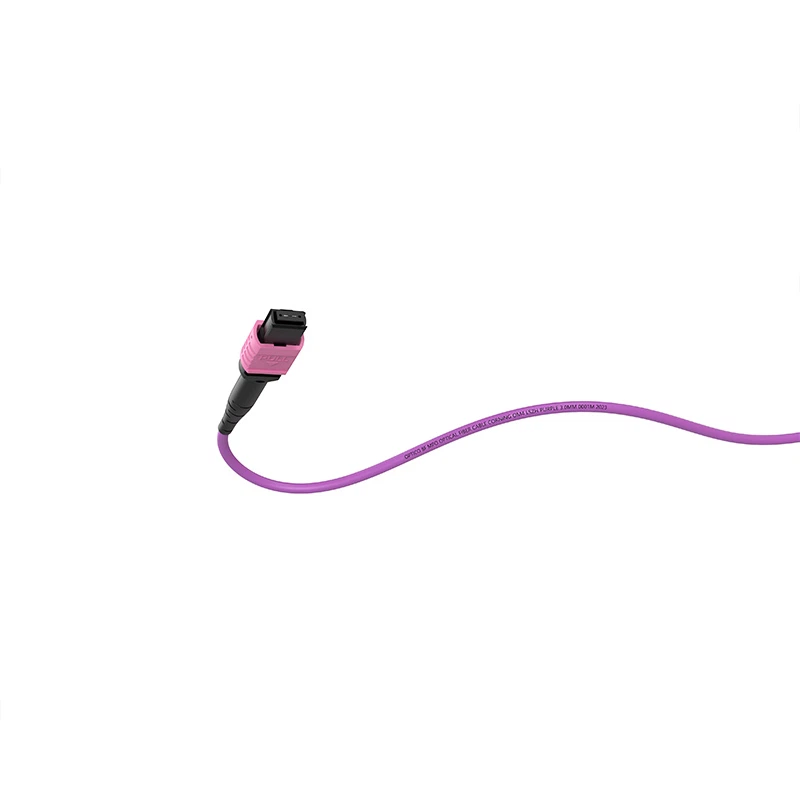

Fiber Cable Management Solutions MTP MPO Patch Cord is a high-performance fiber optic cable designed for use in data centers, LANs, and other high-density applications.
Fiber Cable Management Solutions MTP MPO Patch Cord is available in various configurations, including multi-mode and single-mode fiber, and supports high data rates up to 40G and 100G.
Fiber Cable Management Solutions MTP MPO Patch Cord is ideal for high-density cabling applications that require fast, reliable, and efficient data transmission.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Environmentally Friendly
The LSZH low-smoke, halogen-free, flame-retardant optical cable sheath eliminates external signal interference and provides transparent, stable, agile and natural transmission.
Versatility
With square and opposite port, the MTP MPO Patch Cord can meet most of the equipment with fiber optic interface on the market.
Compact Design
One MTP/MPO connector can accommodate 12 cores, which is easy to insert and remove for easy installation and removal.
Dust Cap Protection
The connector is matched with a dust cap that protects the end face of the connector from damage and other phenomena, making the cable longer in service life and less attenuation. A-grade Polishing End Face and Good Transfer Conductor.
Product Structure
Corning/YOFC Fiber
All our MPO ferrules are from Hakusan
Our Brand Confidence Comes from a Strong Production Team
100% Strictly Tested Before Delivery
Polarity Test
IL RL Test
End surface Test
Temperature Test
Applications
Network interconnection
Data center
40g network direct connection
Production Drawing
OPTICO own a powerful team of engineers, production instruction drawings, logos, colors, connectors, number of cores, and other special requirements can be customized.
Connectivity Solutions
40G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Equip with a high-performance switch and a 40G BASE-SR4 QSFP+ 850nm 150m Optical Transceiver Module to achieve 40 Gb/s.
b. Fiber Connection Method
Use LC UPC to LC UPC Duplex OM5 Multimode Patch Cords or 12-Core MTP Patch Cords for equipment connections.
c. Fiber Cabling Management:
Implement 1U Fiber Patch Panel with 12 LC Duplex ODF and High-Density 1U Rack Mount Enclosure with a sliding drawer to organize cables, preventing clutter.
Alternatively, use a 12-Port MTP Panel with a similar rack mount enclosure.
2. Core to Access Connection
Use MTP OM4 12-Core Patch Cords to connect core and access points.
3. Access Cabling Solution
Identical to the core cabling solution.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Delivery
How We Can Stand by You
- Quick response within 24 hours
- One-to-one consulting Service
- Professional technical team support (RL can even reach 85dB/ Grade B connectors)
- Super strict quality control (Real 1000 times plug experiment)
- Huge production capacity
- Never change prices arbitrarily
