Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 1x16 abs box plc splitter in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
1X16 ABS Box PLC Splitter

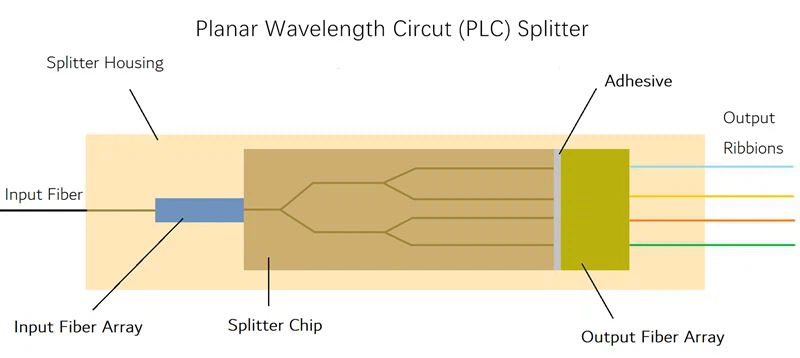

PLC Splitter Fiber Optic are key components in FTTX networks and are responsible to distribute the signal from central office to numbers of premises. They have very wide range of operating wavelength from 1260nm to 1620nm. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.OPTICO provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
|
Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
2x4 |
2x8 |
2x16 |
|
Operating Wavelength (nm) |
1260~1650 |
||||||||
|
Fiber Type |
Single mode fiber |
||||||||
|
Fiber OD |
250um bare fiber/900um with loose tube/ 2mm with kevlar /3mm with kevlar |
||||||||
|
Insertion Loss (dB) S Grade |
4 |
7.3 |
10.5 |
13.7 |
16.9 |
21 |
4.2 |
7.8 |
11.2 |
|
Insertion Loss (dB) P Grade |
3.8 |
7 |
10.2 |
13.5 |
16.5 |
20.5 |
3.8 |
7.4 |
10.8 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
1 |
1.4 |
1.5 |
|
Return Loss (dB) S Grade |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Return Loss (dB) P Grade |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
0.2 |
0.2 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
0.8 |
|
Temperature Stability(-40~85 °C)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~85 |
||||||||
|
Storage Temperature (°C) |
-40~85 |
||||||||
|
Note |
1) Specified without connectors; 2)Add an additional 0.2dB loss per connector |
||||||||
Advantages of 1X16 ABS Box PLC Splitter
Corning/YOFC/Customized fiber

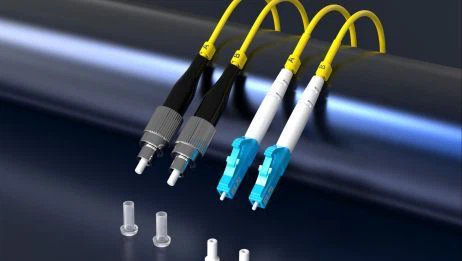

High quality ceramic ferrule

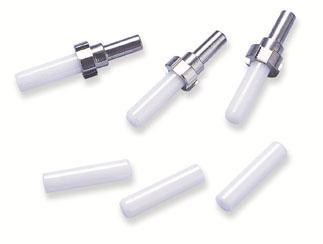

CCTC ceramic ferrule(Low IL and high RL)
Scenes of applications
PON Networks
LAN Networks

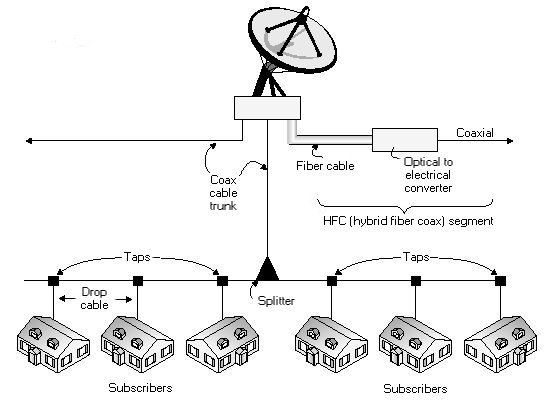

CATV Links
Advantages of the applications
1. Loss is not sensitive to the wavelength of transmitted light, and can meet the transmission needs of different wavelengths (1260-1650nm).
2. The light is evenly distributed, and the signal can be evenly distributed to users.
3. The FC Fiber Optic PLC Splitter mall size (such as the minimum size of 1 × 32 can be achieved, 4 × 7 × 50mm), can be directly installed in the existing various transfer boxes, without special design to leave a lot of installation space.
4. There are many shunt channels for a single device, which can reach more than 32 channels.
5. Low cost of multiple channels, the more branches, the more obvious the cost advantage.
Types of certificates
CE
CPR
ISO
ROHS
The power of the OPTICO brand comes from production
7-15 days
Details of our company:
Place of Origin: Shenzhen, China
Brand Name: OPTICO
Model Number: OP-ABSPLC104-SCP
Type: ABS module type
Use: FTTX
Product name: 1x4 ABS Box PLC Splitter SC(PC)
Application: FTTH, FTTB, FTTX Network
Apply for Fiber OD: 2mm cable, 3mm cable
Splitter Wavelength: 1260~1650nm
Certification: CE,ROHS,ISO9001
Supply Ability: 100000 pcs/month
Packaging Details: 2 pcs ABS Box 1x4 PLC Splitter SC(PC)/inner box, suitable quantity per carton
Port: Shenzhen
