Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 1x12 plc splitter coupler in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
1x12 PLC Splitter Coupler
Divide a main light source into a 1-N light path through a splitter.The 1-N parts of the light path are synthesized by a splitter into a single main light source for recovery. Reverse transmissionPLC (Planar Lightwave Circuit) splitters is used for fiber optic signal splitting in PON networks: The compactsizemakes them suitable for installation in splice trays and placed in joint closures, cabinets or opticaltermination panelsThe PLC splitters are available with one or two input ports and up to 64 output ports.
|
Wavelength (nm) |
1260-1650 |
||||||||
|
Parameters |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
2×4 |
2×8 |
2×16 |
2×32 |
|
Insertion Loss(with connector)(dB) |
≤7.4 |
≤10.7 |
≤13.7 |
≤16.9 |
≤21 |
≤7.8 |
≤11.5 |
≤14.5 |
≤17.7 |
|
Insertion Loss(W/O connector)(dB) |
≤7.7 |
≤11.2 |
≤14.2 |
≤17.5 |
≤21.5 |
≤8.3 |
≤12 |
≤15 |
≤18.2 |
|
Uniformity (dB) |
≤0.8 |
≤1.0 |
≤1.4 |
≤1.9 |
≤2.7 |
≤1.7 |
≤1.7 |
≤2.2 |
≤2.7 |
|
PDL(dB) |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.2 |
≤0.4 |
≤0.4 |
≤0.4 |
|
Size(ABS bype) (H×W×L)(mm) |
10x80x100 |
18x80x120 | 18x115x140 | 10x80x100 | 18x80x120 | ||||
|
Return Loss(dB) |
>50 |
||||||||
|
Directivity(dB) |
>55 |
||||||||
|
Temperature Range(°C) |
-40~+75 |
||||||||
|
Storage Temperature(°C) |
-40~+85 |
||||||||
Features of this products
1.Low insertion loss
2.Low PDL
3.Compact design
4.Good channel-to-channel uniformity
5.Wide operating wavelength 1260-1650nm
6.Wide operating temperature -45℃~+85℃
7.High reliability and stability
Scenes of applications
Part of Production Process
Types of Certificates
CE
CPR
ISO

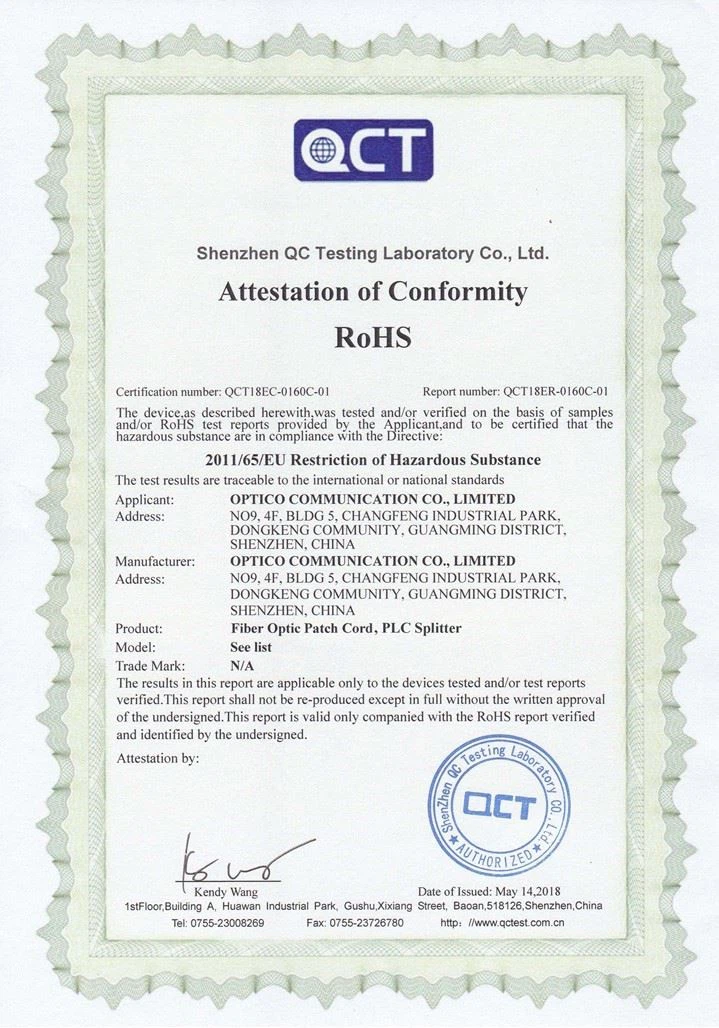

ROHS
7-15 DAYS
The PLC Splitter produced by OPTICO has a wide wavelength range and excellent uniformity between channels. It can evenly distribute the signal to customers. It uses high-quality imported ceramic ferrules to make it low in insertion loss and low back reflection to ensure the stability of its transmission , Product packaging appearance design is exquisite and strict. Ensure that the product is in good condition while providing comprehensive protection.
