1x3 Mini PLC Splitter
1x3 Mini PLC Splitter

1x3 Mini PLC Splitter

OPTICO all splitters are manufactured using a very simple process that produces reliable, low-cost devices. The 1X3 PLC Splitter is manufactured according to the special FTTX wiring requirements, but still has the characteristic of evenly splitting the optical signal.
Send Inquiry
Download

Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 1x3 mini plc splitter in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.



1x3 Mini PLC Splitter

OPTICO fiber optic splitters are available in a wide range of styles and sizes to split or combine light with minimal loss. All splitters are manufactured using a very simple process that produces reliable, low-cost devices. The 1X3 PLC Splitter is manufactured according to the special FTTX wiring requirements, but still has the characteristic of evenly splitting the optical signal.

Package Type Steel Tube Configuration 1x3
Fiber Type G657A or Customized Fiber Length Customized
Fiber Diameter 900um Operating Bandwidth 1260~1650nm
Insertion loss <6.0dB Return loss >55dB
Loss uniformity ≤0.5dB Directivity ≤0.5dB
PDL ≤0.2dB Temperature dependent loss ≤0.5dB
Steel tube dimensions 4x7x60mm Work Temperature -40~85℃

Advantages

High return loss and low insertion loss

Single-mode and Multi-mode are available

High reliability and stability

Can be ultra PDL

All connectors could be Grade B

Customized design and solution could be provided soon

CE/ISO/CPR/ROHS/FCC are available



Why we could stand by you

Response within 24 hours

100% 3D tested by Daisi or Sumix devices

100% high and low temperature cycle test

Can accept 168 hours of high temperature boiling experiment if necessary

Connectors can be Grade B

2000000CH/Month of production capacity(very short lead time)

International laboratory test report can be provided

Applications

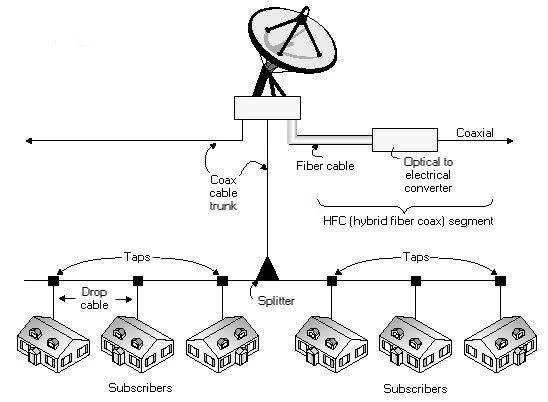

CATV

CATV

FTTH

FTTH Network

lan

LAN Networks




FAQ




Q: Is the 1x3 Mini PLC Splitter able to join two different optical signals into a single fiber?

A: No, a 1x3 Mini PLC Splitter is designed for splitting an optical signal from one input into three separate outputs, and it does not combine or join signals. If you need to combine two different optical signals into a single fiber, you would typically use a different component, such as our WDM series product or a coupler designed for combining signals. These components are specifically engineered for the purpose of combining multiple signals into a single fiber or separating combined signals into individual fibers.



Q: Why is the connector color of plc splitter green? what is the difference between green and blue?

A: The color of the connector on a PLC splitter is typically green, and it signifies the use of an APC (Angled Physical Contact) connector. The color coding is an industry standard to distinguish between different connector types and their polishing styles. APC connectors are designed to minimize back reflections (return loss) by redirecting reflected light at an angle into the cladding. UPC connector end face is polished flat without an angle for good physical contact.



Q: Is the 1x3 Mini PLC Splitter waterproof?

A: PLC splitters are typically not designed to be waterproof on their own. They are usually installed in controlled indoor environments, such as data centers, central offices, or telecommunication facilities. If there is a need for waterproofing in outdoor or harsh environmental conditions, such as in FTTx (Fiber to the X) applications, additional protective enclosures or closures should be used.





Hot Tags: 1x3 mini plc splitter, China, manufacturers, suppliers, factory, wholesale, customized, 1x2 PLC Splitter Steel Tube Fiber optic splitters, 1 2 PLC Splitter Single Mode Blockless PLC Coupler, 1x4 Mini Steel Tube PLC Splitter, 1x8 fiber splitter, Ribbon Fan Out Fiber PLC Splitter, 1x16 Bare Fiber PLC Splitter



Package Type Steel Tube Configuration 1x3
Fiber Type G657A or Customized Fiber Length Customized
Fiber Diameter 900um Operating Bandwidth 1260~1650nm
Insertion loss <6.0dB Return loss >55dB
Loss uniformity ≤0.5dB Directivity ≤0.5dB
PDL ≤0.2dB Temperature dependent loss ≤0.5dB
Steel tube dimensions 4x7x60mm Work Temperature -40~85℃
