Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of bare fiber steel tube plc splitter mini metal in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

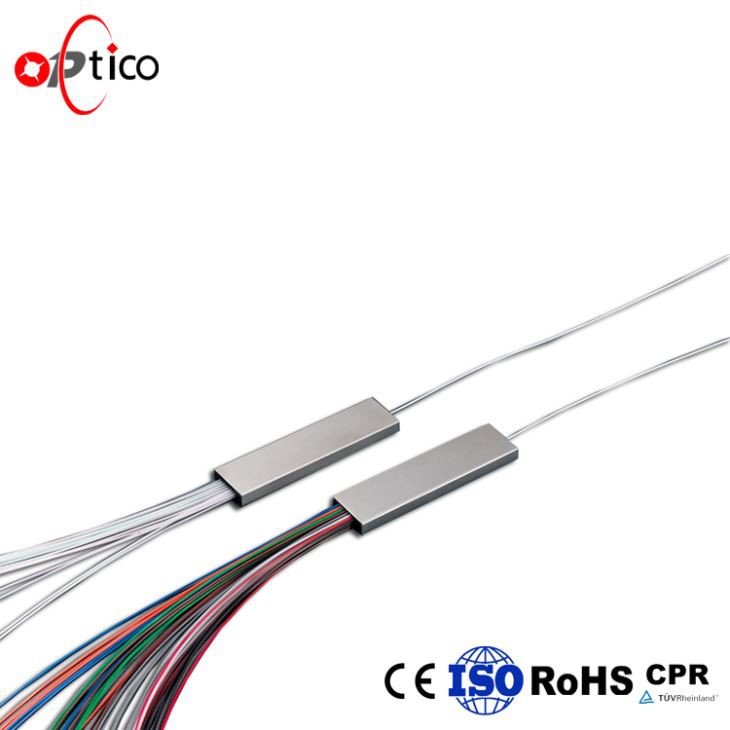

Bare Fiber Steel Tube PLC Splitter Mini Metal
PLC splitters are based on the Planar Waveguide Technology. They provide a cost effective and space saving networking solution. They are key components in FTTX networks and are responsible to distribute the signal from central office to numbers of premises. They have very wide range of operating wavelength from 1260nm to 1620nm. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
| Parameter | Unit | Value | ||||||||||
| Product Type | 1×2 | 1×3 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×24 | 1×32 | 1×64 | 1×128 | |
| Operation Wavelength | nm | 1260～1650 | ||||||||||
| Insertion Loss | Typ.dB | 4 | 6 | 7 | 9.4 | 10 | 12 | 13.2 | 16 | 16.5 | 20.5 | 24.5 |
| Max. | 4.3 | 6.2 | 7.4 | 9.8 | 11 | 12.5 | 13.9 | 16.5 | 17.2 | 21.5 | 25.5 | |
| Uniformity (Max.) | dB | 0.5 | 0.6 | 0.8 | 0.8 | 1 | 1 | 1.4 | 1.5 | 1.6 | 2 | 2.6 |
| PDL(Max.) | dB | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 |
| TDL(Max.) | dB | 0.5 | ||||||||||
| Return Loss | dB | ≥55/50 | ||||||||||
| Directivity | dB | ≥50 | ||||||||||
The inner structure of PLC Splitter
PLC Splitter is one of the most important passive components in the optical fiber link. It is a multi-end and multi-output-end optical fiber junction device, the three most important components are the input, output and chip of the optical fiber array. The design and assembly of these three components play a vital role in the stable and normal operation of the PLC Splitter.
Some advantages of our PLC Splitter

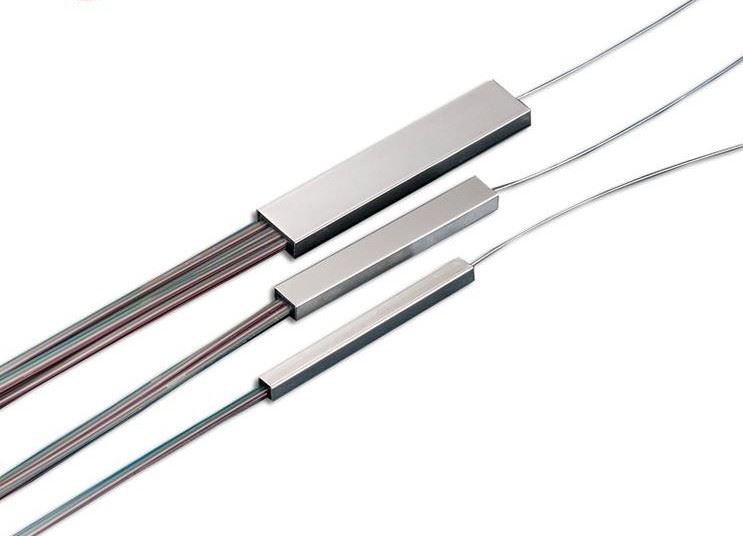

Compact design to save space
Corning/YOFC Fiber

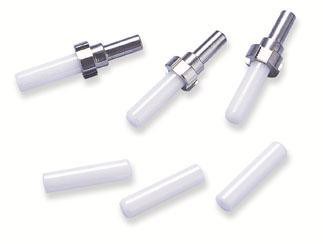

High quality CCTC Ceramic ferrule connector
Scenes of application
Passive Optical Networks
FTTH Networks
LAN Networks
100% tested by our production line
End surface polishing
IL RL Test

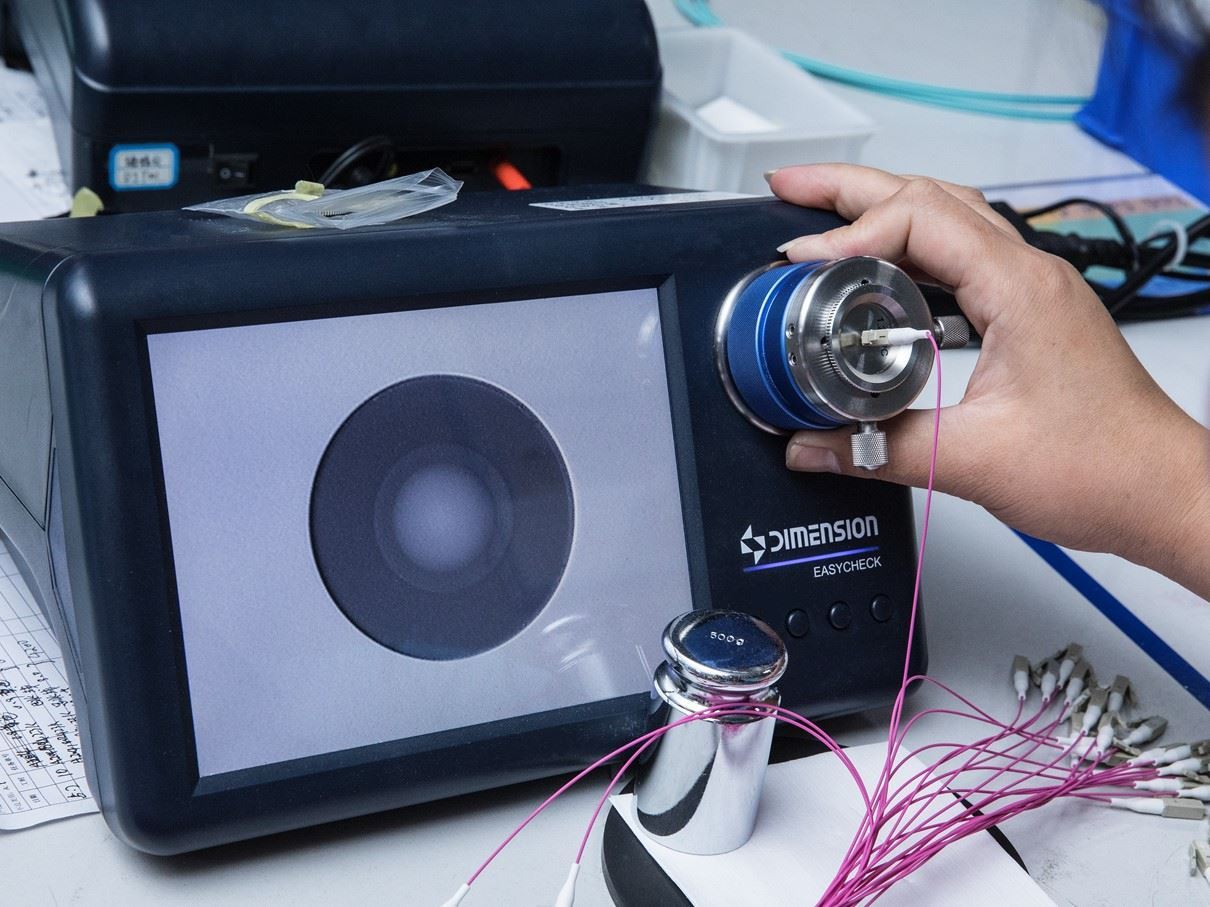

End surface Test
Temperature cycle test
Everybody works hard everyday
International/domestic certifcates
CE
CPR
ISO
ROHS
Support and market
7-15 days
Our Customers' requirements could make you know us more
-
100% 3D tested by Daisi Device
-
Boil in high temperature water for 168 hours
-
Very very low PDL value
-
All connectors should be grade B
-
Ultra high RL
-
Types of customized Multimode PLC Splitters
What we could promise you
-
Quick response within 24 hours
-
One-to-one service
-
Professional technical team support
-
Provide the best quality solutions
-
Strong production team
-
The most stringent quality control standards
-
Fast delivery
