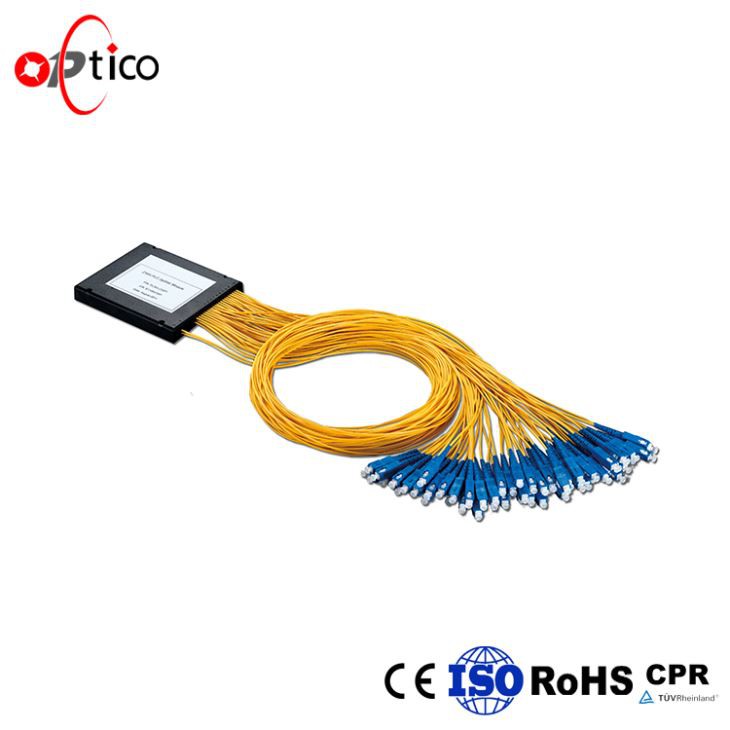

Optical PLC Splitter SM 2*32 Plastic Box
The ABS box 2*32 PLC splitter is an accessory for the cable transfer box. It meets the requirements of 2 to 32 output of the optical cable. It has good protection for internal optical components and cables, and is simple in design and reliable in installation.
| parameter | unit | 2*32 |
| Operating Wavelength | (nm) | 1260~1650 |
| Fiber Type | G657A1 | |
| Insertion Loss | (dB)(P/S Grade) | 17.5 |
| Loss Uniformity | (dB) | 2.5 |
| Return Loss (dB) | (P/S Grade) | 55/50 |
| Polarization Dependent Loss | (dB) | 0.4 |
| Wavelength dependent loss (WDL) | (dB) | ≤0.5 |
| Directivity | (dB) | 55 |
The inner structure of PLC Splitter
PLC Optical Splitter is one of the most important passive components in the optical fiber link. It is an optical fiber splicing device with many terminals and many output terminals. Its three most important components are the input, the output and the chip of the fiber array. The design and assembly of these three components play a vital role in the stable and normal operation of the PLC Optical Splitter.
Some advantages of our PLC Splitter
Compact design to save space
Corning/YOFC Fiber
High quality ceramic ferrule connector
Scenes of application
PON
FTTH Networks
WAN Networks
Our brand confidence comes from a strong production team
Strictly tested before delivery

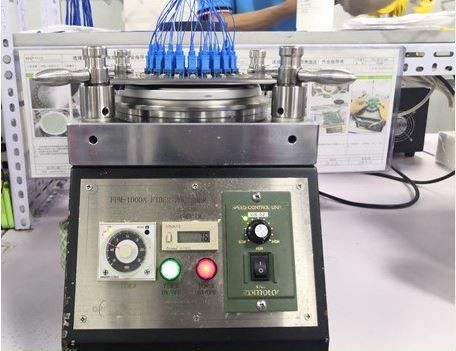

End surface polishing
IL RL Test
End surface test
Temperature Test
Types of our certificates
CE
CPR
ISO
ROHS
Support and market
7-15 days
Our Customers' requirements could make you know us more
-
100% 3D tested by Daisi Device
-
Boil in high temperature water for 168 hours
-
Very very low PDL value
-
All connectors should be grade B
-
Ultra high RL
-
Types of customized Multimode PLC Splitters
Why we can stand by you
-
Quick response within 24 hours
-
One-to-one service
-
Professional technical team support
-
Provide the best quality solutions
-
Strong production team
-
The most stringent quality control standards
-
Fast delivery
