Product Profile

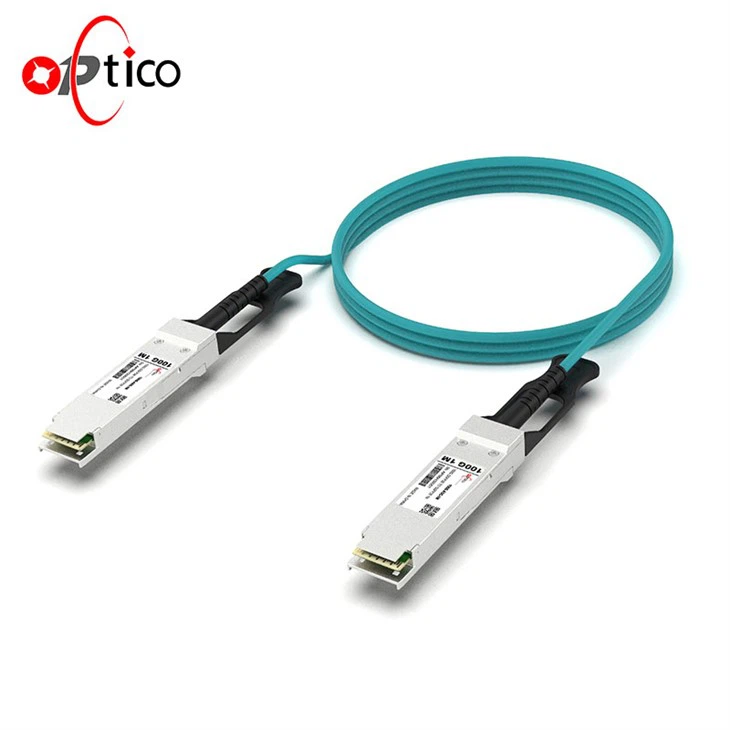

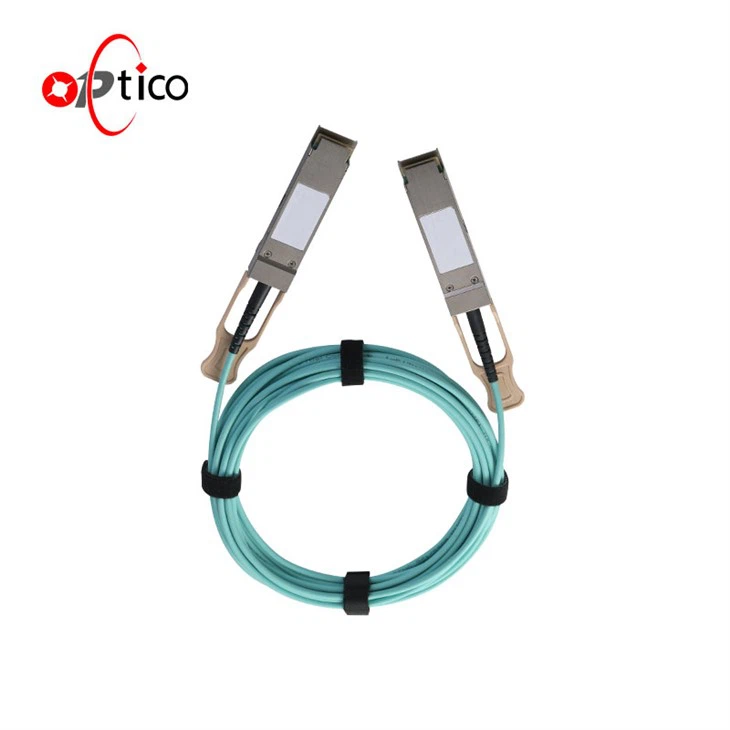

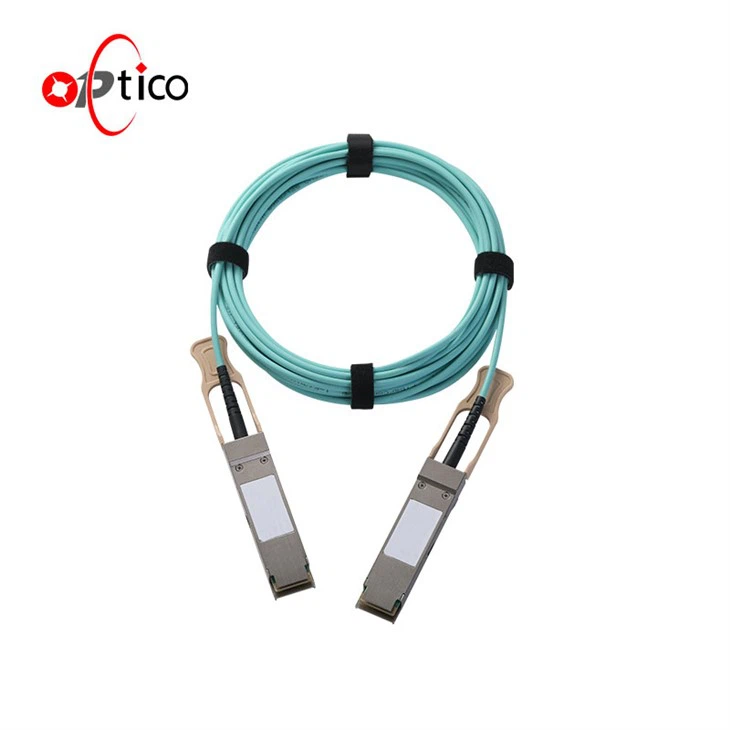

100G AOC QSFP28 TO QSFP28 Active Optical Cable is an ideal fiber assemblies alternative for the data center.
Based on ultra-high-speed computing data exchange of 100G/s, it supports the transmission and processing of massive data.
With QSFP28 optical transceivers, 100G QSFP28 AOC Cable is a cost-effective way to contact devices in the data room, providing a lightweight and slim alternative, simplifying cable management.
Minimum bending radius 30mm, QSFP28 100G Active Optical Cable enabling flexible wiring
Product Specifications
| Brand | Optico |
| Connector Type | QSFP to QSFP |
| Compatible Devices | Cisco, Juniper, Huawei, H3C, Mellanox and other brands |
| Cable Type | MMF(SMF is available) |
| Wavelength | 850 nm |
| Cable Length | 1m, 3m, 5m, 7m, 10m, 15m, 20m, 30m, 50m (custom) |
| Power Consumption | <2.2W |
| Power supply | 3.3V |
| Operating case temperature | 0 to 70C |
| Storage Temperature | -40 to 70C |
| Relative Humidity | 5 to 95% |
| Operating Altitude | 0-10,000 ft Power |
| Protocols | EEE 802.3 bm |
| Temperature | 0 to 70°C (32 to 158°F) |
| Application | 100G Ethernet,InfiniBand QDR, EDR and 32G Fiber Channel |
| Special Feature | Plug and play |
Product Features
high-density and low-power consumption
High-density 100G AOC QSFP28 TO QSFP28 Active Optical Cable full-duplex active optical cable delivers superior performance, super quality and reliable connectivity.
The maximum power consumption of an AOC cable is less than 2.2W
High standard request to ensure data transit
Compliant with hot-swappable QSFP28 MSA standards, RoHS standards, CFR standards, CR standards, simplifying wiring and providing a cost-effective way to lay out short-distance lines.
High stability: the working environment temperature can reach 0°C to +70°C, and also supports IEEE 802.3, real-time configuration
Fully adaptable to brands and varieties of devices
IEEE CAUI-4 compliant high-speed 100GBASE-AOC 100G Ethernet electrical interface in compact QSFP28 form factor for high panel density in network equipment.
Each 100G AOC QSFP28 TO QSFP28 Active Optical Cable 100% passed TDR & VNA tested.
Hot Pluggable Compact design
with an easily plug-and-play compact design, can prevent operating errors and reduce construction errors, ensuring good mechanical properties, high performance, and reliability.
Applications
High-Density Data Center
Backbone Network
Optical Module Connection
Certificates
COC
COC
ISO
FCC SDoC
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
How We Can Stand By You
Quick Response within 24 Hours
One-to-one Consulting Service
One-to-one Consulting Service
Super Strict Quality Control
Huge Production Capacity
Never Change Price Arbitrarily
After-sales Services
When you encounter problems with your optical communication equipment or system, you can contact us and submit a service request via:
Phone: +86-755-33532578
Email: sales@fiberopticom.com
WhatsApp: 8619129420326
FAQ
Q: What is AOC active optical cable?
It is a high-speed data transmission cable that uses optical technology to transmit data.
Q: What is the difference between AOC and DAC?
A:
1. AOC and DAC have different transmission media
AOC cables are made of optical fiber materials and belong to the field of optical fiber communications, while DAC cables are made of copper wires and belong to the field of electrical communications.
2. AOC and DAC have different transmission distances
AOC uses optical fiber transmission internally, so the transmission distance is long, the wiring is convenient, and it is not sensitive to electromagnetic radiation;
The DAC uses copper internally, so the transmission distance is extremely short and will be subject to electromagnetic interference.
3. AOC and DAC have different internal optics
AOC contains a laser inside,
DACs contain no optics inside, so they have low power consumption and lower insertion loss.
4. AOC and DAC have different costs
AOC optical fiber materials are more expensive than copper cables, and the cost of lasers is also high, so the price of AOC is much higher than that of DAC.
Q: What is 100G QSFP28?
100g QSFP28 is designed for high-speed data transmission of 100 Gigabit Ethernet, EDR InfiniBand and 32G Fiber Channel.
