Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of cv017 dome fiber optic splice closure ip68 in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

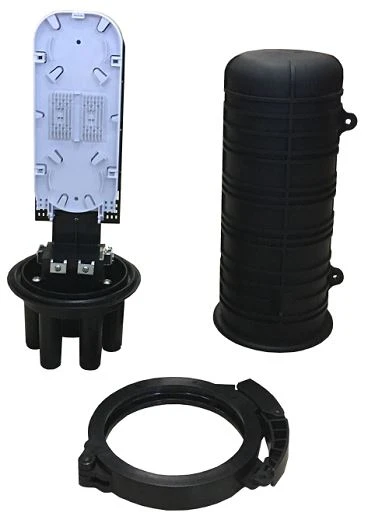

CV017 is widely applied to the splicing, distributing variable optical cables.
Overlook
Overview
Above
Bottom
Before
Features:
Splice tray: Max. 5pcs, each 24cores
Cable port: 4pcs round port φ20mm, 1pc oval port for supporting cable entry without cutting. All cable ports are heat shrink sealing.
Waterproof: IP68
Wall-mounting, aerial hanger and pole-mount,buried
Material: outer shell use high impact resistance PP materials with UV.Inside structure use ABS plasticAccessories:
Item | name | Specification | unit | Qty(pcs) | remark |
1 | tube | D=Ф4mm thickness 0.6mm,white | M | 2 | |
2 | Cable splitter | Size:S | PCS | 1 | |
3 | Silver pater | 15cm*10cm（with adhesive） | PCS | 1 | |
4 | Heat shrinkable tube | Ф30*100mm/black | PCS | 4 | |
5 | Heat shrinkable tube | Ф60*150mm/black | PCS | 1 | |
6 | Plastic cable tie | 3mm*120mm/white | PCS | 5 | |
7 | Splice protect sleeve | 60MM*3.0*1.5 | PCS | / | As per fiber qty |
8 | Insulating tape | 0.15*17mm*8 /black | PCS | 1 | |
9 | Magic tape | 350MM*15MM*3MM/black | PCS | 1 | |
10 | Abrasive paper | 320#（280*60mm） | PCS | 1 | |
11 | Aerial kits | 201 stainless steel | sets | 1 |
Hot Tags: cv017 dome fiber optic splice closure ip68, China, manufacturers, suppliers, factory, wholesale, customized, Vertical Cap Fiber Connection Box, fiber optic splice closure price, fiber optic closure, Vertical Connection Box for Optical Fiber, fiber optic cable splice enclosure, Vertical Optical Cable Connection Box
Features:
Splice tray: Max. 5pcs, each 24cores
Cable port: 4pcs round port φ20mm, 1pc oval port for supporting cable entry without cutting. All cable ports are heat shrink sealing.
Waterproof: IP68
Wall-mounting, aerial hanger and pole-mount,buried
Material: outer shell use high impact resistance PP materials with UV.Inside structure use ABS plastic
