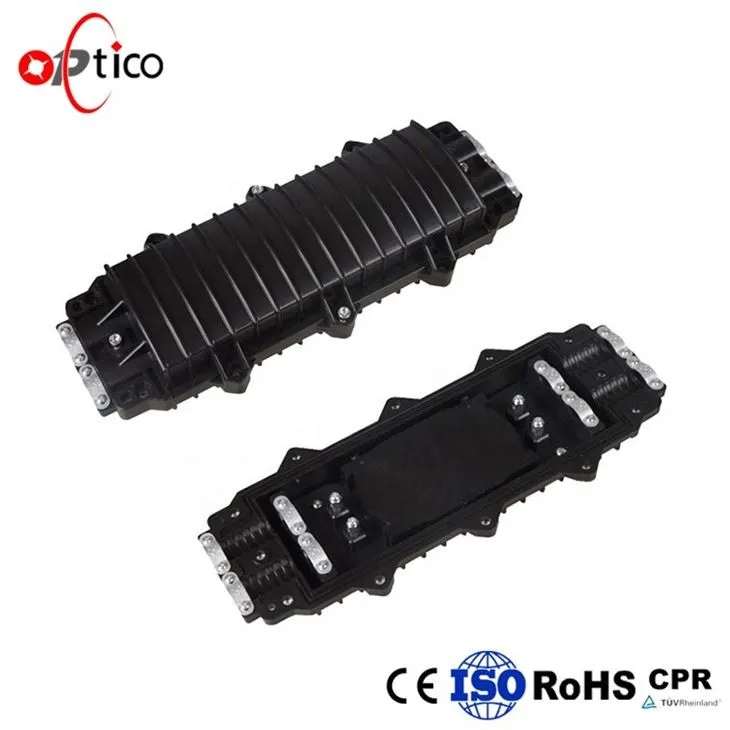

96 Core Fiber Optic Horizontal Closure
Horizontal optical cable joint box, also called optical cable splicing box and barrel, is where the end of the optical cable is connected, and then connected to the optical switch through the optical fiber jumper.
Prevents material aging caused by heat, cold, light, oxygen and microorganisms in nature, and has excellent mechanical strength. The sturdy fiber optic cable connector box shell and main structural parts can withstand the harshest environmental changes, while being flame retardant and waterproof Function to protect against vibration, impact, cable stretching, twisting, etc.
Place of Origin: Shenzhen, China
Brand Name: OPTICO or OEM
Model Number: OP-HOR-CLOSURE-96C
Type: Racks & Enclosure, Horizontal
No. of Fiber: 96F
Use: FTTH
Product name: fiber optic splice closure
Application: Telecommunication
Color: Black
Material: PC ABS
Dimension: 450*220*110 (mm)
Weight: 2750g-3200g
inlet/outlet ports: 6 pieces
Diameter of fiber cable: 8mm-23mm
Supply Ability: 50000 pcs/month
Packaging: 10pcs/carton, 64*47*47cm, 29-33KG
Port: Shenzhen
Feature
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Apllications:
It is suitable for straight-through and branch connections of overhead, pipeline, underground and direct-buried laying methods of various structural optical cables. The ambient temperature ranges from -40 to 65℃.
Structured optical cable connection in the terminal room.
Remark
Accessories for customers' selection: earthing deriving device, pressure testing valve, buffer tube for ribbon or bunchy fiber, internal metal stainless steel, etc.
Main Components
No. | Name of components | Quantity | Usage | Remarks |
1 | Housing | 1 set | Protecting fiber cable splices in whole | Internal diameter:378x136 (mm) |
2 | Insert plate | 2 pairs | Fixing the housing | 175x56x30(mm) |
3 | Fiber optic splice tray | Max 4 pieces (either bunchy or ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: |
(FOST) | Bunchy:6,12,24(cores) Ribbon:3,6 (pieces) | |||
4 | Foundation | 1 set | Fixing reinforced core of fiber- cable and FOST | |
5 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | |
6 | Port plug | 6 pieces | Sealing empty ports | |
7 | Pressure testing valve | 1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement |
8 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection | Configuration as per requirement |
Main Accessories
No. | Name of accessories | Quantity | Usage | Remarks |
1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
5 | Hanging hook | 1 set | For aerial use | |
6 | Earthing wire | 1 piece | Putting through between earthing devices | |
7 | Abrasive cloth | 1 piece | Scratching fiber cable | |
8 | Labeling paper | 1 piece | Labeling fiber | |
9 | Special wrench | 3 pieces | Fixing bolts, tightening nut of reinforced core | |
10 | Measuring paper | 1 piece | To measure circle, of which its diameter is enlarged with seal tape | |
11 | Buffer tube | customerized | Hitched to fibers and fixed with FOST, managing buffer | Configuration as per requirement |
12 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air. |
Certificates:

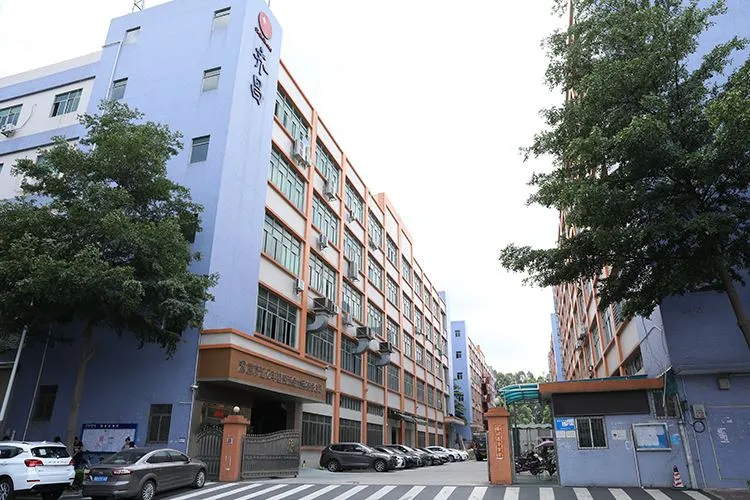

Factory:
