Name: China AWG CWDM4 Mux And Demux Module Manufacturers and Suppliers - Factory Wholesale - Optico Communication
Brand: Optico
SKU: 148936470

Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of awg cwdm4 mux and demux module in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.

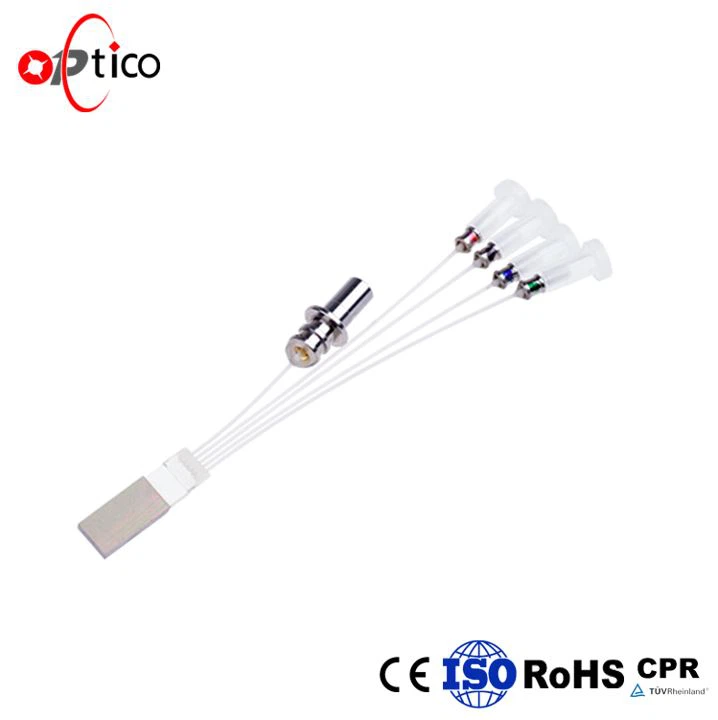

AWG CWDM4 Module

The application of CWDM technology in telecommunication networks is very mature. The International Telecommunication Union defines 18 CWDM channels with 20 nm interval in 1271-1611 nm band. The CWDM4 standard in data communication adopts four wavelengths, namely 1271-1331 nm, which are close to the zero dispersion point of G652 single-mode fiber. Data Center 100G Optical transceiver module, the current mainstream packaging form is QSFP28, integrated 4 semi-conductor laser, optical detector array and its driver circuit, as well as passive CWDM4 components. In order to integrate CWDM4 component into QSFP28 module, it is necessary to make the design as small as possible, and the size requirement is more strict than CCWDM module (a compact CWDM module) in telecom application.

Item	Condition/Measue Method	Symbol	Unit	Type
Item	Condition/Measue Method	Symbol	Unit	Mux	Demux
Channel		CH		4
Spacing		Spc	nm	20
CWL	25℃@3dB Center	λC	nm	CH1：1271
				CH2：1291
				CH3：1311
				CH4：1331
CWL Accuracy	25℃@3dB Center	△λC	nm	±1
1dB Bandwidth		BW1dB	nm	≥12	≥12
3dB Bandwidth		BW3dB	nm	≥15	≥15
Channel Unifomity	All channel ILmax-ILmin	Unit 1	dB	≤0.7
Chip Unifomity	All chip ILmax-ILmin	Unit 2	dB	≤2	/
Insertion Loss	@Passband±5nm;Including PDL and fiber coupling	IL	dB	2~3.5	≤2.5
Polarization Dependent Loss	Passband±1nm	PDL	dB	≤0.5
Ripple	Passband±5nm	R	dB	≤1.0
Return Loss		RL	dB	≥40
Isolation(Adjacent)	Passband±6.5nm	Iso	dB	/	≥20
Isolation(Non-Adjacent)	Passband±6.5nm	Iso	dB	/	≥20
Polarization Mode Dispersion		PMD	PS	≤0.15	≤0.15
Temperature Dependent Loss	-50~+85℃	TDL	dB	≤0.2	≤0.2
Wavelength thermal stability		WTS	Nm/℃	≤0.012	/
Channel Pitch			um	500	250
Input/Output Side				Identical Side	Opposite Side
Chip Size	Max Size		mm	≤7.6*4.0	≤10.2*1.6
Chip Height			mm	≤1.3	≤1.0
Operating Temperature			℃	-5~+80
Storage Temperature			℃	-40~+85

Features and advantages

Enough working bandwidth

Bending radius is very low

Best Channel consistency

Detailed structural drawing：

AWG CWDM4 Structure Size

AWG CWDM4 Module

Applications

Mainly used in transmitter and receiver of optical module, widely used in 40G, 100G High active optical module for optical signal multiplexing and demultiplexing.

QSFP+

QSFP28

In a CWDM4 optical transceiver module, two CWDM4 AWG chips are needed, one for multiplexing and transmitting optical signals and the other for demultiplexing and receiving optical signals. At the transmitter, CWDM4 AWG chip mainly adopts one-side input/output structure, but at the receiver, the demultiplexed wavelengths will be detected by the photodetector without coupling to the single-mode fiber.

OPTICO 4 WDM Production lines

4 WDM production lines

Imported test equipment

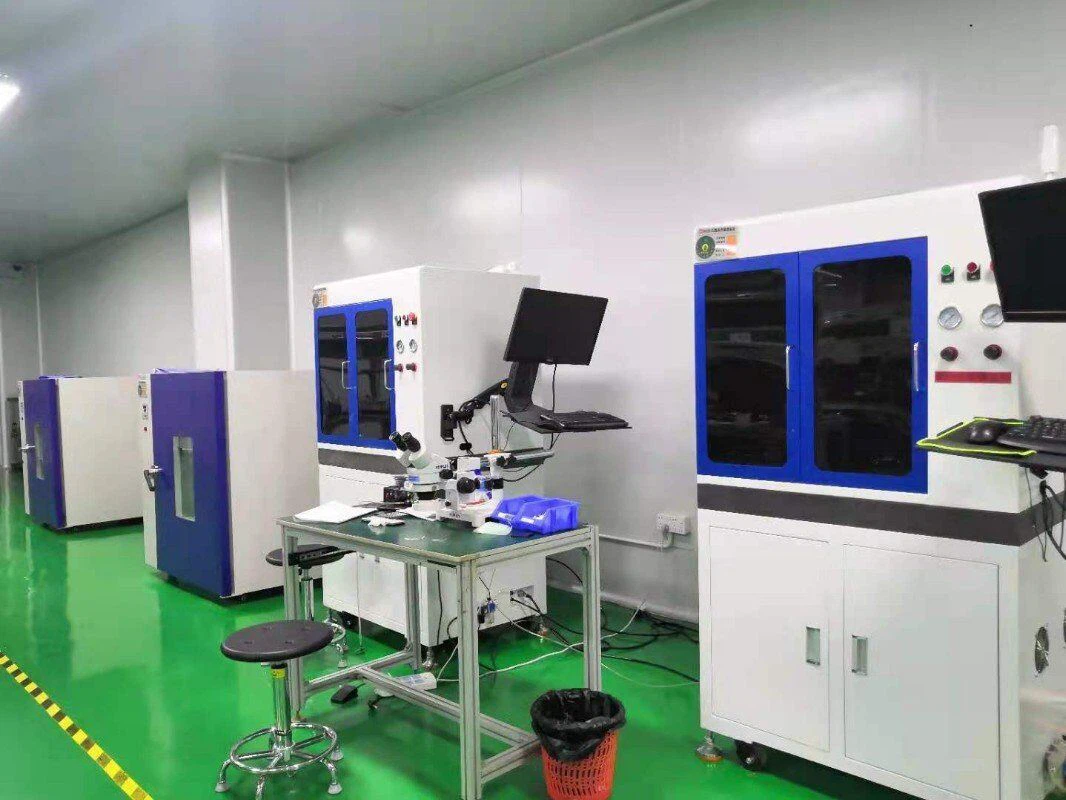

High and low temperature cycle

Our promise

100% high and low temperature test
100% rigorous optical testing
Professional one-on-one service team
Response within 24 hours
Fast delivery
