Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 1*2 lc connetor steel tube type fiber optic fbt in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Description:

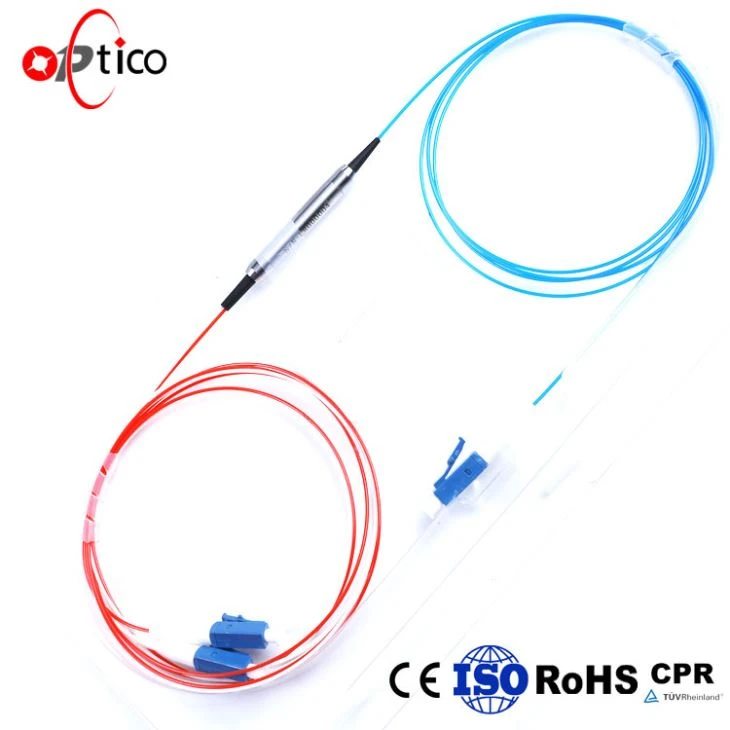

Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
Application:
FTTX networks
PON networks
CATV link
Features:
Low IL
Low PDL
High Reliability and Stability
Good channel-to-channel uniformity
Telcordia GR-1221/1209 and YD/T 2000.1-2009 (TLC) compliant
Specification:
|
Parameter |
Grade P |
|
|
Fiber type |
G657A1 |
|
|
Operating wavelength (nm) |
1310+/-40&1550+/-40 |
|
|
Typical excess loss (dB) |
0.07 |
|
|
Insertion loss (dB) |
50/50 |
≤3.6 |
|
40/60 |
≤4.4/2.6 |
|
|
30/70 |
≤5.7/1.9 |
|
|
25/75 |
≤7.0/1.7 |
|
|
20/80 |
≤7.6/1.25 |
|
|
10/90 |
≤10.7/0.70 |
|
|
5/95 |
≤13.8/0.4 |
|
|
2/98 |
≤18.05/0.25 |
|
|
1/99 |
≤21.15/0.2 |
|
|
Uniformity(50/50)(dB) |
≤0.5 |
|
|
Directivity (dB) |
≥55 |
|
|
Connector |
LC |
|
|
Length(M) |
1 |
Certifications:
