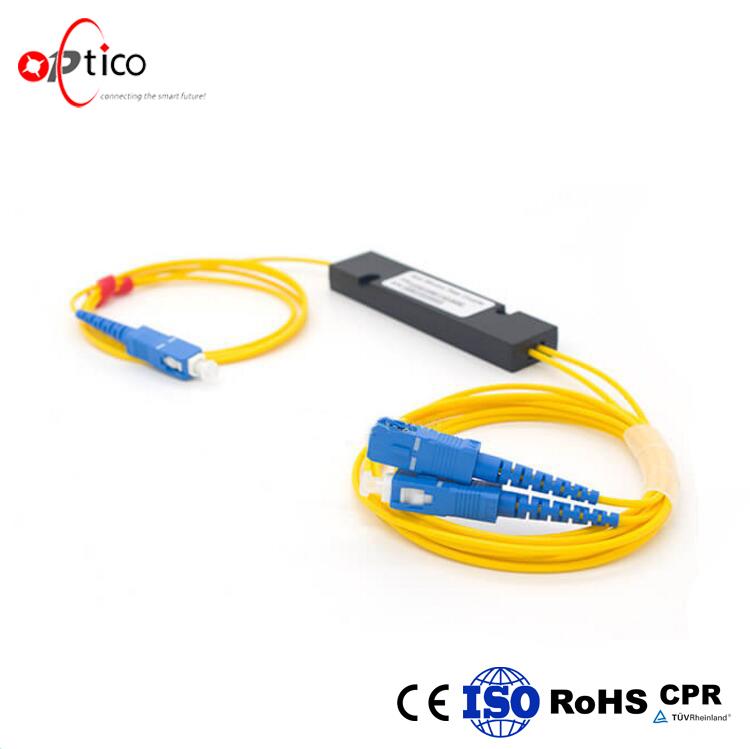

Fiber Optic FBT Splitter
FBT Splitter Introduction:

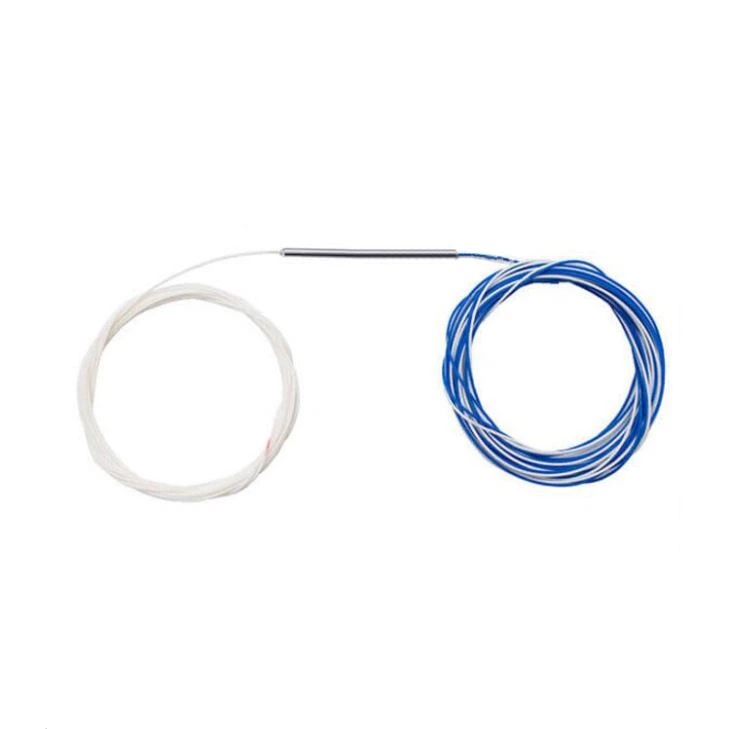

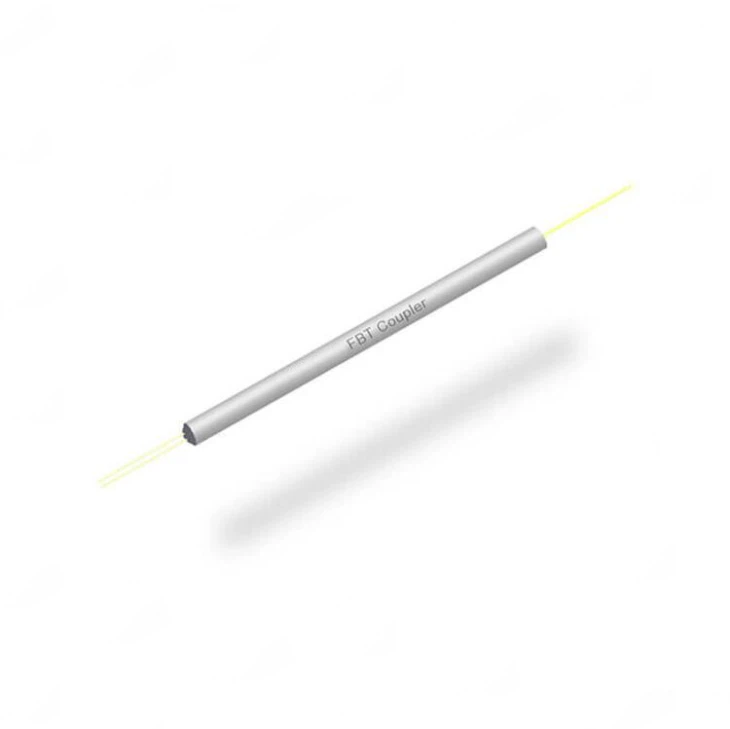

The FBT optical splitter bundles two or more optical fibers together, and then melts and stretches them on a taper, and monitors the change of the split ratio in real time. After the split ratio reaches the requirement, the melt stretch is completed, and one fiber is retained at one end. (The rest is cut off) as the input, and the other end is used as the multi-output. At present, the mature taper process can only pull 1×4 or less at a time. For devices larger than 1×4, connect them with multiple 1×2. It is then packaged in a splitter box.
Advantages:
(1) The taper coupler has more than 20 years of history and experience. Many equipments and processes only need to be used. The development cost is only a few tenths or even a hundredth of the PLC.
(2) The raw materials are only available in quartz substrates, optical fibers, heat-shrink tubing, stainless steel tubing and less glue, totaling no more than one US dollar. The investment depreciation of machines and instruments is less, 1 × 2, 1 × 4 Equal low channel splitters are low cost.
(3) The split ratio can be monitored in real time as needed, and an unequal splitter can be made.
Features:
Low additional loss;
Low polarization dependent loss;
Good stability;
Double working window;
Three working windows;
High wavelength isolation;
Small size;
Splitting ratio optional;
Application areas:
Optical fiber communication system
Optical LAN
CATV
FTTH
Fiber Optic Sensor
measuring instrument
Parameters:
|
Specifications |
1X2&2X2 FBT SMF |
1X2&2X2 FBT MMF |
|||
|
Parameter |
Grade P |
Grade A |
Grade P |
Grade A |
|
|
Operating wavelength (nm) |
1310+/-40&1550+/-40 |
1310+/40;850+/-40;1310&850+/-40 |
|||
|
Typical excess loss (dB) |
0.07 |
0.1 |
0.5 |
0.7 |
|
|
Insertion loss (dB) |
50/50 |
≤3.6 |
≤3.8 |
≤3.7 |
≤4.0 |
|
40/60 |
≤4.4/2.6 |
≤4.7/2.8 |
≤4.7/2.7 |
≤5.0/3.0 |
|
|
30/70 |
≤5.7/1.9 |
≤6.0/2.0 |
≤6.0/2.1 |
≤6.3/2.4 |
|
|
25/75 |
≤7.0/1.7 |
≤7.3/1.9 |
≤7.0/1.7 |
≤7.3/1.9 |
|
|
20/80 |
≤7.6/1.25 |
≤8.0/1.3 |
≤7.8/1.4 |
≤8.1/1.7 |
|
|
10/90 |
≤10.7/0.70 |
≤10.9/0.8 |
≤11.2/0.9 |
≤11.6/1.2 |
|
|
5/95 |
≤13.8/0.4 |
≤14.1/0.5 |
≤14.5/0.7 |
≤15.0/1.0 |
|
|
2/98 |
≤18.05/0.25 |
≤18.45/0.35 |
≤18.6/0.6 |
≤19.4/0.9 |
|
|
1/99 |
≤21.15/0.2 |
≤21.65/0.3 |
≤22.0/0.5 |
≤22.8/0.8 |
|
|
Uniformity(50/50)(dB) |
≤0.5 |
≤0.8 |
≤0.5 |
≤0.8 |
|
|
Directivity (dB) |
≥55 |
≥40for 50/125; ≥35for 62.5/125 |
|||
|
Operating temperature (℃) |
-40 ~ +85 |
-40 ~ +85 |
|||
|
*1.All parameters are without connectors |
|||||
|
*2.Connector Loss: 0.2dB/each added |
|||||
