Product Profile

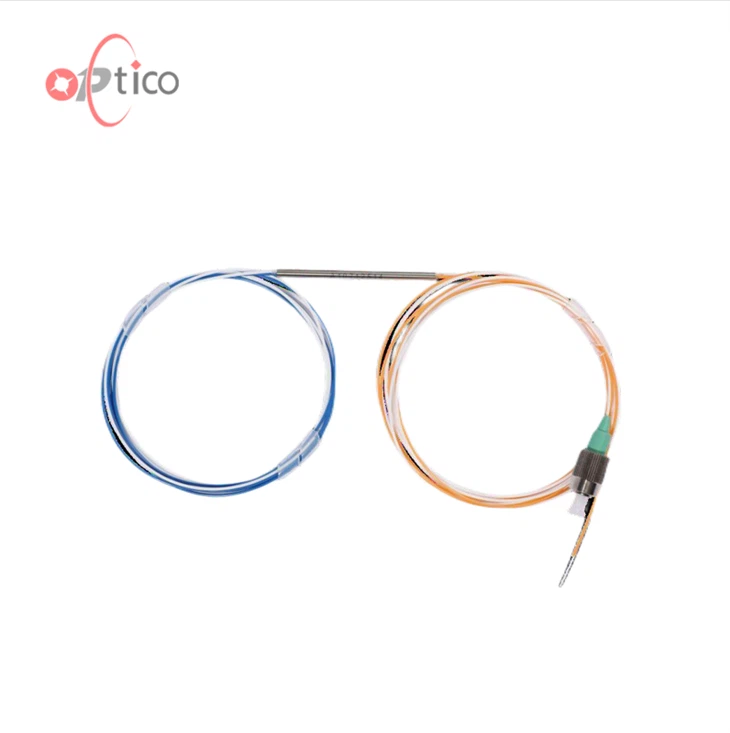

The Wide Bandwidth 1300/650nm WDM Combiner is designed to combine an alignment beam at around 650 nm with a 1300 nm signal. They are perfect for life science imaging applications due to their large ±80 nm bandwidth at 1300 nm. This combiner has a maximum power handling capacity of 300 mW with connectors or bare fiber and 500 mW when spliced. It also features compact design, high stability and reliability, and is 100% tested before delivery.
Products Specifications
| Parameter | Unit |
1*2-1300/650-WDM Combiner-5*38-900um
|
|
|
Operating Wavelength
|
nm
|
1300nm
|
650nm |
|
Bandwidth
|
nm
|
±80
|
+30/-20 |
|
Insertion Loss
|
dB
|
≤0.5
|
≤1.5dB |
|
Isolation
|
dB
|
≥13
|
N/A |
|
PDL
|
dB
|
≤0.2 | |
|
Dimensions
|
mm
|
OD 5.5x38mm | |
|
Pigtail Type
|
um
|
900 | |
|
Fiber Type
|
/
|
Corning SMF-28 | |
|
Max Power Level
|
/
|
300mW | |
|
Connector Type
|
/
|
OPTICO/SG FC Connector | |
|
Operating Temperature
|
℃
|
-40~85 | |
|
Storage Temperature
|
℃
|
-40~+85 | |
Product Features
Low Insertion Loss: The Wide Bandwidth 1300/650nm WDM Combiners have a low insertion loss less than 1.5dB, which minimizes the amount of signal lost during the combining process.
Compact design: The compact design of this combiner makes them easy to integrate into existing systems and reduces space requirements.
Wide Bandwidth: With a large bandwidth of ±80 nm at 1300 nm, these combiners provide superior performance in life science imaging applications.
High stability and reliability: The Wide Bandwidth 1300/650nm WDM Combiner is manufactured using mature technology and 100% tested before delivery, ensuring consistent and reliable performance over time.
WDM Combiner Drawing
Application
Optical Network Monitoring
Optical Fiber Sensing
Life Science Imaging
Ordering Process
1. Please send an email to Sales@fiberopticom.com expressing your interest in our products. It's preferable to include product images or webpage links to help OPTICO's sales team quickly and accurately locate the product.
2. OPTICO's sales team will respond with relevant information within 24 hours.
3. Both parties can discuss specific production specifications.
4. OPTICO's sales team will provide a quote based on your required quantity and specifications.
5. If the price is acceptable, you will make payment and OPTICO will begin the production process.
Delivery(7-15 Days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
Hot Tags: wide bandwidth 1300/650nm wdm combiner, China, manufacturers, suppliers, factory, wholesale, customized, FBT Splitter
| Parameter | Unit | 1*2-1300/650-WDM Combiner-5*38-900um | |
| Operating Wavelength | nm | 1300nm | 650nm |
| Bandwidth | nm | ±80 | +30/-20 |
| Insertion Loss | dB | ≤0.5 | ≤1.5dB |
| Isolation | dB | ≥13 | N/A |
| PDL | dB | ≤0.2 | |
| Dimensions | mm | OD 5.5x38mm | |
| Pigtail Type | um | 900 | |
| Fiber Type | / | Corning SMF-28 | |
| Max Power Level | / | 300mW | |
| Connector type | / | OPTICO/SG FC Connector | |
| Operating Temperature | ℃ | -40~85 | |
| Storage Temperature | ℃ | -40~+85 | |
