Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 24f mtp mpo fiber loopback test module in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product profile

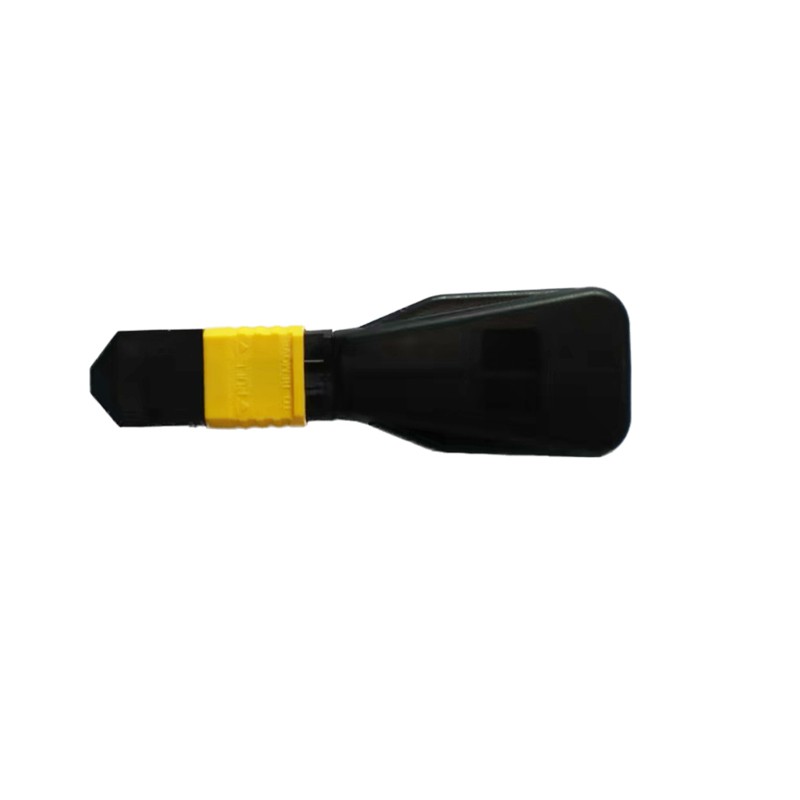

MPO loopback adapters of 24F MTP MPO Fiber Loopback Test Module are widely used in fiber optic testing applications, network restoration, system debugging, and more.24F MPO MTP Fiber Loopback Test Module is the ideal choice for troubleshooting issues.
MPO (Multi-fiber Push-On) loopback is a widely used testing and verification technology in fiber optic communications, especially in data centers and high-performance computing environments. MTP MPO fiber loopback test module technology provides an effective means to ensure the quality and performance of fiber optic connections. The following are some of the main application scenarios of MPO loopback and how it is used in data centers.
MTP MPO fiber loopback test module has the function of connection verification in its application. MPO loopback technology can effectively verify the function of fiber optic connections by connecting MPO connectors directly to transmitters and receivers. Through this connection method, technicians can check whether the signal can be successfully and stably transmitted between the transmitter and receiver, thereby ensuring the reliability of the fiber optic line.
Product Specifications
| Brand | OPTICO |
| Fiber type | MM : OM3 OM4 OM5 / SM G657A2 |
| Fiber connector | MTP Female/Male, MPO Male/Female UPC |
| Configuration Type | 8/12/16F/24F |
| Insertion loss | SM ≤1.5dB, MM ≤1.2dB |
| Return loss | SM ≥50dB, MM ≥25dB |
| Size | 80mm*10mm |
| Operation temperature | -40 to 85°C |
| Slorage environment | -40 to 85°C |
| Fiber Color | Blue / Orange / Green /Brown / Gray / White / Red / Black / Customized |
| Jacket material | LSZH |
Product Features
Each MPO connector of the 24F MTP MPO Fiber Loopback Test Module is designed with physical contact (UPC) polish to minimize insertion loss during testing, making it ideal for efficient fiber optic network testing.
Corning/YOFC Fiber
All our MPO ferrules are from Hakusan
Our Brand Confidence Comes From A Strong Production Team
Applications
CATV
Data center
Communication systems
100% tested
IL/RL test
3D tested by Sumix
Temperature test
Types of certificates
CE
CPR
ISO
ROHS
High-density data center applications
How we can stand by you
Quick response within 24 hours
One-to-one consulting Service
Professional technical team support (RL can even reach 85dB/ Grade B connectors)
Super strict quality control (Real 1000 times plug experiment)
Huge production capacity
Never change prices arbitrarily
With 40G/100G optical module, it is used for fiber test, network repair and diagnosis of equipment failure. It is an ideal choice for testing the transmitted optical power and receiving sensitivity.
