Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of pm mpo breakout cable in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile
OPTICO PM MPO Breakout Cable is a high-density polarization maintaining fiber optic assembly designed for precise polarized light transmission and flexible optical interconnection in advanced photonic systems. Based on multi-channel MT ferrule technology, the cable integrates multiple polarization maintaining fibers into a compact MPO/MTP interface and provides breakout configurations for connecting high-density optical interfaces with individual optical devices.
The cable uses PANDA polarization maintaining fibers with customized key orientation control to maintain accurate polarization axis alignment during optical coupling and transmission. By preserving the polarization state of transmitted light, the PM MPO solution helps reduce polarization crosstalk and improves the stability of coherent optical signals.
Supporting multiple channel configurations including 4, 8, 12, 16, 24, and 32 fibers, OPTICO provides a reliable connection solution between lasers, silicon photonic chips, optical modules, and external optical systems. With precise manufacturing processes and customized termination options, the PM MPO Breakout Cable is suitable for silicon photonics, coherent optical communication, high-speed optical modules, optical sensing, and precision measurement applications.
Product Specifications
| Parameter | Standard Grade | Low Loss Grade |
| Insertion Loss(dB) |
≤0.7
|
≤0.35 |
| Return Loss(dB) | PC > 20dB, APC ≥ 60dB | |
| Polarization Extinction Ratio(dB) | ≥20 | ≥23 |
| Operating Wavelength(nm) | 1310 / 1550 | |
| Connector Type | MPO / MTP / MT | |
| Fiber Type | Corning PM13-U25D / PM15-U25D (or Equivalent) | |
| Key Alignment | Slow Axis / Fast Axis Alignment | |
| Key Orientation | Customized | |
| Breakout Connector | FA / FC / LC / SC / E2000 | |
| Fiber Count | 4 / 8 / 12 / 16 / 24 / 32 | |
| Fiber Length | Customized | |
| Breakout Length | Customized (Typical 0.5M) | |
| Operating Temperature | -20℃ ~ +70℃ | |
Product Features
Precise Polarization Alignment
The PM MPO Breakout Cable provides accurate polarization axis control with customized key orientation, ensuring stable optical coupling performance for polarization-sensitive applications.
High-Density Multi-Fiber Integration
The compact MT ferrule-based structure enables multi-channel fiber integration through MPO/MTP interfaces, helping simplify optical system design and improve connection density.
Stable Polarization Performance
Designed with polarization maintaining fibers, the cable helps preserve polarization stability during optical transmission and reduce polarization-related signal interference.
Flexible Customization Options
Fiber count, connector configuration, breakout length, and polarization alignment can be customized to meet different optical module and photonic system requirements.
Applications

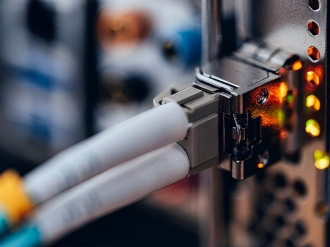

Optical Module Interconnection

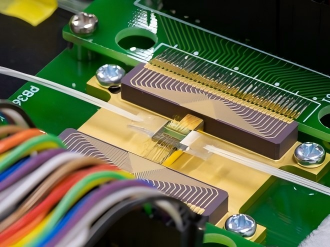

Silicon Photonics & Coherent Optics

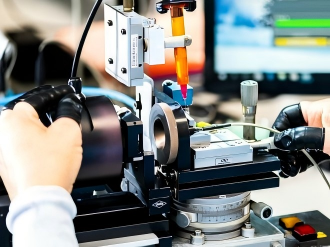

Gyroscope & Inertial Sensing
