The OPTICO Polarization Maintaining MPO MTP Breakout Cable connects a shared multifiber interface to individually terminated PM fiber branches. This arrangement allows separate laser sources, instruments or device ports to connect through one MPO/MTP interface, while keeping each optical channel identifiable for installation and testing.
For polarization sensitive connections, fiber routing and axis orientation must be defined together. The assembly can be configured with PANDA PM fiber, with the specified polarization axis aligned to the connector key reference at each termination. Fiber model, operating wavelength and axis alignment requirements are confirmed according to the connected devices.
MPO/MTP connector gender, branch connector types, cable lengths and channel mapping can be specified to suit the equipment layout. Channel identification and agreed optical acceptance criteria support verification of each branch, making the assembly suitable for PM optical test setups, laser connections and photonic device evaluation.
Product Specifications
| Parameter | Standard Grade | Low Loss Grade |
|---|---|---|
| Insertion Loss (dB) | ≤0.70 | ≤0.35 |
| Return Loss (dB) | PC >20 / APC ≥60 | |
| Polarization Extinction Ratio (dB) | ≥20 | ≥23 |
| Operating Wavelength (nm) | 1310 / 1550 | |
| Multifiber Interface | MPO / MTP / MT | |
| PM Fiber Options | Corning PM13-U25D / PM15-U25D or equivalent | |
| Polarization Axis Alignment | Slow axis / Fast axis | |
| Connector Key Orientation | Customized | |
| Breakout Termination Options | FA / FC / LC / SC / E2000 | |
| Fiber Count | 4 / 8 / 12 / 16 / 24 / 32 | |
| Overall Cable Length | Customized | |
| Breakout Length | Customized, typically 0.5 m | |
| Operating Temperature | −20°C to +70°C | |
Product Features
Individual Access to PM Channels
Separate branches allow individual channels to connect to different devices or instruments. Each branch can be accessed for measurement or replacement of the connected device without disconnecting the shared MPO/MTP interface.
Defined Axis Reference at Each End
Slow or fast axis alignment is specified relative to the connector key at each termination. This gives the multifiber interface and individual branches a defined polarization reference for connection to matching PM components.
Channel Mapping for Device Connections
The assembly drawing defines the correspondence between MPO/MTP fiber positions and breakout ports. Branch identification can follow this mapping, helping operators connect the intended laser, detector or test channel.
Optical Criteria for Each Branch
Insertion loss, return loss and polarization extinction ratio provide separate checks on transmission and polarization performance. Acceptance limits are specified for individual channels at the selected operating wavelength.
Applications
PM Channel Measurement

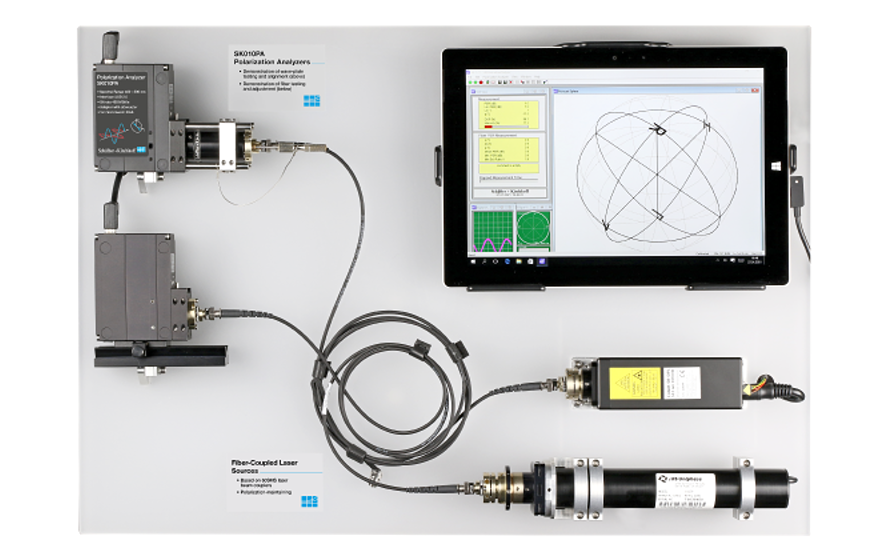

Provides individual branch access for polarization analysis and optical measurements, helping operators evaluate each PM channel within a shared MPO/MTP connection.
Photonic Device Evaluation
Connects compatible PM interfaces to separate device ports in silicon photonics test setups, with axis references and branch mapping defined for the required optical paths.
PM Laser Source Connections

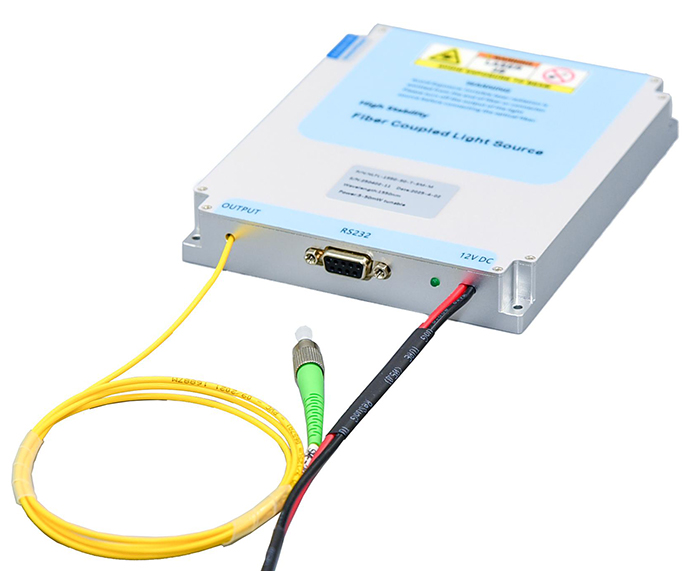

Routes separate PM laser outputs to a compatible multifiber interface. Individual branches accommodate source placement while maintaining the specified channel and polarization axis correspondence.
Images illustrate application equipment only. Connector compatibility must be confirmed for each setup.
Certificates
CE
CPR
(1)-01.png?size=270x0 "ISO")
ISO
RoHS
Ordering Process
Define the PM Requirements
Provide the fiber model, operating wavelength, channel count and quantity. Specify the required IL, RL and PER limits.
Specify Each Termination
Select the MPO/MTP gender, branch connectors and polish types. Define the slow or fast axis alignment relative to each connector key.
Review Drawing and Quotation
Confirm channel mapping, branch labels, overall length and breakout lengths. Review the quotation, delivery schedule and acceptance criteria.
Confirm the Order
Approve the final specifications and drawing, then place the order. Production proceeds according to the agreed commercial terms.
Verification and Shipment
Verify channel correspondence and agreed optical performance. Supply the completed assemblies with the specified test records and protective packaging.
