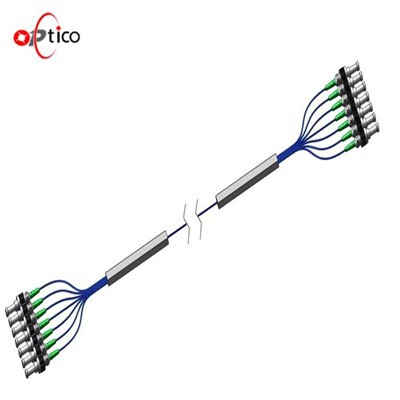

4C Multicore Fiber Fanout Pairs
The insatiable global appetite for data is pushing conventional optical fibers to their physical limits. While technologies like Wavelength Division Multiplexing (WDM) have been workhorses, a more fundamental evolution is underway.
The concept of multi-core fiber was firstly proposed by France Telecom in 1994. France Telecom and Alcatel developed 4-core single-mode fiber, and used these fibers to conduct the cable experiment. With the conduction of the experiment, it is proved that the fiber density is increased many times compared with ordinary single-core fiber. Unlike traditional single-mode fiber (SMF) or multimode fiber (MMF), which have just one. a Multicore Fiber is a single strand of glass fiber that contains multiple independent light-guiding cores, Each core can carry a separate data channel simultaneously, dramatically increasing the fiber capacity and spatial density without increasing the cable's physical size.
A comparison of MCF, SMF,and MMF
|
|
|
|
Parameter |
FAN-4C |
|
MCF Fiber Type |
YOFC MCF-4-42/125/250(SM) |
|
Operating Wavelength |
1310/1550nm |
|
Cut-Off Wavelength |
＜1300nm |
|
Mode Field Diameter |
8.9±0.5@1310nm/9.8±0.5@1550nm |
|
Core-to-Core Spacing |
41.5μm |
|
Fanout Pairs Insertion Loss |
≤1.0dB |
|
Crosstalk (dB) |
>55dB |
|
Return Loss |
>55dB |
|
Core Configuration |
Square |
|
Single Mode Fiber Type |
Corning LBL(G657A2) fiber |
|
MCF Fiber Length |
1+/-0.05m |
|
SMF Fiber Length |
1+/-0.05m |
|
Pigtail type |
0.9mm loose tube ,MCF:Black,SMF:White |
|
Package Dimensions |
Φ3x28mm |
|
Operating Temperature (°C) |
0-75℃ |
|
Connectorization |
SMF：FC/APC (narrow keyway) |
Applications of MCF Technology
--Data Center Interconnects (DCI): As data centers grow, MCF is the ultimate solution for moving colossal amounts of data between facilities.
--High-Performance Computing (HPC): Supercomputers require MCF provides ultra-low-latency, high-bandwidth links between nodes.
--Undersea Cables: Deploying new transoceanic cables is incredibly expensive. MCF allows for a massive capacity upgrade.
--Aerospace and Aviation: The weight and space savings are critical in aircraft and satellites, where every gram counts in this field.
FAQ
Q: What makes multicore fiber different from regular fiber?
A: Multicore fiber has many cores in one cable. Each core sends its own signal. Regular fiber only has one core. Multicore fiber lets more data move at once. You get faster speeds and more space for data.
FAQ
Q: What benefits do you get from using multicore fiber?
A: You get higher bandwidth and faster downloads. There are more channels for data. Multicore fiber saves space and money. You can connect more devices at the same time. Streaming and downloads are smoother.
FAQ
Q: What industries use multicore fiber the most?
A: Multicore fiber is used in submarine cables and data centers. Hospitals, stock exchange centers also use it for fast data. These places need strong and quick connections. Multicore fiber helps send more information without waiting.
