Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 12f 10g om3 mtp jumper polarity b in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product profile

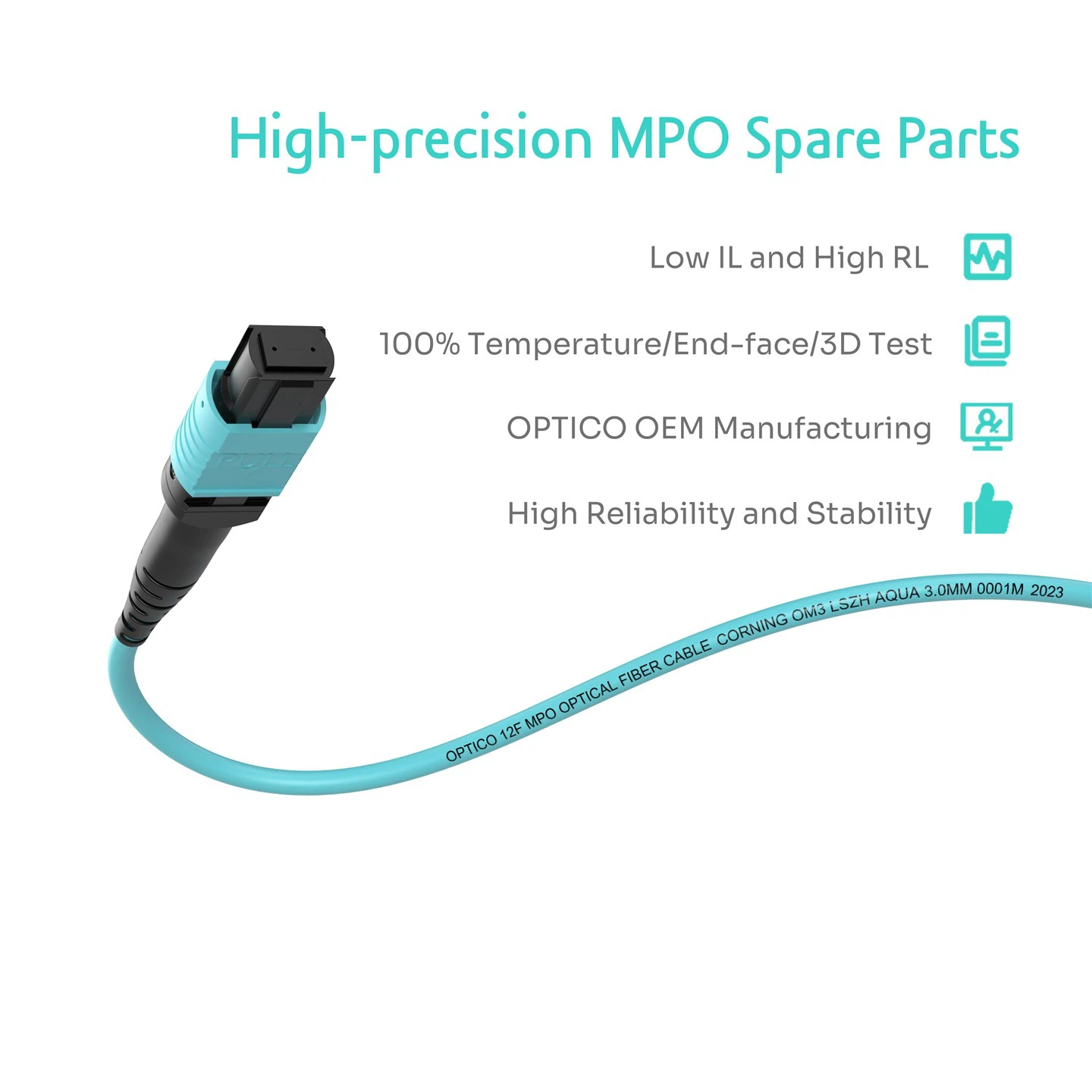

The OPTICO 12F 10G OM3 MTP Jumper Polarity B is a cutting-edge fiber optic interconnection solution designed to meet a diverse range of connectivity requirements.
With a comprehensive array of connector styles, fiber types, and cable configurations available, Fiber Optic MPO Patch Cord offers a high-performance and adaptable solution for various networking applications.
With high-quality Hakusan ceramic ferrules, Fiber Optic MPO Patch Cord can achieve low insertion loss and high return loss, ensuring the quality and stability of data transmission.
Fiber Optic MPO Patch Cord can achieve 8 to 144 cores, providing different fiber modes (OS2, OM1, OM2, OM3, OM4, OM5) to achieve high-density connection
Product specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Versatile Connectivity
The 12F 10G OM3 MPO Fiber Optic Cable is compatible with a wide range of connector styles, fiber modes, and cable configurations, making it an ideal choice for various network setups.
High-Performance Fiber
Crafted for excellence, OM3 MPO Fiber Optic Cable are optimized for single-mode applications with an operating wavelength ranging from 1250nm to 1650nm. This ensures reliable and efficient data transmission.
Efficient Interchangeability
With an interchangeability of ≤0.20dB, OM3 MPO Fiber Optic Cable allow for seamless transitions between connections without compromising on performance.
Robust Durability
Engineered for resilience, the 12F 10G OM3 MPO Fiber Optic Cable Polarity B showcases durability with a ≤0.20dB typical change even after 500 mating cycles.
100% Strictly Tested Before delivery
MPO 3D Test
MPO Polarity Test
End-Surface test
IL/RL Test
our brand confidence comes from a strong production team
applications
Efficient interconnection
Realize 40G/100G SR4 direct connection
Allow expansion
Simplify existing cable management
Order guide
Transmission mode(SM or MM)
Number of fibers
Male or Female
Fire-proof level:PVC,LSZH,OFNR,OFNP
The color
Length customization
| 1 | 1m |
| 2 | 2m |
| 3 | 3m |
| 4 | ... |
| 5 | Custom |
Customization of cable diameter
| 1 | Ribbon cable |
| 2 | 3.0mm |
| 3 | 3.6mm |
| 4 | 4.0mm |
| 5 | 5.0 |
| 6 | ... |

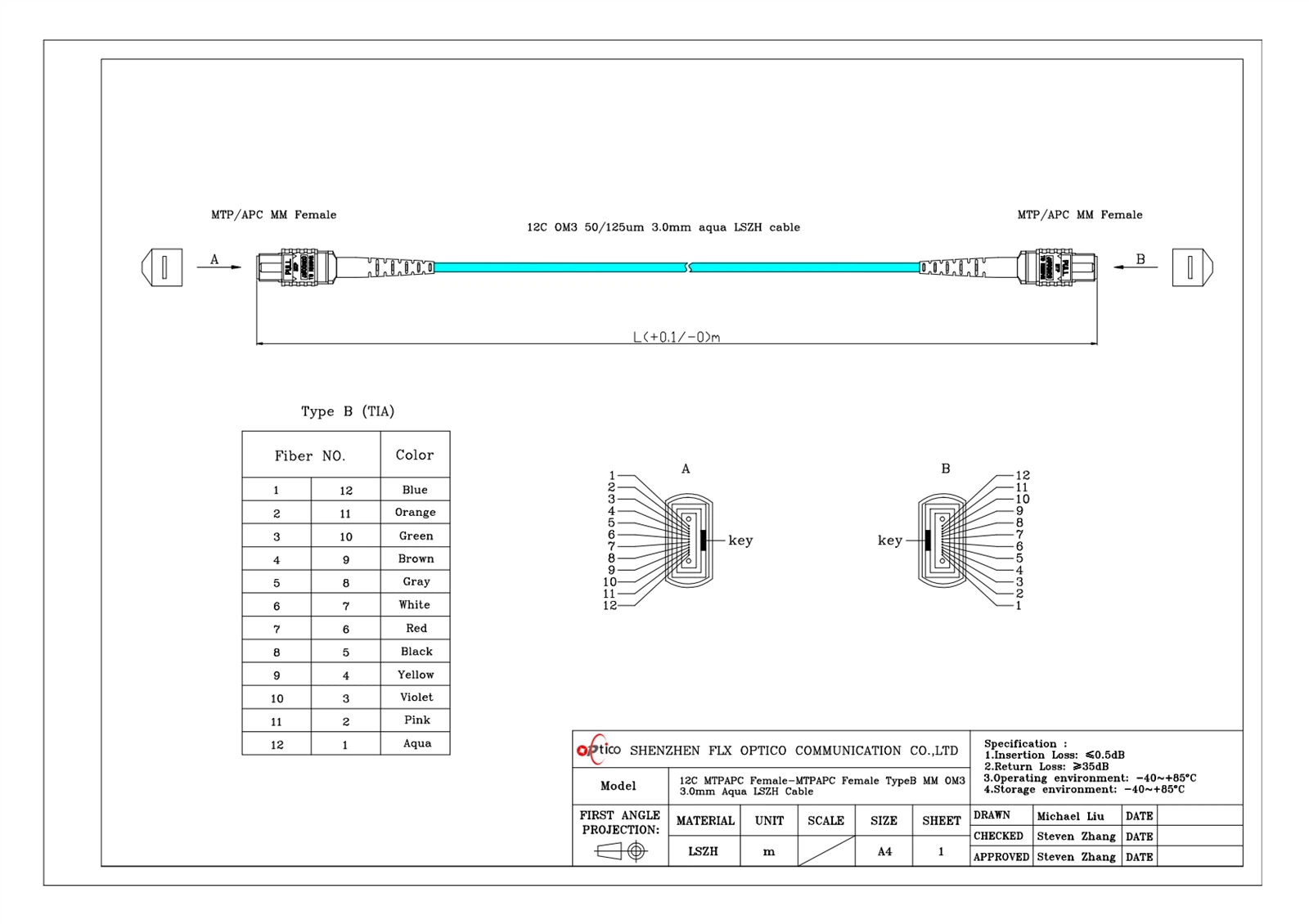

Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements that can be customized.
Welcome to contact us to customize your special requirements.

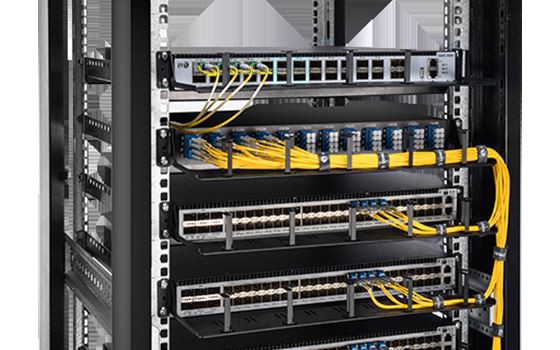

Connectivity Solutions
10G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment:
In the core connect, a Switch is Equipped with the 10G SFP+ 300m 850nm Optical Transceiver Module to send and receive signals. These modules enable data transmission speeds of up to 10 Gbps, with a maximum transmission distance of 300 meters, making them suitable for data centers and large network environments.
b. Fiber Connection Method：
Connectivity is established using of LC UPC to LC UPC Duplex OM4 Multimode Patch Cord or MTP to LC 12F Bundle Patch Cable.
c. Fiber Cabling Management:
24F 2×12F MPO-6LC MPO Cassette, containing 24 LC duplex modules, is utilized along with a 1U high-density fiber enclosure. This setup optimizes fiber management and minimizes cable clutter.
2. Core to Access Connection:
16F MPO-MPO Female Trunk Cable OM3 or 12F MTP MPO Fiber Cable can be used to contact the core connection and access cabling.
3. Access Cabling Solution:
The same connection approach of the core can also be applied to the access cabling solution, ensuring scalability and consistency throughout the network.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
How we can stand by you
Quick response within 24 hours
One-to-one consulting Service
Professional technical team support (RL can even reach 85dB/ Grade B connectors)
Super strict quality control (Real 1000 times plug experiment)
Huge production capacity
Never change prices arbitrarily
