Product Profile
The 16F MPO-MPO Male Trunk Cable Customizable SM MM is a versatile and adaptable optical fiber cable designed to excel in a wide range of networking scenarios. With the flexibility to support both single-mode (SM) and multimode (MM) applications, it features high-performance MPO female connectors and 16 corning optical fibers, enabling optimal functionality and reliability. Additionally, it provides consistent user quality, faster installation, and simpler cable management.
16F MPO-MPO Male Trunk Cable not only effectively meets the needs of modern data centers and high-speed networks, but also ensures efficient coordination with standard MPO hardware and accurate data transmission through its unique offset keying function.
This design makes the 16F MPO-MPO Male Trunk Cable an important choice for 400GbE and 800GbE systems, which can further promote the improvement of data transmission efficiency while ensuring connection stability.
With the increasing attention paid to high-performance fiber solutions, the emergence of 16F MPO-MPO Male Trunk Cable provides an effective solution to this challenge, demonstrating its unique advantages in the construction of new facilities and the optimization of existing networks.
Product specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24/32/48 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 20 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
16 fiber optic MPO patch cord cater to diverse needs by offering a range of fiber and cable options. They are available in Single Mode (SM), OM3, OM4, and OM5 variants. The standardized color-coding simplifies identification: SM in yellow, OM3 in aqua, OM4 in rose (with purple available), and OM5 in green. And the standardized color-coding simplifies identification: SM in yellow, OM3 in aqua, OM4 in rose (with purple available), and OM5 in green.
The factory-terminated nature of 16 fiber optic MPO patch cord significantly reduces installation and reconfiguration time during moves, adds, and changes. Configurable length assemblies further contribute to efficient cable management by minimizing slack and patch field congestion.
Premium MPO connectors with low loss and Bend Insensitive fiber contribute to optimized performance of the MPO patch cord, reducing signal losses and minimizing power penalties. Each MPO assembly undergoes 100% factory testing, ensuring reliable connectivity that adheres to TIA 568 and IEC 61754 standards.
16 fiber optic MPO patch cord future-proof networks by supporting next-generation speeds. Their modular connectivity facilitates smooth migration plans for evolving network requirements, accommodating speeds like 400G and 800G.
applications

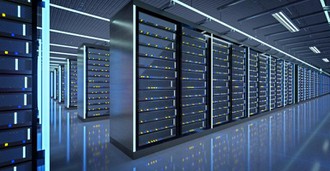

High Density Data Center
Backbone Network
Communication Rooms
Production Drawing
OPTICO owns a powerful team of engineers, production instruction drawings, logos, colors, connectors, the number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
100G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment: Deploy a high-performance switch and 100G QSFP28 Optical Transceiver Module for 100Gb/s speeds.
For short distances: use 100G-SR4-S 100m Optical Transceiver Module.
For long-distance: use 100G Fiber Optical SFP Transceiver 2KM, 100G LR4 QSFP 10km Optical Transceiver Module, or 100G QSFP28 Module Transceiver 40km.
b. Fiber Connection Method: Connect equipment using MTP Patch Cord Multimode 12 Cores.
c. Fiber Cabling Management: Implement 12 Port MTP Panel and high-density Optical MTP Panel for organized cable storage.
2. Core to Access Connection: Use 12F MTP MPO Fiber Cable to link the core and access.
Alternatively, we can also use 16F MPO-MPO Female Trunk Cable OM5 to connect Core and Access.
3. Access Cabling Solution: Identical to the core cabling solution.
a. Core Connection Equipment: Deploy a high-performance switch and 100G QSFP28 Optical Transceiver Module for 100Gb/s speeds.
For short distances: use 100G-SR4-S 100m Optical Transceiver Module.
For long-distance: use 100G Fiber Optical SFP Transceiver 2KM, 100G LR4 QSFP 10km Optical Transceiver Module, or 100G QSFP28 Module Transceiver 40km.
b. Fiber Connection Method: Connect equipment using MTP Patch Cord Multimode 12 Cores.
c. Fiber Cabling Management: Implement 12 Port MTP Panel and high-density Optical MTP Panel for organized cable storage.
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
delivery(7-15 days)
OPTICO offers a range of reliable delivery options, including air freight, sea freight, land freight, and express shipping through trusted providers like FedEx, DHL, and UPS. Whether you need speed, cost-effectiveness, or flexibility, OPTICO has got you covered. Trust OPTICO to get your products where they need to go, safely and on time.
