Product profile
As AI computing and storage devices are installed into the data center, more fiber cabling is needed to support the higher speeds required for the graphics processing units (GPU) to function properly. A basic AI compute architecture has 128 nodes or servers with 8 spine and 16 leaf switches. The number of compute fiber strands between these devices is 8192, even not including the storage, in-Band and out-of-band management connectivity needed for the architecture.Therefore, having a structured cabling system to support connectivity between the network racks and the servers and switches helps manage all these cables. The MTP-to-MTP trunks can scale up in fiber counts to best match the application.

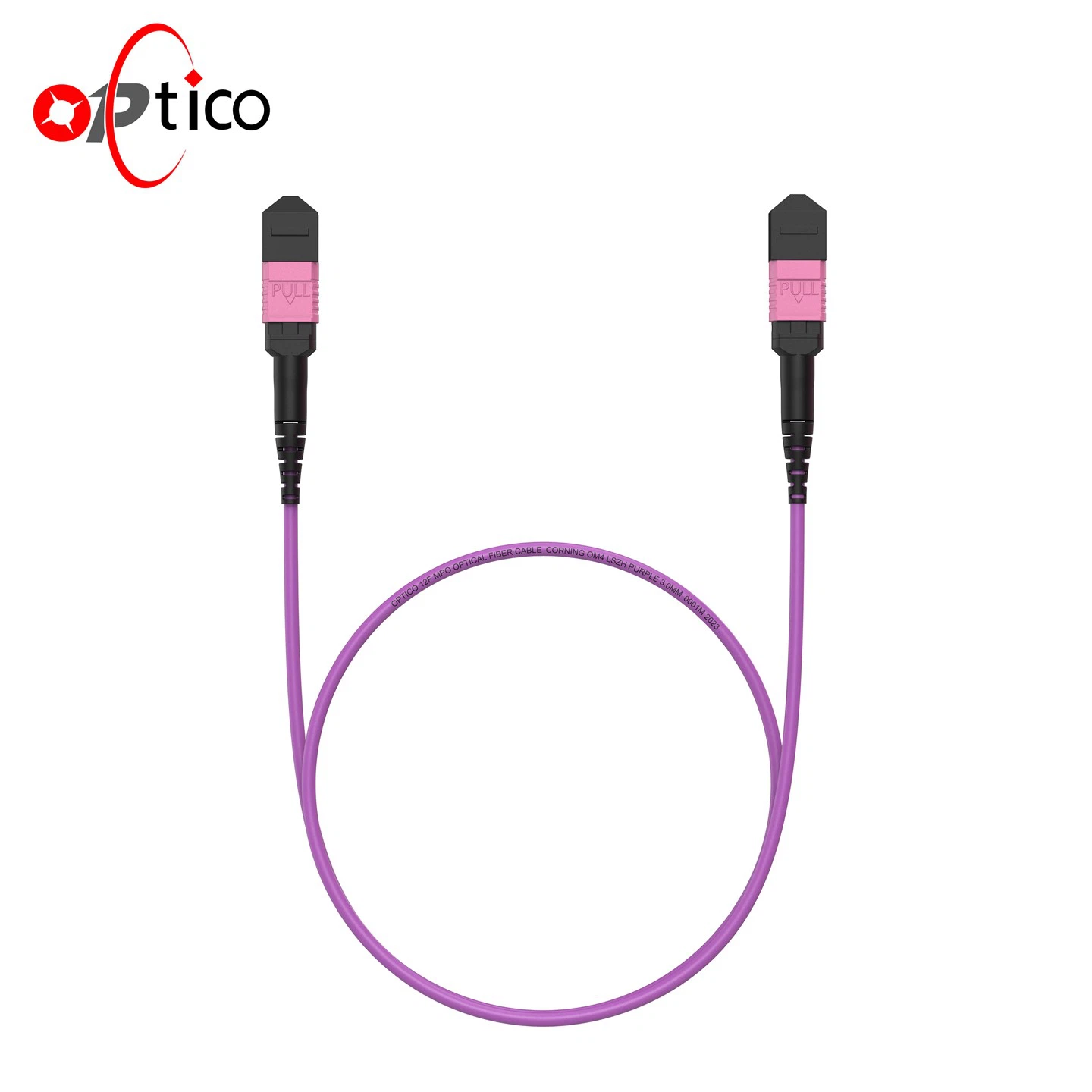

10M 12F MTP Pro OM4 Jumper Plenum patch cord has a standard insertion loss of ≤0.7dB and a low-loss type insertion loss of ≤0.35dB, providing a cutting-edge solution for high-performance optical connections.
The cable is equipped with a bend-resistant core wire and advanced MTP®PRO connectors, which excel in reducing losses through precise polishing. The built-in high-performance MTP Pro connector ensures optimal signal integrity.
The polarity and male-female head of Fiber MTP cable can be switched quickly by a conversion tool, without disassembling the shell, and the operation is simple. Cable jacket class is per-request PVC/OFNP/ LSZH (Low Smoke Zero Halogen), which withstands harsh working conditions and features wide-range temperature tolerance, high tensile strength and minimum bending radius. This helps simplify interoperability and integration efforts within the data center environment.
Product Specifications
| Physical Properties | Parameter | ||
| Fiber Count | 8/12/16/24 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | US Conec MTP Female/Male; MPO Female/Male | ||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Conventional/ Customized | ||
| Cable Diameter(mm) | 2.0mm/3.0mm | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
|
|
|||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | ≤0.35 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 60, MM ≥ 35 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -40 ~ +85 | ||
| Storage Temperature(°C) | -20 ~ +70 | ||
Product Features
Precision Engineered
MTP Patch cable adopts bending insensitive cores coupled with pre-terminated MTP®Pro connectors, typically used for Patching within a cabinet. It guarantees minimal signal loss through meticulous polishing, optimal 0.35dB Low IL. For high standard, it is controlled max 0.25dB.
Dynamic Polarity Switch
The innovative design enables swift polarity and male-female head switching through a conversion tool, eliminating the need for shell disassembly. This revolutionary feature enhances ease of use and flexibility in setups.
Impressive Transmission Distances
With a remarkable 40G/100G transmission distance of 150 meters at 850nm, and a 10G transmission distance of 400 meters at the same wavelength, this jumper ensures seamless communication over extended distances, making it suitable for both short and medium-range networking scenarios such as high rate data centers.
Reliability and Performance
A fine-quality MTP cabling system minimizes signal interference, crosstalk, and other issues that can degrade network performance. This ensures reliable and consistent data transmission speeds throughout the data center, which is crucial for maintaining optimal operational efficiency.
Corning/YOFC fiber
High quality MTP/MPO Connectors
All our ferrules are from HAKUSAN
High quality jacket material- enviromental friendly
our brand confidence comes from a strong production team
applications
Data center
Network interconnection
Network exspansion
Structured modules
100% strictly tested before delivery
IL/RL test
3D test
End-surface Test
MPO Polarity Test
Production Drawing
OPTICO own a strong team of engineers, production instruction drawings, logos, colors, connectors, number of cores, and other special requirements can be customized.
Welcome to contact us to customize your special requirements.
Connectivity Solutions
25G Trunk Cabling Solution
1. Core Cabling Solution:
a. Core Connection Equipment
Utilize a high-performance switch with a 25G SFP28 Optical Transceiver Module, the data transmission rate can reach speeds of 25.78 Gb/s.
b. Fiber Connection Method
Connect equipment using LC UPC to LC UPC Duplex OM4 Multimode Patch Cord or MTP Patch Cord 12 Cores.
c. Fiber Cabling Management:
Incorporate MTP-12 Cassette (12 Fibers OM4 Multimode, MTP to 6 x LC Duplex) and High-Density 1U Rack Mount Enclosure with a sliding drawer to organize cables and reduce clutter.
Alternatively, use 24F 2×12F MPO-6LC MPO Cassette OM3, Quad LC in the same 1U Rack Mount Enclosure.
2. Core to Access Connection
Employ 24F 2×12 MPO Trunk Cable OM3 Female or 24F MPO-MPO Female Trunk Cable OS2 for the core-to-access connections.
3. Access Cabling Solution
This follows the same specifications as the core cabling solution.
