Shenzhen Optico Communication Co., Ltd. is one of the most credible manufacturers and suppliers of 6m 72f mtp os2 patchcord in China. Please feel free to wholesale high quality customized products at competitive price form our factory. If you have any enquiry about free sample, please feel free to email us.
Product Profile

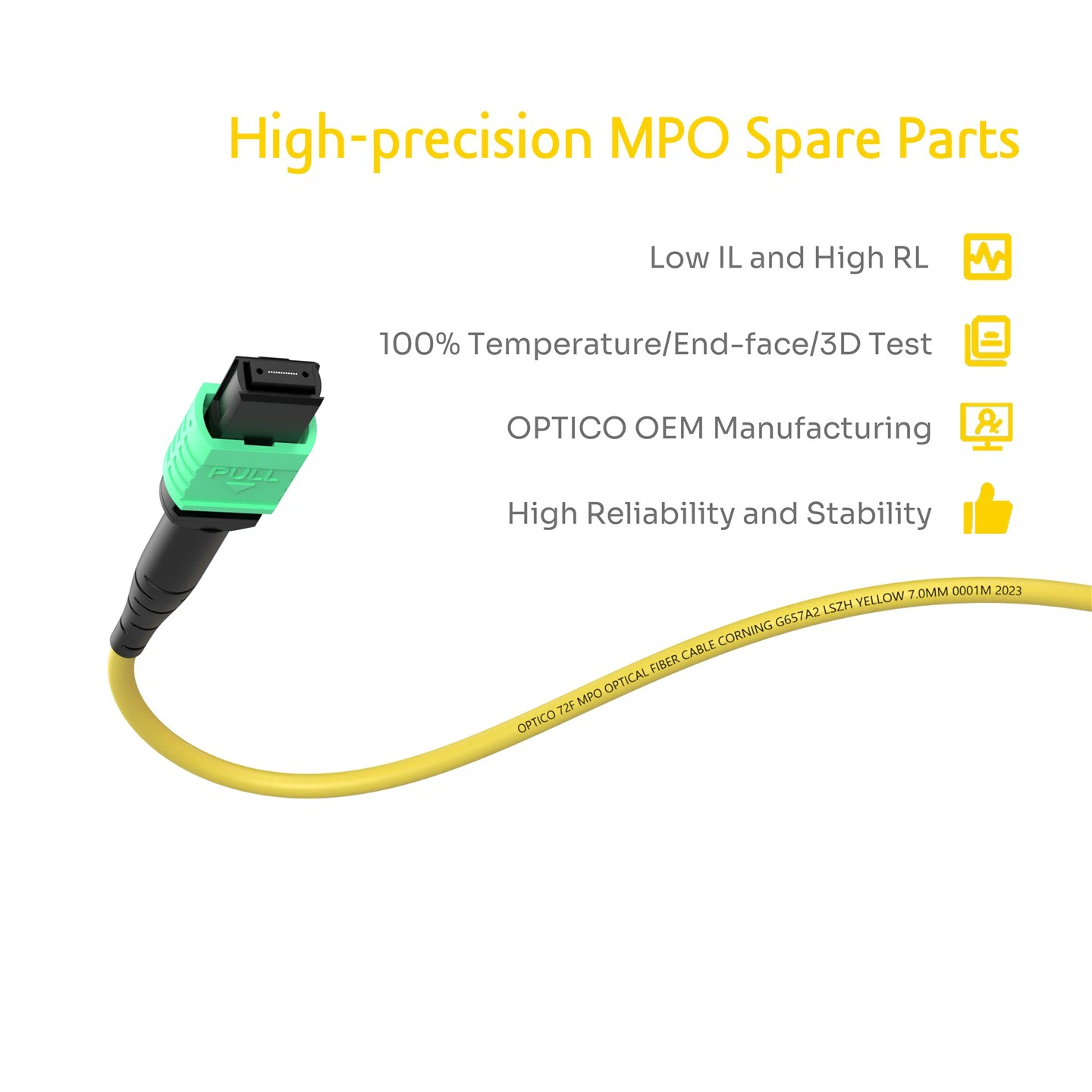

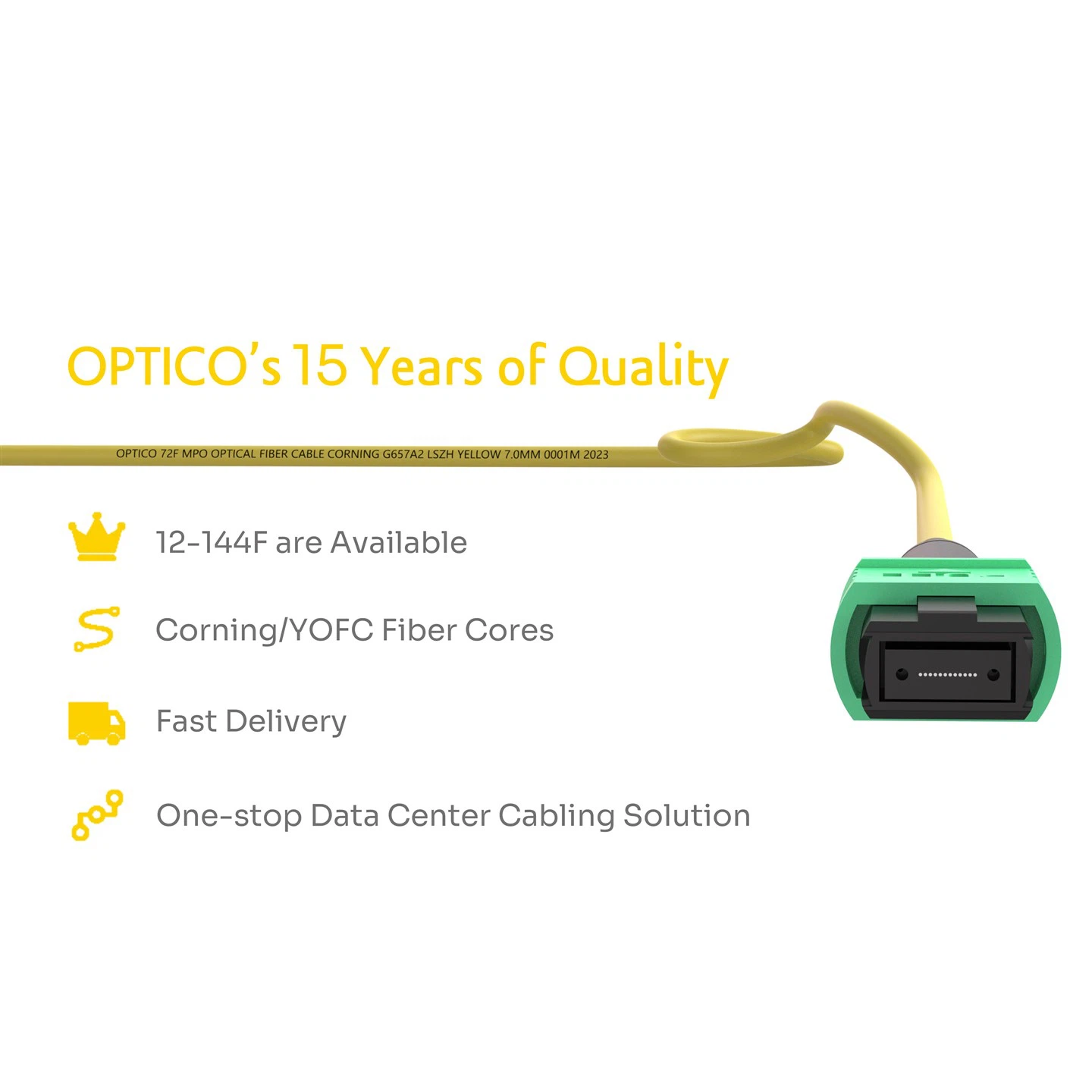

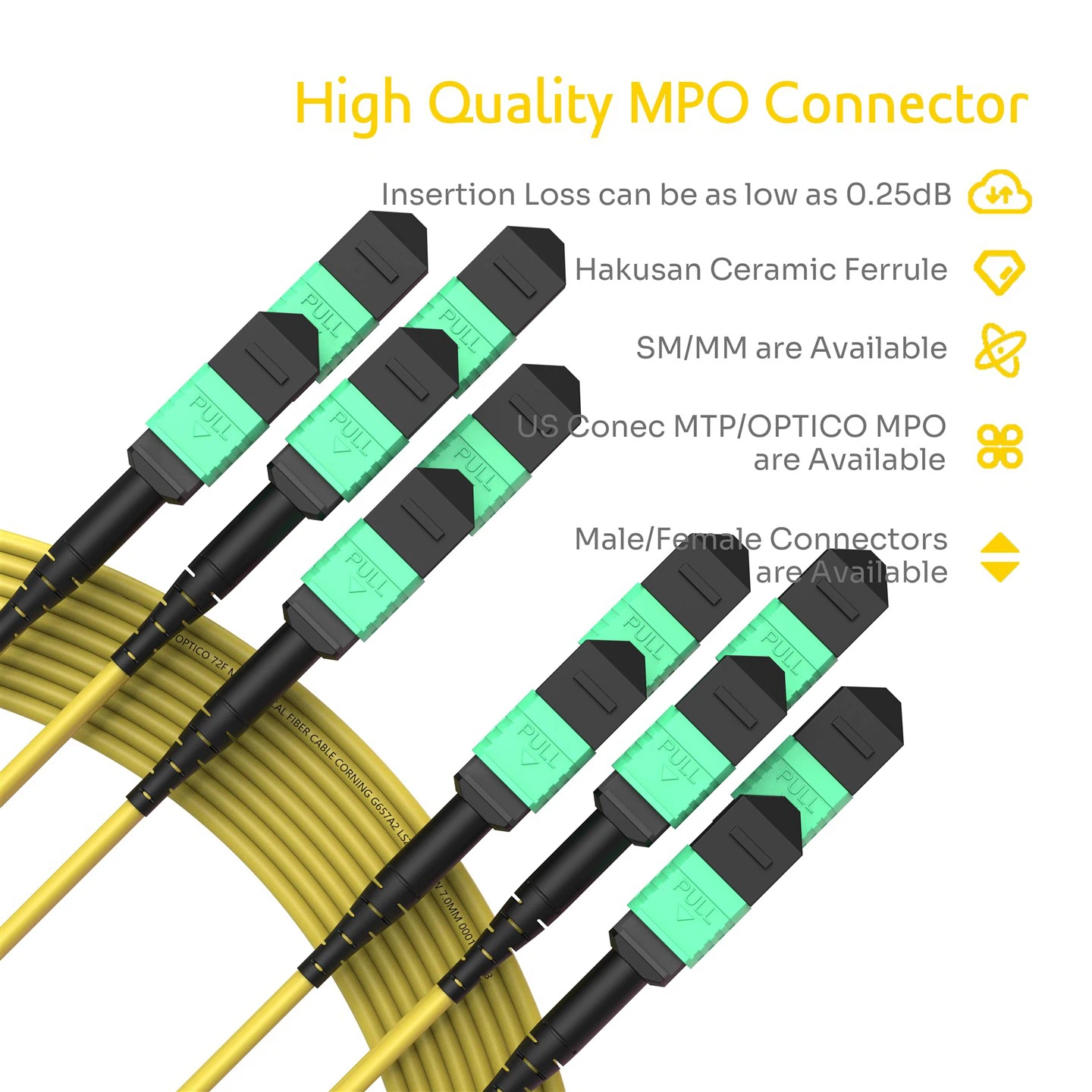

6M 72F MTP OS2 Patchcord emerges as a cutting-edge solution tailored to meet the evolving demands of high-density network architectures.
6M 72F MTP OS2 Patchcord equipped with a flexible push-pull design, bending-insensitive optical fiber, and ultra-low insertion loss connectors, is positioned as the ideal choice for applications spanning fast Ethernet, fiber channel, and 40G/100G networks.
In order to adapt to different application scenarios, 6M 72F MTP OS2 Patchcord is available in a variety of outer jacket materials such as LSZH/OFNP/OFNR, which are flame retardant and have a service life of up to 20 years.
Product Specifications
| Connector A | 6×MTP(female) | Connector B | 6×MTP (female) |
| Fiber Type | 9/125μm SM | Wavelength | 1310/1550nm |
| Insertion Loss(min.) | ≤0.25dB | Return Loss | ≥60dB |
| Outer Diameter | 3.0mm | Outer Sheath | LSZH |
| Minimum Bending Radius | 10mm | Fiber Level | G652D |
| Tensile Load | 100N | Long-term Tensile Load | 50N |
| Storage Temperature | -40 ~ 85°C | Operating Temperature | -10~70℃ |
Product Features
With an ultra-low insertion loss of just 0.25dB, the 6M 72F MTP OS2 Patchcord ensures exceptional signal integrity, contributing to optimal network performance. This low insertion loss of MTP breakout cable is vital in minimizing signal attenuation and enhancing the overall efficiency of data transmission across networks.
Before delivery, MTP breakout cable undergoes a rigorous 3D, end-face, and IL/RL test to guarantee flawless end faces, adherence to insertion loss standards, and superior return loss. This commitment to quality aligns with telecom standards.
The push-pull mechanism allows for easy insertion and extraction of MTP breakout cable connectors. This user-friendly design eliminates the need for excessive force during installation or removal, reducing the risk of connector damage and ensuring a smooth process.
MTP breakout cable boasts a small outer diameter of 3.0mm(standard), optimizing cable tray fill ratios and promoting improved airflow within the network infrastructure. Additionally, the bend-improved fiber allows for tighter cable bends, minimizing the risk of downtime due to pinched or bent cables.
Our Brand Confidence Comes From A Strong Production Team
Applications
Network Interconnection
Network Expansion
100% Strictly Tested Before Delivery
IL/RL test
3D Test
MPO Polarity Test
Certificates
CE
CPR
ISO
RoHS
Full Ranges Of Reliability Tests From Third-party Lab
Coupling Test
Drop Test
Durability Test
High-Constant Temperature and Humidity Test
High-Low Temperature Test
Loss Test
Micro Cross Section Inspection Test
Resistant to Repeated Bending Test
Single Vertical Burning Test
Temperature Change Test
UV Test
Purchase Guide
Male or Female
The Polarity
| 1 | A |
| 2 | B |
| 3 | C |
The Color
The Diameter Of Cable
| 1 | 3.0mm |
| 2 | ... |
| 3 | Custom |
Outer sheath material
| 1 | OFNR |
| 2 | OFNP |
| 3 | LSZH |
How We Can Stand By You
All 6M 72F MTP OS2 Patchcord are strictly tested before leaving the factory to ensure that the end faces are spotless, and the insertion loss and return loss are in compliance with the telecom standard.
If interested,welcome to consult!
FAQ
Q: Can the patchcord be used for high-speed data transmission?
Q: Does OPTICO offer additional options and combinations for this patchcord?
Q: Is the outer sheath of the patchcord LSZH?
Hot Tags: 6m 72f mtp os2 patchcord, China, manufacturers, suppliers, factory, wholesale, customized, om2 mtp patch cord, mpo mtp cable, 12 fiber mpo cable, 12f mpo fiber patch cord, 6M 72F MTP OS2 Patchcord, 12 fiber multimode cable
| Connector A | 6×MTP(female) | Connector B | 6×MTP (female) |
| Fiber Type | 9/125μm SM | Wavelength | 1310/1550nm |
| Insertion Loss(min) | ≤0.25dB | Return Loss | ≥60dB |
| Outer Diameter | 3.0mm | Outer Sheath | LSZH |
| Minimum Bending Radius | 10mm | Fiber Level | G652D |
| Tensile Load | 100N | Long-term Tensile Load | 50N |
| Storage Temperature | -40 ~ 85°C | Operating Temperature | -10~70℃ |
