Product Profile

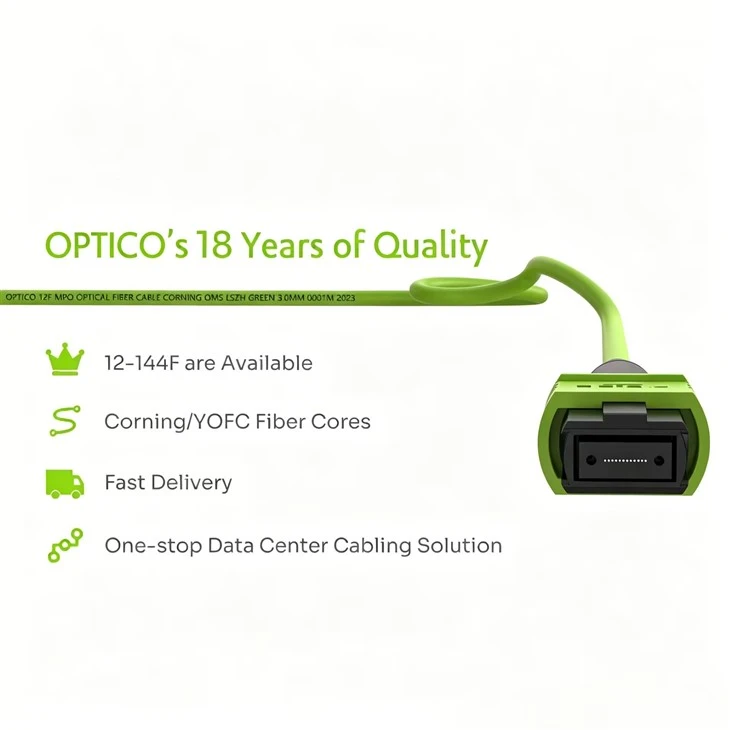

- This 12F MPO to LC Breakout Cable is specifically designed for high-density cabling scenarios in data centers. The MPO to LC branch cable can flexibly fan out a single MPO backbone link into six independent LC full-duplex optical paths, perfectly adapting to 40G/100G high-speed interconnects and 10G/25G port expansion applications. It effectively simplifies rack cabling and reduces cable clutter and redundancy, making it an ideal choice for TOR, EOR data center architectures and SAN storage networking.
- The 12F MPO to LC Breakout Cable uses bend-insensitive fiber and supports multiple precision end-face polishing processes such as PC/UPC/APC, possessing excellent optical performance with low insertion loss and high return loss. Simultaneously, it is compatible with OS2 single-mode and OM3/OM4 multimode fiber specifications, with customizable polarity and cable length, adapting to mainstream optical modules and distribution equipment on the market, supporting plug-and-play deployment, and balancing ease of construction with long-term stable and reliable operation.
Product specifications
| Physical Properties | Parameter | ||
| Fiber Count | 12 Fibers / Custom | ||
| Fiber Mode | SM(OS2)/MM(OM3/OM4/OM5) | ||
| Connector Type | Connector A:MPO Female/Male | ||
| Connector B: LC/SC/FC/ST | |||
| Polarity | Type A/B/C | ||
| Cable Jacket | PVC/LSZH/OFNP | ||
| Jacket Colour | Yellow/Aqua/Magenta/Lime Green/ Custom | ||
| Cable Diameter(mm) | 3 | ||
| Minimum Bend Radius | 7.5 | ||
| Fiber and Boot Length | Customizable | ||
| Optical Properties | Parameter | ||
| Insertion Loss(dB) | Standard Loss | Low Loss | Ultra Low Loss |
| ≤0.7 | SM ≤0.35, MM ≤0.5 | ≤0.25 | |
| Return Loss(dB) | SM ≥ 55(UPC),SM ≥ 65(APC), MM ≥ 35 | ||
| Wavelength(nm) | SM 1310/1550, MM 850/1300 | ||
| Tensile Strength(N) | Long Term | Short Term | |
| 70N | 220N | ||
| Operating Temperature(°C) | -20 ~ +70 | ||
| Storage Temperature(°C) | -40 ~ +85 | ||
Product Features
 |
Standard Architecture Compatibility & Smooth Network Upgrade
Compatible with mainstream 40G/100G parallel optical transmission architectures, it enables seamless connection between backbone links and access ports, allowing network bandwidth iteration and expansion without modifying the existing cabling system.
|
 |
Premium Material & Durable Plug-and-Play Performance
Adopts high-precision ceramic ferrules and precision-molded connectors for accurate alignment and high mating cycles. It maintains stable optical performance without attenuation or loosening, ideal for frequent maintenance and plugging in data centers.
|
 |
Multiple Flame-Retardant Jackets for Wide Application
Available with LSZH, OFNR and other flame-retardant jacket options, featuring low smoke, fire resistance and environmental friendliness. It meets laying requirements for data centers, building cabling and enclosed cabinet environments.
|
 |
Customizable Polarity & Wiring Sequence for Flexible Deployment
Supports Type A/B polarity and standard wiring sequence customization. It is fully compatible with mainstream patch panels, optical transceivers and switch ports, simplifying on-site installation and later maintenance without extra adapters.
|
Product Applications
High Density Data Center
High Density Data Center
Optical Module Connection
100% Strictly Tested Before Delivery
Equipped with professional testing instruments, standardized testing procedures, and experienced testing personnel,
we can meet the various testing needs of our entire product line.
IL/RL test
3D test
Temperature test
Custom Polish, Zero Signal Distortion
PC
End Face
Adopting the early spherical polishing technology to achieve basic physical contact. It features return loss ≥ 30 dB with cost advantages, ideal for low-speed and non-critical general links.
UPC
End Face
Adopts upgraded spherical polishing with an ultra-smooth end face. It delivers return loss ≥ 50 dB, low insertion loss and excellent consistency, serving as the mainstream option for data center and enterprise cabling.
APC
End Face
Designed with 8° angled polishing to divert reflected light away from the fiber path. It achieves return loss ≥ 60 dB, effectively minimizing signal distortion and perfectly suiting high-speed and high-sensitivity transceiver applications.
Production Drawing
OPTICO boasts a professional and highly experienced engineering team, offering full-customization service tailored to your exact project requirements.We can customize product drawings, labels, cable colors, connector types, fiber counts and a full range of special specifications to perfectly match your personalized application needs.
We sincerely look forward to discussing cooperation with you and creating exclusive tailor-made fiber optic solutions for your business.
Certificates
CE
CPR
ISO
RoHS
Ordering Process
If you are interested in our products, please send an inquiry email to Sales@fiberopticom.com. We recommend attaching product reference images or relevant web links to your email to help the OPTICO sales team quickly and accurately identify your purchasing needs.
OPTICO professional sales specialist will contact you within 24 hours to provide you with detailed product information and professional consultation services.
Both parties can then further communicate to confirm customization parameters, process standards, and various production specifications.
Based on your purchase quantity, customization specifications, and actual needs, we will provide you with a precise formal quotation.
Once you confirm the quotation is correct and complete payment, OPTICO will immediately schedule production and initiate the entire production and delivery process.
